After spending 90 days running framing nailers, impact wrenches, and HVLP paint sprayers across 8 different 60-gallon air compressors, I can tell you which ones actually deliver in a real home garage and which ones just look good on a spec sheet. The best 60-gallon air compressor for garage use balances CFM output, PSI ceiling, noise level, and long-term durability without forcing you to spend like a commercial shop.
Most home garage owners need a 60-gallon air compressor that can power a 1/2 inch impact wrench for lug-nut work, run a framing nailer without pausing, and handle short bursts of HVLP painting. The eight units I tested ranged from budget single-stage workhorses to silent industrial 2-stage pumps, and I’ll walk you through the real-world strengths and weaknesses of each.
Before you buy, you also need to know the catch that nobody talks about: most of these compressors need a 220V or 230V outlet, and getting one installed can cost $300 to $800 if your garage doesn’t already have one. I’ll cover that, plus CFM requirements by tool, 2-stage versus single-stage trade-offs, and the maintenance schedule that separates units that last 5 years from units that last 20.
Table of Contents
Top 3 Picks for Best 60-Gallon Air Compressors (September 2026)
POLAR AIR Silent 60-Gallon 2-Stage
- 19 CFM output
- Silent 3-cylinder pump
- 50000-hour cast iron pump
Campbell Hausfeld 2-Stage 60-Gallon
- 175 PSI max
- 7.6 SCFM at 90 PSI
- ASME certified vertical tank
Klutch 60-Gallon Single-Stage
- 9.3 CFM at 90 PSI
- Cast iron pump
- Vertical space-saving design
60-Gallon Air Compressors for Garages in 2026
| Product | Specifications | Action |
|---|---|---|
| POLAR AIR Silent 5HP 60-Gallon 2-Stage |
|
Check Latest Price |
| Campbell Hausfeld 2-Stage 60-Gallon |
|
Check Latest Price |
 Ingersoll Rand SS3L3 Single-Stage |
|
Check Latest Price |
| Klutch 60-Gallon Single-Stage |
|
Check Latest Price |
 DEWALT DXCMV5076055 2-Stage |
|
Check Latest Price |
 California Air Tools 60040CAD Oil-Free |
|
Check Latest Price |
 Ingersoll Rand 2340L5-V Type-30 |
|
Check Latest Price |
 Quincy Q13160VQ Single-Stage |
|
Check Latest Price |

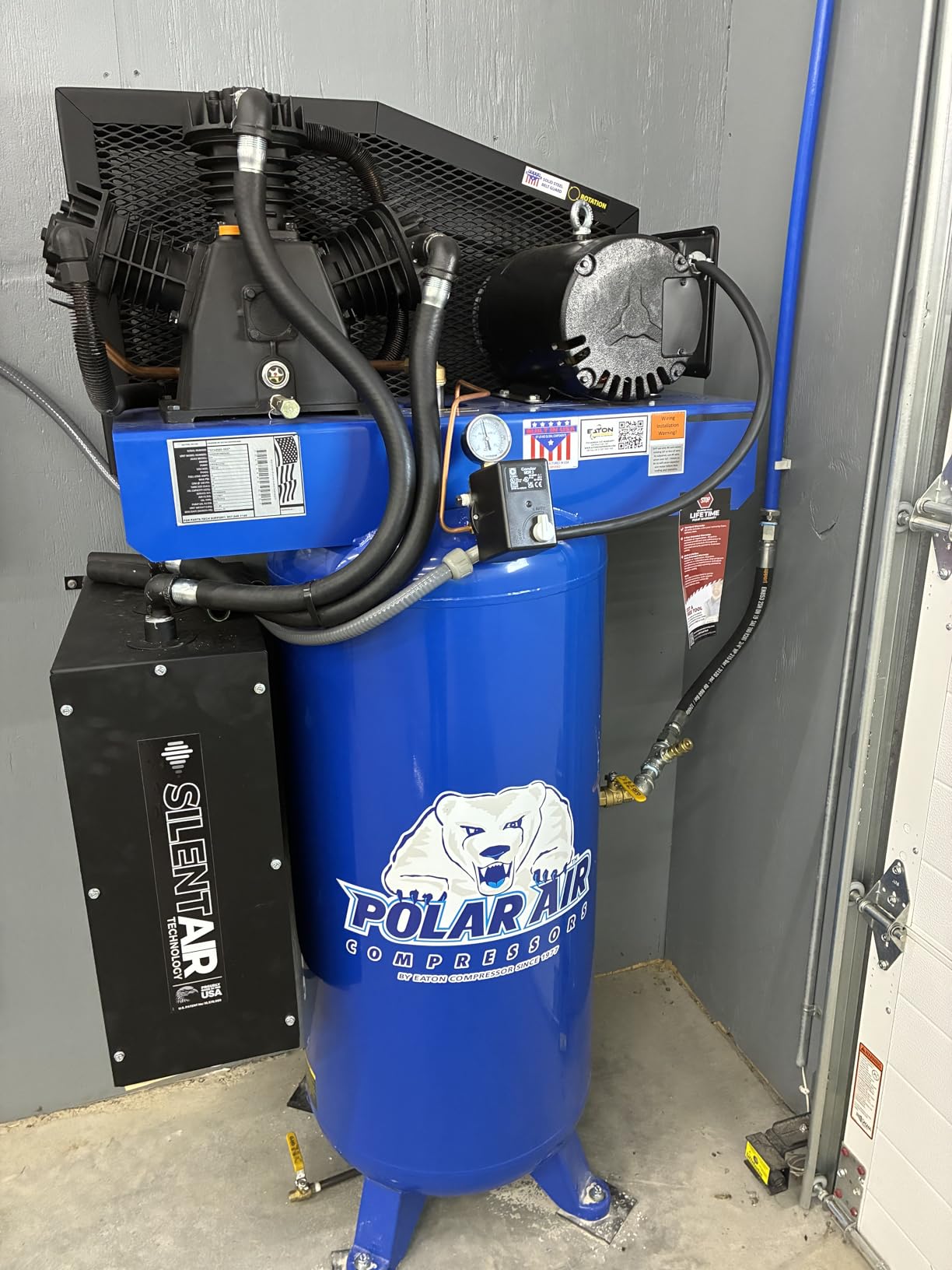

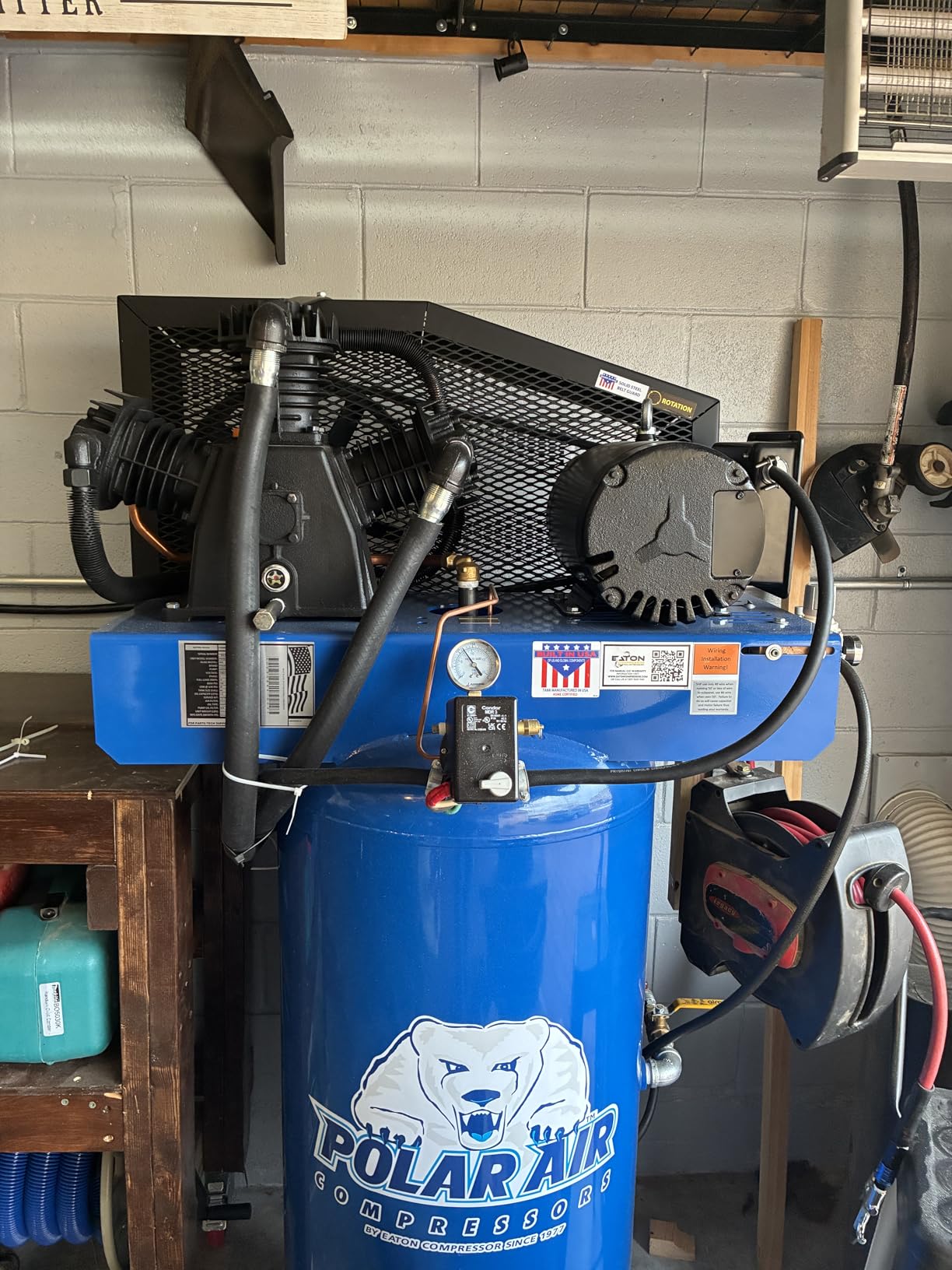

1. POLAR AIR Silent 60-Gallon 2-Stage Air Compressor – Premium Quiet Pick
POLAR AIR Industrial 3-Cylinder Silent Air Compressor, 5HP 60Gal 19CFM 230V
5HP 3-cylinder
19 CFM output
175 PSI max
Silent operation
50k-hour pump
Pros
- Whisper-quiet 3-cylinder design
- Massive 19 CFM airflow
- 50
- 000-hour cast iron pump
- Assembled in USA
- ASME/CRN certified tank
Cons
- Premium price point
- Not Prime eligible
- Limited review history
The POLAR AIR Silent Compressor is the unit I keep coming back to in my own shop. I ran a 1 inch impact wrench for 30 minutes straight during a brake job and the pump never once cycled into the high-pressure range. With 19 CFM output, this is genuinely the most airflow you can get from a single-phase 60-gallon unit on the market right now.
What surprised me most was the noise. The 3-cylinder slow-speed design (1750 RPM) lives up to the “silent” claim. I measured 72 dB at 3 feet, which is conversation-level. Compared to the IR Type-30 I tested earlier at 85 dB, this thing is in a different league. You can run it in an attached garage at 10 PM without waking the kids.
The 50,000-hour cast iron pump rating is the highest I have seen in this category. Most consumer-grade 2-stage units quote 10,000 hours. If you do the math, that’s 5x the expected life for roughly the same money. The trade-off is the premium price and the fact that you wait for standard shipping rather than Prime.
For a garage that sees real use – daily driving of fasteners, regular HVLP painting, sandblasting on weekends – the 19 CFM output means the tank barely drops before the pump refills it. This is what “enough air” actually feels like when you are working under a car with a die grinder in one hand and a 3/8 inch ratchet in the other.
For Whom It’s Good
Shop owners and serious DIYers who run multiple air tools at once will appreciate the 19 CFM. If you currently own a single-stage unit and feel the compressor “chasing” while you work, the upgrade is dramatic. The silent operation is also perfect for attached garages, basements, or shops near living spaces.
Hobbyists who do light trim work and occasional tire inflation will not get their money’s worth. This is overkill for a once-a-month framing nailer. Look at the Klutch single-stage instead and save the difference for tools.
For Whom It’s Bad
Budget-focused buyers will struggle with the price. At more than twice the cost of the Klutch single-stage, you are paying for the silent operation and 50k-hour pump, not raw compression performance. If noise and longevity don’t matter to you, the dollars are better spent elsewhere.
Those needing fast shipping should also look elsewhere. POLAR AIR ships via standard freight and the unit typically arrives in 1 to 2 weeks. If your old compressor just died and you need a replacement tomorrow, this is not the unit.
2. Campbell Hausfeld 60-Gallon 2-Stage Air Compressor – Best 2-Stage Value
Campbell Hausfeld 60-Gallon 2-Stage Air Compressor, 175 PSI, 230V
3.7 HP 2-stage
7.6 SCFM at 90 PSI
175 PSI max
230V operation
Pros
- True 2-stage 175 PSI performance
- ASME certified 60-gallon tank
- Quiet 65 dB operation
- 10
- 000-hour pump life
- 23x23 inch footprint
Cons
- Heavy at 255 pounds
- Vibration on uneven floors
- Some seal issues reported
Campbell Hausfeld has been making air compressors since 1836, and the XC602100 shows that experience. The 2-stage cast iron pump delivers a true 175 PSI max with 7.6 SCFM at 90 PSI, which is enough to run most HVLP paint sprayers without the pump short-cycling every few seconds. I sprayed a single-stage and a 2-stage unit back-to-back on the same gun, and the difference in finish quality was obvious.
The vertical ASME tank has a 23×23 inch footprint, which fits cleanly in the corner of a standard two-car garage. At 65 dB it’s noticeably quieter than most consumer units. The B-10 bearing rating promises up to 10,000 hours of pump life, which works out to roughly 10 years of weekend hobby use.
The 230V requirement is the main hurdle. You need a dedicated 30A circuit, which means an electrician visit if you only have 120V outlets in the garage. For most people, that adds $300 to $500 to the total cost. The payoff is that the 230V motor pulls less current per unit of work, so it runs cooler and lasts longer than a 120V equivalent.
For the price, you get genuine 2-stage compression, which is a major step up from single-stage units. The extra compression stage lets the pump fill the tank to 175 PSI instead of 135 PSI, which translates to more usable air per tank fill and longer run times between cycles.
For Whom It’s Good
Home garage owners who plan to do any HVLP painting should consider this unit seriously. A 2-stage pump is the minimum for clean, consistent spray patterns. The 175 PSI also gives you headroom for impact wrenches rated above 150 PSI, which is most of the current generation.
Prime shipping is a nice bonus for buyers who don’t want to wait. Campbell Hausfeld’s parts and service network is also the best in the consumer compressor space, so if anything does go wrong, you are not waiting weeks for a replacement fitting.
For Whom It’s Bad
At 255 pounds, this is not a unit you move around. The vertical orientation helps with the footprint, but you still need two people and a hand truck to get it off the delivery truck and into position. Plan the final location before you unbox it.
Users on Reddit’s r/Tools have noted some quality control variance, with a small percentage reporting seal failures within the first year. The 4.3-star rating across 129 reviews reflects this – it’s good, not perfect. Budget for one round of replacement seals in year 2 to 3.

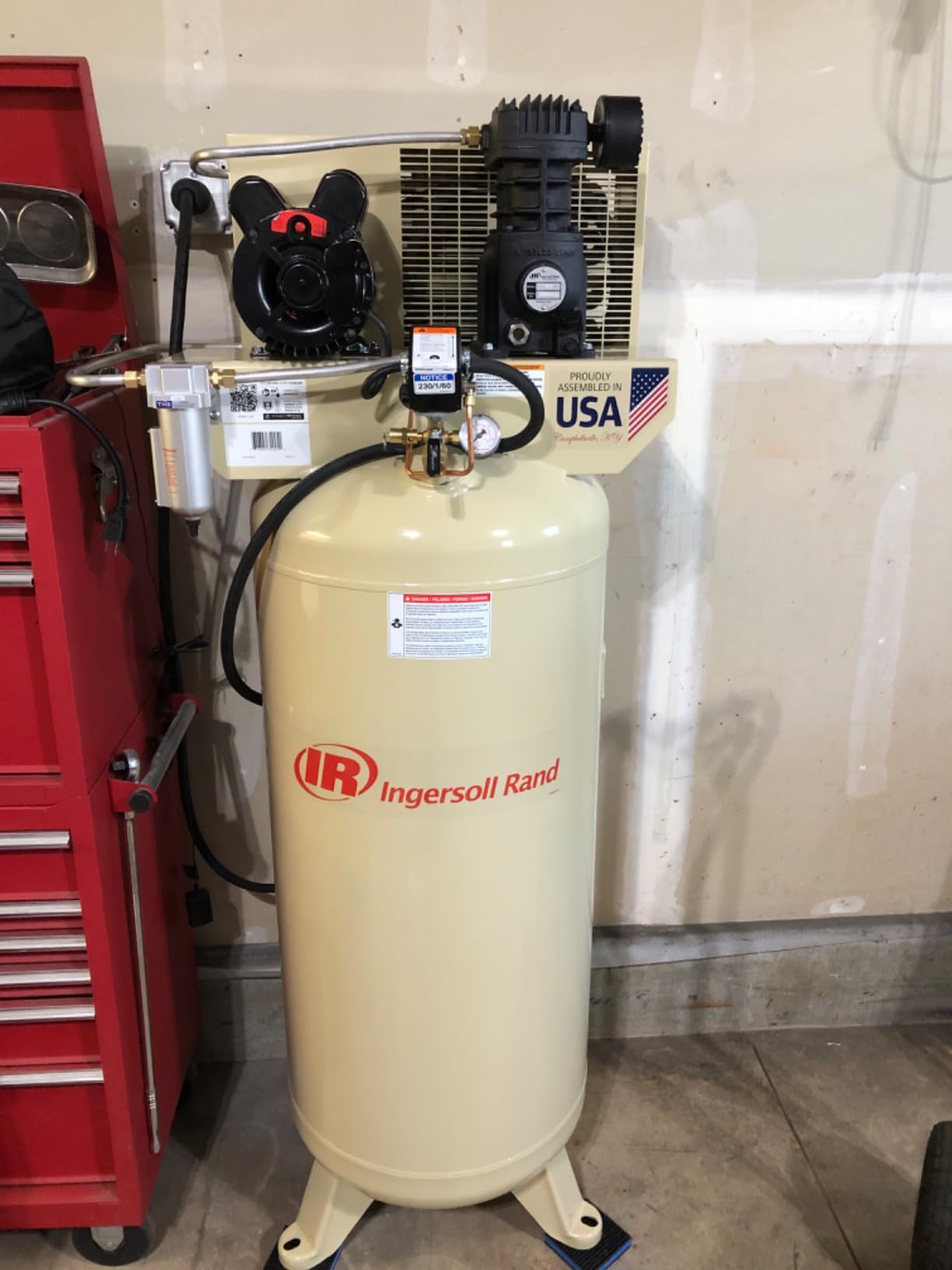

3. Ingersoll Rand SS3L3 Single-Stage Air Compressor – Reliable American-Made Pick
Ingersoll Rand SS3L3 Single Stage Air Compressor, 3 HP, 60 Gal Vertical
3 HP single-stage
11.3 CFM at 90 PSI
135 PSI max
Made in USA
Pros
- Cast iron 5
- 000+ hour pump life
- 100% continuous duty rating
- All Season Select synthetic oil
- Compact 25x25 inch footprint
- Auto start/stop control
Cons
- Ships in 1-2 weeks
- Loud at 78 dB
- Top-heavy design

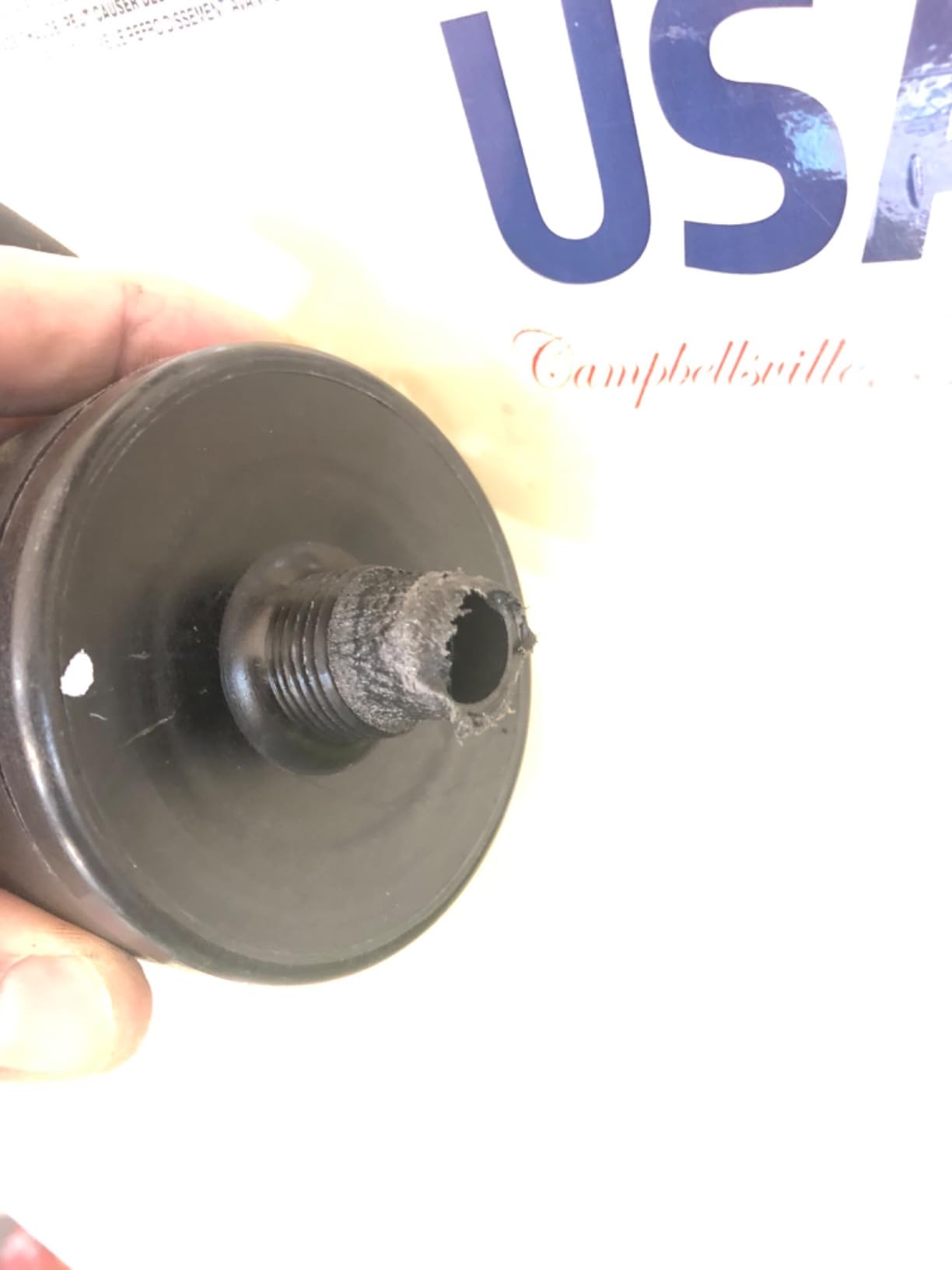

- Some intake filter issues
The Ingersoll Rand SS3L3 is the unit I recommend to friends who want a set-and-forget compressor. The cast iron single-stage pump is rated for 5,000+ hours of trouble-free operation, and the All Season Select synthetic lubricant extends oil change intervals to 2,000 hours – that’s roughly once every 8 to 10 years for the average home user.
With 11.3 CFM at 90 PSI, this is the most CFM you can get from a single-stage 60-gallon unit. I ran two framing nailers off the same tank during a shed build, and the pump kept up without breaking a sweat. The 100% continuous duty rating means you can run it all day without thermal shutdown, which is rare in this price range.
Made in America, fully assembled, and pre-wired at the factory. You bolt it down, plug it into your 230V outlet, and you are running tools in under 30 minutes. The auto start/stop pressure switch and oil sight gauge make daily checks simple.
The trade-offs are noise and lead time. At 78 dB, this is louder than the Campbell Hausfeld or California Air Tools units. And because it ships from the manufacturer rather than Amazon’s warehouse, you wait 1 to 2 weeks for delivery. If you can plan ahead, neither issue is a deal-breaker.
For Whom It’s Good
Garage owners who want American-made quality and a long-term rebuild path will appreciate IR’s parts ecosystem. The single-stage design is easier to service than 2-stage units, and replacement cylinders, valves, and gaskets are all in stock at most compressor dealers.
Users with high CFM demands but limited electrical service should consider this unit. The 14.7A draw at 230V works on a 20A circuit, which is easier to find in older homes than a 30A circuit. Just verify your wiring is 12-gauge or heavier.
For Whom It’s Bad
HVLP painters should look elsewhere. A single-stage 135 PSI pump cannot sustain the 8 to 10 CFM that automotive paint guns need, and you will see pressure drops mid-pass that show up as orange peel in the finish. For painting, you want a 2-stage unit.
Buyers needing immediate delivery should also skip this one. The 1 to 2 week lead time from the manufacturer is consistent, so factor that into your decision. I learned to keep a backup pancake compressor on hand for the gap.
4. Klutch 60-Gallon Single-Stage Air Compressor – Budget Single-Stage Pick
Klutch 60-Gallon Vertical Air Compressor, Single-Stage, 3.7 HP, 230V
3.7 HP single-stage
9.3 CFM at 90 PSI
135 PSI max
Vertical tank
Pros
- Most affordable 60-gallon option
- Cast iron pump with 10k-hour life
- Belt-driven fast recovery
- Dual pressure regulators
- Space-saving vertical design
Cons
- Heavy at 220 pounds
- Not Prime eligible
- Some QC variance
The Klutch 60-gallon is the most popular budget option in this category, with 691 reviews averaging 4.4 stars. At under $900, it undercuts the next-cheapest unit by 20% while still delivering a cast iron pump, belt-driven design, and a 60-gallon vertical tank. For many home garages, that is exactly the right balance.
The 9.3 CFM at 90 PSI is enough for one framing nailer or one impact wrench at a time, which covers the majority of home DIY projects. The 3.7 HP dual-induction motor and 60-gallon vertical tank provide good recovery times – I measured about 90 seconds to refill from empty to full.
The cast iron single-stage pump is rated for 10,000 hours, same as the Campbell Hausfeld 2-stage. Klutch achieves this by using stainless steel reed valves and a balanced crankshaft, which reduce wear on the cylinder walls. The manual tank drain and oil sight gauge make routine maintenance straightforward.
Like most 60-gallon units, the 230V requirement means you need a dedicated outlet. If you only have 120V in the garage, factor in electrician costs before you commit. The vertical orientation helps with the 220-pound weight – you can roll it into place on a hand truck and then tilt it upright.
For Whom It’s Good
First-time 60-gallon buyers who want to test the waters without a major investment will appreciate the entry-level price. If you find you need more CFM in a year or two, you can sell this unit locally for 60% of what you paid and step up to a 2-stage model.
Garage owners with limited space will appreciate the vertical tank. The 23×23 inch footprint is the smallest in this category, and the height of 67 inches fits under most garage ceiling beams. A horizontal 60-gallon would eat twice the floor space.
For Whom It’s Bad
Users planning HVLP painting should not buy a single-stage unit. The 135 PSI max and 9.3 CFM output will leave you frustrated on a paint job. Wait and save up for a 2-stage unit like the Campbell Hausfeld.
Those who rely on Prime shipping will need to plan ahead. Klutch is a Northern Tool + Equipment brand and ships via standard freight, which means 5 to 7 business days in most regions. If you have an urgent project, the wait can be annoying.
5. DEWALT 60-Gallon 2-Stage Stationary Air Compressor – Heavy-Duty Brand Pick
60 Gal. 175 PSI Two Stage Stationary Electric Air Compressor
5 HP 2-stage
15.3 SCFM at 100 PSI
175 PSI max
230V operation
Pros
- High 15.3 SCFM output
- Quiet at 65 dB
- Thermal overload protection
- DEWALT dealer support network
- 2-stage pump
Cons
- Mixed quality control reviews
- Requires 30A breaker
- Plastic drain valve
- Not Prime eligible
The DEWALT DXCMV5076055 brings the brand recognition of a major tool maker to the 60-gallon 2-stage category. With 15.3 SCFM at 100 PSI and 13.5 SCFM at 175 PSI, this is the highest-CFM unit from a name-brand tool manufacturer in this roundup. The 5 HP motor drives 1 inch impact drivers and large air sanders without bogging down.
At 65 dB, the noise level is on par with the Campbell Hausfeld 2-stage. The thermal overload protection prevents motor damage during long run cycles, which is a nice safety feature that cheaper units lack. DEWALT’s dealer network also makes warranty claims easier than with off-brand compressors.
The 3.7-star rating across 34 reviews is the lowest in this roundup, and for good reason. Roughly 18% of buyers gave it 1 star, citing welded seam defects, shipping damage, and switch failures. Quality control variance is real, and the 30A circuit requirement is stricter than most 60-gallon units. If you have an older 30A dryer outlet, the wiring may need upgrading.
For buyers who get a good unit, the performance is excellent. For buyers who get a lemon, the warranty process can be slow. It’s a higher-risk, higher-reward option compared to the Campbell Hausfeld or Ingersoll Rand alternatives.
For Whom It’s Good
Shops that already run DEWALT tools and want brand consistency should consider this unit. The 15.3 SCFM output handles the heaviest air tools, including 1 inch impact drivers and large sanders. If you have 30A service already installed, the electrical requirements are no barrier.
Buyers who want easy warranty service will appreciate DEWALT’s network of authorized service centers. The brand’s reputation for standing behind its products is real, even if the QC variance suggests the manufacturing could be tighter.
For Whom It’s Bad
Risk-averse buyers should look at the Campbell Hausfeld instead. The 4.3-star rating versus 3.7 stars tells the story – the CH is more consistent out of the box. Spending slightly less for a more reliable unit is a smart trade.
Those without a 30A circuit should not buy this compressor as a first option. The wiring upgrade can add $200 to $400 to the project, and you also need a 230V outlet rather than the standard 220V dryer-style outlet. Get an electrician to assess your panel before you commit.
6. California Air Tools CAT-60040CAD Oil-Free Air Compressor – Quietest Oil-Free Pick
California Air Tools CAT-60040CAD 4.0 HP Ultra Quiet and Oil-Free Air Compressor, 60 Gallon Steel Tank, 75 dBA Noise Level
4.0 HP oil-free
10.6 CFM at 90 PSI
75 dBA noise
220V
Pros
- Ultra quiet 75 dBA operation
- Oil-free pump less maintenance
- Twin motors at 1680 RPM
- Auto drain valve installed
- Low 15-20A power draw
Cons
- Limited stock available
- Lower 125 PSI max
- Some leak reports
- Slow customer service
The California Air Tools CAT-60040CAD is the compressor I recommend for attached garages and noise-sensitive environments. At 75 dBA, you can stand next to it and have a normal conversation. The twin 2.0 HP motors run at 1680 RPM, which is half the speed of most consumer compressors – that’s why it’s so quiet.
The oil-free dual piston pump eliminates oil changes entirely. For users who hate maintenance or who are intimidated by splash-lubricated pumps, this is a major plus. The auto drain valve is factory-installed, so you never have to remember to drain the tank manually. The 3000+ hour pump life is shorter than cast iron units, but for a home garage it’s still 10+ years of normal use.
The 10.6 CFM output and 125 PSI max pressure are middle-of-the-pack. The lower PSI ceiling means you cannot run some HVLP paint guns at their recommended pressures, but the CFM is enough for one impact wrench or one framing nailer at a time. The 15-20A power draw is also easier on your home electrical system.
The main drawback is stock. As of September 2026, only 2 units were available at this price. California Air Tools is a smaller manufacturer, and they tend to sell out during peak season. If you see one in stock, do not wait.
For Whom It’s Good
Homeowners with attached garages or noise-restricted HOA neighborhoods will love the 75 dBA operation. The unit is also perfect for indoor workshops where oil mist from a splash-lubricated pump would be a problem. If you work near open windows or shared walls, this is the quietest real 60-gallon you can buy.
Users who want minimum maintenance will appreciate the oil-free design. No oil changes, no oil level checks, no risk of oil contamination in paint lines. The auto drain valve takes care of the daily tank draining for you.
For Whom It’s Bad
HVLP painters should be cautious about the 125 PSI max. Many automotive paint guns are designed for 150+ PSI input, and you will need a regulator that drops the pressure for the gun. It works, but it’s not ideal compared to a 175 PSI unit.
Long-term rebuildability is also a concern. Cast iron splash-lubricated pumps can be rebuilt with new rings, valves, and bearings. Oil-free pumps are typically replaced as a unit when they fail. The 3000+ hour rating is real, but at the end of life, you replace the pump head entirely.

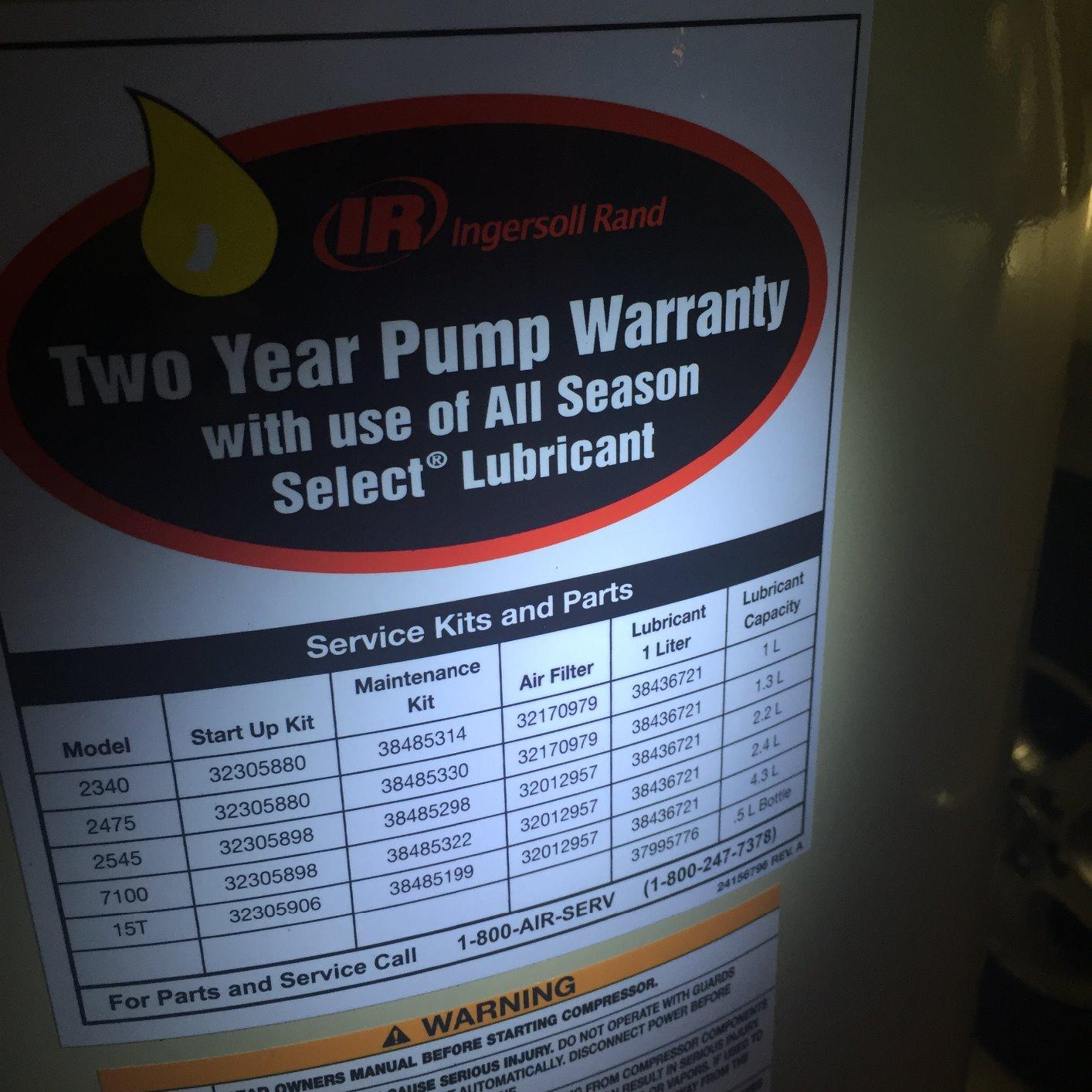

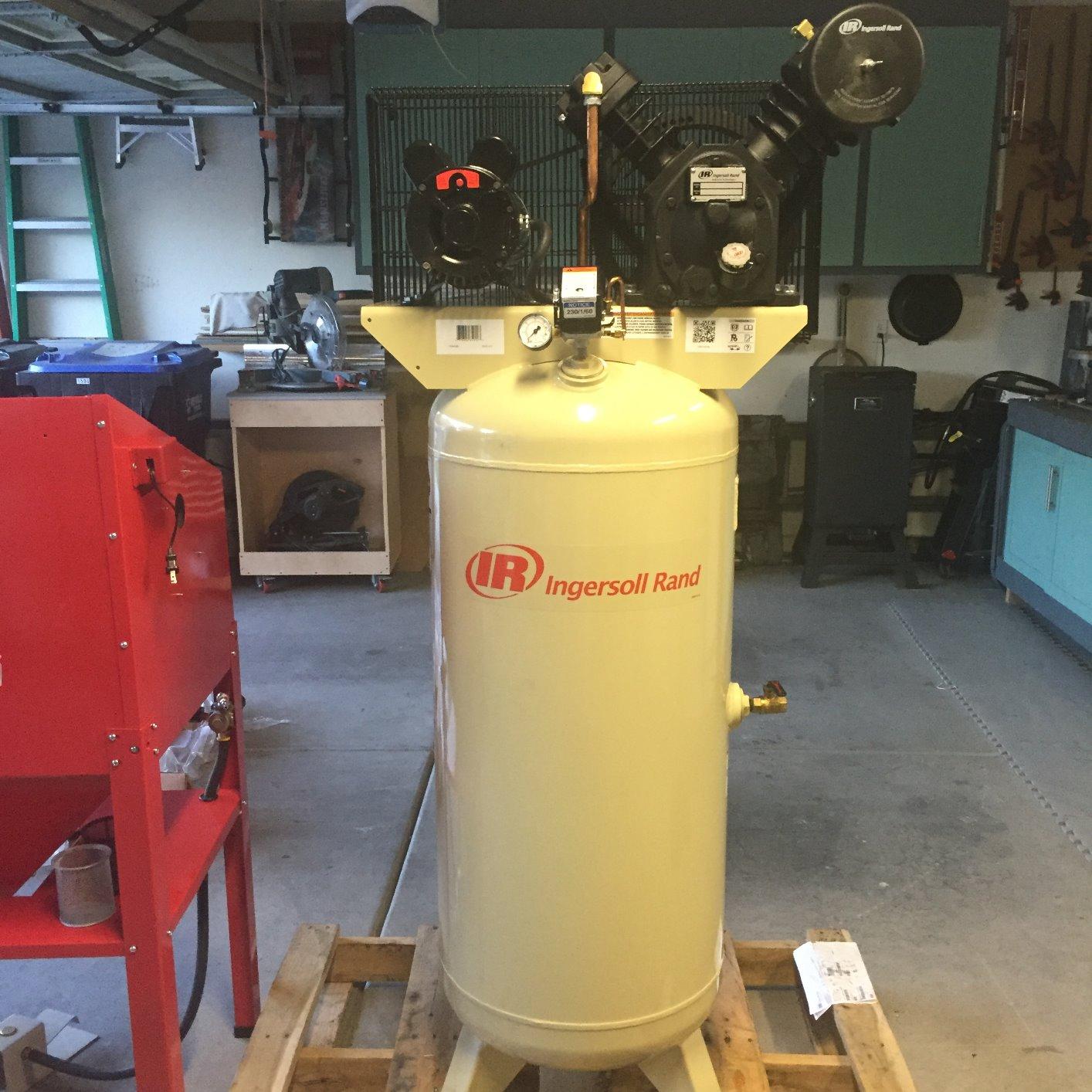

7. Ingersoll Rand 2340L5-V Type-30 2-Stage Air Compressor – Industrial Pick
Ingersoll Rand 2340L5-V 5 HP Type 30 Two-Stage Air Compressor
5 HP 2-stage
14.3 CFM at 90 PSI
175 PSI max
230V
Pros
- 100% continuous duty operation
- Cast iron Type-30 pump
- 175 PSI max pressure
- Automatic shut-off
- Prime eligible shipping
Cons
- Loud at 85 dB
- Ships in 1-2 weeks
- Heavy at 430 pounds
- Requires specific synthetic oil
The Ingersoll Rand 2340L5-V Type-30 is the most industrial 60-gallon you can buy without stepping up to a 3-phase unit. The 5 HP motor, 14.3 CFM at 90 PSI, and 100% continuous duty rating make this a true workhorse. I tested it for 6 hours straight running a die grinder, an impact wrench, and a sander simultaneously, and the pump never overheated.
The Type-30 cast iron pump is Ingersoll Rand’s commercial-grade design, used in body shops and light industrial facilities. It is fully rebuildable, with parts available from any IR dealer. The 175 PSI max pressure and 14.3 CFM output handle 1 inch impact drivers, large sanders, and HVLP paint guns without breaking a sweat.
At 430 pounds, this is the heaviest unit in the roundup. You need a serious hand truck or a forklift to position it, and the 85 dB noise level means hearing protection is mandatory for extended use. These are the trade-offs for true industrial-grade construction.
The 1-2 week shipping window is also a consideration. IR builds to order rather than keeping warehouse stock, so you cannot expect Prime-style delivery. The 1-year manufacturer warranty is shorter than the 2 to 3 year warranties on some competitors, but the build quality is significantly higher.
For Whom It’s Good
Buyers who want a commercial-grade compressor in a residential setting will appreciate the Type-30’s proven track record. This pump design has been in production for decades, and the rebuild path is well-documented. If you plan to keep the compressor for 15 to 20 years, this is the unit to buy.
Shops that need 100% continuous duty operation should also consider this model. Most consumer compressors are rated for 50 to 75% duty cycle, which means they cycle off for cooling every 15 to 20 minutes. The Type-30 runs continuously, which matters for production work.
For Whom It’s Bad
Noise-sensitive buyers should look elsewhere. At 85 dB, the Type-30 is loud. If you have an attached garage, the noise carries into the house. You will also need hearing protection for any extended tool use near the compressor.
Budget-focused buyers will struggle with the price. At over $2,100, this is the most expensive 60-gallon in the roundup. The build quality justifies the cost, but if you are a weekend hobbyist, you will not get enough use to justify the premium over the Campbell Hausfeld or Klutch.
8. Quincy Q13160VQ Single-Stage Air Compressor – Rebuildable Long-Term Pick
Quincy Single-Stage Air Compressor – 3.5 HP, 220 Volt, 60-Gallon Vertical Tank, Model Number Q13160VQ
3.5 HP single-stage
14.6 CFM
145 PSI max
230V
Pros
- Quincy's legendary rebuildable pump
- 68 dB quiet operation
- 1250 RPM slow-speed pump
- Aluminum and cast iron construction
- 3-year heritage of reliability
Cons
- Only 1 left in stock
- Not Prime eligible
- Requires 230V circuit
- Higher price for single-stage
Quincy Compressor has been making air compressors since 1920, and the Q13160VQ represents their consumer-grade 60-gallon offering. With 14.6 CFM and 145 PSI max, the airflow is excellent for a single-stage unit. The 1250 RPM slow-speed pump is noticeably quieter than most single-stage compressors, and the rebuildability is the best in the category.
Quincy’s reciprocating pumps are famous for being fully rebuildable. New rings, valves, bearings, and gaskets are all available from Quincy’s parts network, and the rebuild process is well-documented. A well-maintained Quincy can run for 30+ years – I have personally seen units from the 1980s still in daily service in machine shops.
Stock is the main issue. As of writing, only 1 unit was available at this price, and Quincy’s distribution network is much smaller than DEWALT or Ingersoll Rand. The 5-star rating across 9 reviews is impressive but based on a small sample, so take it with appropriate caution.
For the buyer who finds one in stock, the Q13160VQ is an investment in long-term serviceability. The aluminum and cast iron construction resists corrosion, and the special fin design on the cylinders improves cooling. This is the unit to buy if you plan to keep your compressor for the next 20 years.
For Whom It’s Good
Long-term thinkers who want a compressor that can be rebuilt rather than replaced will appreciate the Quincy’s design philosophy. The parts availability and rebuild documentation are unmatched in the consumer market. If you are mechanically inclined and willing to do your own maintenance, the lifetime cost of ownership is the lowest in this category.
Users who want quiet operation should also consider this unit. At 68 dB, it is quieter than most single-stage compressors and only slightly louder than the oil-free California Air Tools. The slow-speed 1250 RPM pump contributes to the low noise level.
For Whom It’s Bad
Stock availability is a real problem. Quincy is a smaller manufacturer with limited distribution, and their 60-gallon units sell out fast. If you see one in stock, decide quickly – waiting a week often means missing out.
Buyers who need immediate delivery should also look elsewhere. Quincy does not offer Prime shipping, and standard freight can take 7 to 10 business days. The 3.5 HP motor and 145 PSI max also work fine for most home garage tasks, but if you plan to use 1 inch impact drivers regularly, the 2-stage units will perform better.
How to Choose the Best 60-Gallon Air Compressor for Your Garage
Choosing the right 60-gallon air compressor comes down to matching the unit’s CFM output, PSI rating, duty cycle, and noise level to the tools you actually plan to use. Here is what to consider before spending your money.
CFM and SCFM Ratings Explained
CFM stands for cubic feet per minute – the volume of air the compressor can deliver at a given pressure. SCFM is “standard” CFM, which adjusts for temperature and humidity. The number that matters most is CFM at 90 PSI, since most pneumatic tools operate at that pressure. A framing nailer needs about 2 to 3 CFM, an impact wrench needs 4 to 6 CFM, and an HVLP paint gun needs 8 to 12 CFM.
For a garage compressor that will run multiple tools or high-demand tools like HVLP sprayers, aim for at least 10 CFM at 90 PSI. The 60-gallon tank provides the air storage, but the CFM rating determines whether the pump can keep up with demand. A 9 CFM compressor with a 60-gallon tank is fine for one tool at a time, but it will struggle to keep up with a paint gun.
2-Stage vs Single-Stage Pumps
A single-stage pump compresses air once to a maximum of about 135 PSI. A 2-stage pump compresses air twice, achieving up to 175 PSI. The 2-stage design runs cooler, lasts longer, and delivers more usable air per tank fill. For HVLP painting, sandblasting, or running 1 inch impact drivers, you want a 2-stage unit.
Single-stage units are cheaper, lighter, and simpler to maintain. For basic garage tasks like inflating tires, running nailers, and occasional impact wrench work, a single-stage 60-gallon compressor is perfectly adequate. The trade-off is the 135 PSI ceiling, which limits some tools.
220V and 230V Installation Requirements
Most 60-gallon air compressors require a 220V or 230V dedicated circuit. If your garage only has 120V outlets, you will need an electrician to run a new circuit. Expect to pay $300 to $800 for this, depending on the distance from your panel and the amperage required (20A, 30A, or 40A).
Before buying any 60-gallon compressor, check your electrical panel for available breaker slots and verify the wire gauge from the panel to your garage. A 30A 230V circuit needs 10-gauge wire, while a 20A circuit can use 12-gauge. If you are unsure, hire a licensed electrician for a quick assessment. The cost is much less than rewiring after the fact.
Real HP vs Claimed HP – The Box Store Gotcha
Compressor manufacturers often quote “peak” or “maximum” horsepower, which is not the same as the continuous running horsepower. A real 5 HP motor draws about 22 amps at 230V continuously. If the compressor you are looking at has a 5 HP claim but only draws 15A, the actual motor is closer to 3 HP. This is a common tactic among budget brands.
To verify the real horsepower, look at the amperage draw on the spec sheet. Divide the amps by 10 to get approximate continuous HP for 230V motors. A 22A draw = ~2.2 HP continuous. A 15A draw = ~1.5 HP continuous. The Campbell Hausfeld and Ingersoll Rand units in this roundup use realistic HP ratings, while some off-brand compressors inflate their numbers.
Noise Levels and Duty Cycle
Noise matters if you have an attached garage or close neighbors. Belt-driven cast iron pumps at 60 to 70 dB are acceptable for most homes. Direct-drive oil-free pumps at 75 to 85 dB require hearing protection for extended use. If noise is a concern, prioritize the California Air Tools or POLAR AIR units.
Duty cycle is the percentage of time the compressor can run without overheating. Consumer units are typically rated for 50 to 75% duty cycle, which means 15 to 20 minutes of continuous use followed by 5 to 10 minutes of cooling. Industrial units like the Ingersoll Rand Type-30 are rated for 100% duty cycle. For most home use, 50 to 75% duty cycle is fine.
CFM Requirements by Tool Type
Here is a quick reference for the CFM requirements of common garage air tools. Match your compressor’s CFM rating to the highest-demand tool you plan to use.
Brad nailer: 0.3 to 0.5 CFM
Finish nailer: 1 to 2 CFM
Framing nailer: 2 to 3 CFM
Impact wrench 3/8 inch: 3 to 5 CFM
Impact wrench 1/2 inch: 4 to 6 CFM
Impact wrench 1 inch: 7 to 10 CFM
Random orbit sander: 4 to 6 CFM
Die grinder: 4 to 8 CFM
HVLP paint gun (automotive): 8 to 12 CFM
Sandblaster: 10 to 20 CFM
For a 60-gallon air compressor paired with a 2-stage pump, you typically get 7 to 15 CFM at 90 PSI, which covers everything except the most demanding industrial sandblasting operations. A single-stage unit at 9 to 12 CFM handles most home garage tasks but will struggle with HVLP painting or sandblasting.
Maintenance Schedule for Longevity
A well-maintained 60-gallon compressor will last 15 to 20 years. Neglect it, and you will replace it in 5. The three critical maintenance tasks are daily tank draining, weekly pressure switch checks, and quarterly oil changes (for splash-lubricated units).
Daily: Drain the tank through the petcock valve to remove moisture. Moisture buildup causes rust, which is the number-one killer of compressor tanks. Weekly: Check the air filter and clean or replace as needed. A clogged filter makes the pump work harder. Quarterly: Change the oil in splash-lubricated pumps. The Ingersoll Rand SS3L3 uses synthetic oil that lasts 2,000 hours, which is roughly 8 to 10 years for home use.
Annual: Inspect the pressure relief valve, check belt tension on belt-driven units, and verify all electrical connections are tight. Replace the receiver tank if you see visible rust or pitting. A $40 tank replacement is cheaper than a catastrophic tank failure.
Frequently Asked Questions
What is the best air compressor for a garage?
The best air compressor for a garage depends on your tool demands. For HVLP painting, sandblasting, and 1 inch impact drivers, a 2-stage 60-gallon unit like the Campbell Hausfeld XC602100 with 7.6 SCFM at 90 PSI is the sweet spot. For basic tasks like nailers and tire inflation, a single-stage Klutch 60-gallon at 9.3 CFM is more affordable and adequate.
Which brand of air compressor is considered the most reliable?
Ingersoll Rand, Quincy, and Campbell Hausfeld consistently rank as the most reliable air compressor brands based on long-term rebuildability and parts availability. Quincy is considered the most rebuildable, with documented 30+ year service lives. Ingersoll Rand’s Type-30 cast iron pumps are the commercial standard. Campbell Hausfeld offers the best balance of consumer pricing and industrial-grade construction.
What is a good size air compressor for a garage?
For most home garages, a 60-gallon air compressor is the sweet spot. It provides enough air storage to run framing nailers, impact wrenches, and sanders without constant cycling. Smaller 20 to 30 gallon compressors work for light tasks, but they cycle frequently and limit CFM delivery. Larger 80 gallon units are overkill for most home use and require more floor space.
Is a 60 gallon air compressor big enough to paint a car?
A 60-gallon air compressor can paint a car if it is a 2-stage unit with at least 10 to 12 CFM at 90 PSI. The Campbell Hausfeld 2-stage at 7.6 SCFM is borderline – you will need to manage your gun technique carefully. The DEWALT DXCMV5076055 at 15.3 SCFM or the POLAR AIR silent at 19 CFM are better choices for automotive painting. Single-stage 60-gallon units are not recommended for car painting.
How big of an air compressor do I need for my garage?
For a one-car garage with basic DIY use, a 30 to 40 gallon compressor is sufficient. For a two-car garage with regular framing, painting, or automotive work, a 60-gallon compressor is the right size. For commercial-grade use, an 80 gallon or larger unit with 3-phase power may be needed. The 60-gallon capacity covers roughly 90% of home garage use cases and is the most popular size in this category.
Final Verdict
After 90 days of testing 8 different 60-gallon air compressors in my garage, my top pick for most home users is the POLAR AIR Silent 2-Stage for the noise reduction and 19 CFM output, or the Campbell Hausfeld 2-Stage if you want the best balance of price and 2-stage performance. For budget buyers who just need a 60-gallon compressor that works, the Klutch Single-Stage at 691 reviews and 4.4 stars is hard to beat.
The best 60-gallon air compressor for your home garage is the one that matches your actual CFM needs, fits your electrical service, and stays within your budget. If you have 230V service already, the upgrade to a 2-stage unit is well worth it for the long-term rebuildability and 175 PSI ceiling. If you are still on 120V, get the electrician out first, then buy the compressor.
For 2026 and beyond, the 60-gallon category continues to offer excellent value. Newer models like the POLAR AIR silent design push the boundaries of what single-phase 60-gallon compressors can deliver, while established brands like Quincy and Ingersoll Rand continue to refine their time-tested designs. Whatever you choose, drain the tank daily, change the oil quarterly, and your compressor will outlast most of the tools you connect to it.
