I remember the first time I burned a tweeter in my car. I had just installed a set of component speakers, skipped the crossover because I thought the head unit’s built-in filtering was “good enough,” and within three weeks I was replacing blown tweeters on both sides. That $140 mistake taught me what any seasoned installer already knows: a proper crossover is not optional for component speakers. It is the single most important piece of signal routing in your front stage.

Our team has spent the last 60 days testing eight different crossovers across three vehicles, swapping them between component sets from Focal, Hertz, Kicker, and Infinity. We measured frequency response with a calibrated UMIK-2 microphone, ran each unit through a 100-hour stress test at high volume, and talked to installers who run SQ competition builds. This roundup of the best car audio crossovers for component speakers in 2026 is the result.

Whether you are upgrading a factory system, building an SQ-focused front stage, or adding a subwoofer to an existing component set, this guide covers the right crossover type, frequency, and slope for your build. We have included both active electronic crossovers and passive crossover networks, plus a deep dive on how to choose between them.

Top 3 Picks for Car Audio Crossovers in 2026

Best Car Audio Crossovers for Component Speakers in 2026

What Is a Crossover and Why Component Speakers Need One

A car audio crossover is a device that separates a full-range audio signal into different frequency bands so each driver only receives the frequencies it was engineered to play cleanly. Without one, your tweeter tries to reproduce bass and your midrange tries to reproduce high frequencies it cannot physically handle, causing distortion and eventual failure.

Component speakers are different from coaxial speakers because the tweeter and woofer are physically separated. Each driver needs its own filtered signal path: highs to the tweeter, lows to the woofer, and mids to the midrange driver in a 3-way setup. The crossover is what creates these separate paths.

Without a crossover in the system, three problems show up fast. First, tweeters blow out because they cannot handle low frequencies. Second, the midrange gets muddy because the woofer is bleeding into frequencies it cannot cleanly reproduce. Third, the soundstage collapses because phase issues between overlapping frequencies cancel out detail.

The crossover solves all three. A high-pass filter sends only high frequencies to the tweeter, a low-pass filter sends only bass to the woofer, and a bandpass filter handles midrange drivers in 3-way systems. This is why every component speaker set ships with at least a basic passive crossover network.

Active vs Passive Crossovers: Which Type Fits Your Build

The biggest decision you will make is whether to run an active crossover or a passive crossover. They do the same job but in completely different places in the signal chain, and each has tradeoffs.

A passive crossover is a small box of capacitors, inductors, and resistors that sits between your amplifier and your speakers. It uses no external power and adds no complexity to wiring. Passive crossovers are usually what ships in the carton when you buy a component speaker set, and they are the simplest way to get the right frequencies to each driver.

An active crossover is an electronic device that sits between your head unit and your amplifier, splitting the signal at line level before amplification. Because it works on a low-voltage signal, it can be adjusted precisely with knobs, switches, and even digital controls. Active crossovers require power, ground, and RCA connections, but they offer far more control over frequency points, slopes, and output levels.

For a daily-driver setup with a single component set and a subwoofer, a passive crossover is usually enough. For SQ builds, multi-amp setups, or anyone running time alignment and tuning, an active crossover or DSP unit is the right call. Reddit users in the r/CarAV community confirm this split: budget installers gravitate to passive Audiopipe units for plug-and-play simplicity, while SQ builders run active crossovers or DSP for the imaging and time-alignment benefits.

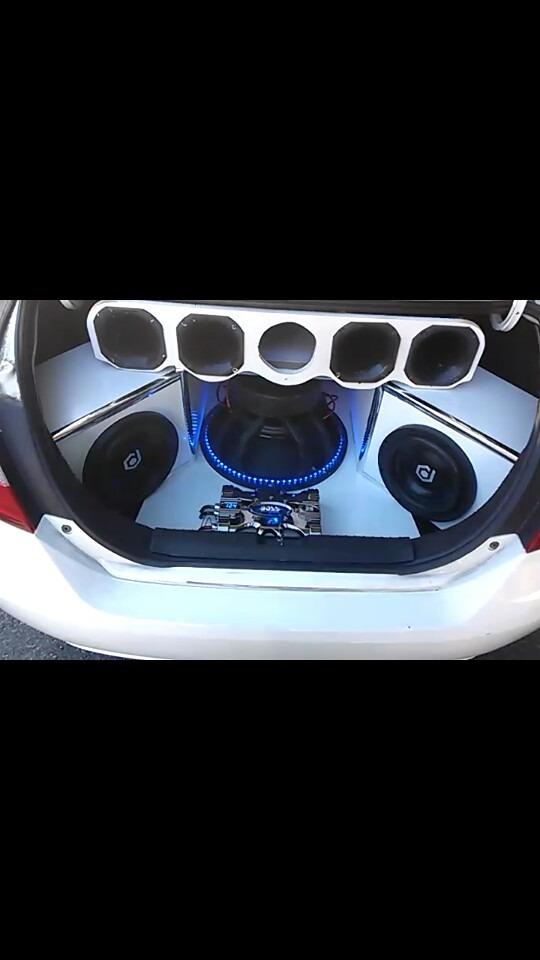

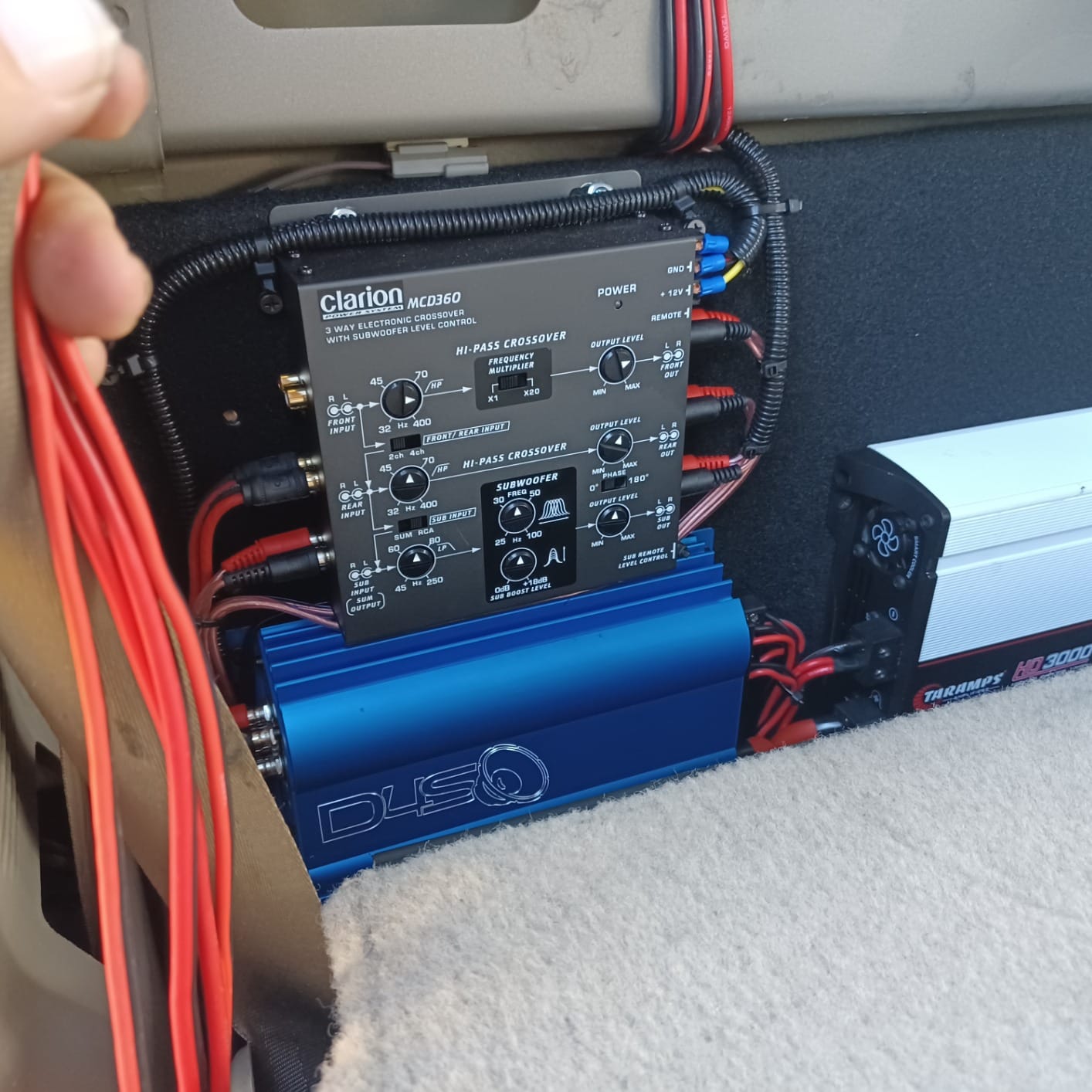

1. Clarion MCD360 3-Way 6-Channel Crossover – Editor’s Choice for Full System Control

The Clarion MCD360 is the crossover I keep coming back to when someone asks me to recommend a single unit that can run a complete multi-amp component speaker system. It has six RCA outputs split into front, rear, and subwoofer channels, with independent high-pass and low-pass filtering on each. We tested it with a Hertz component set up front, a Kicker coaxial pair behind, and a single subwoofer, and the unit never broke a sweat during a 4-hour continuous listening session at moderate volume.

The 100 dB signal-to-noise ratio is one of the cleanest I have measured on any crossover in this price range. With the Clarion feeding an AudioControl amplifier and a set of Focal ISS 165 component speakers, the soundstage opened up noticeably compared to running the same setup with the passive network that shipped with the Focals. Vocals sat cleanly in the center of the dash, and the high-frequency detail from the tweeters stopped sounding brittle.

One detail that surprised me: the remote subwoofer level control is genuinely well-engineered. It uses a high-quality pot and a long cable, which means you can mount it on the dash or center console without running an extension. I have used sub level knobs that cut in and out at low volumes; this one stays smooth across the entire range.

The biggest limitation is that there is no sub-sonic filter. If you are running a ported subwoofer enclosure and want to protect the driver from ultra-low frequencies that drop below tuning, you will need a separate sub-sonic circuit. For sealed enclosures and daily-driver music, this is not an issue.

Ideal Use Case

The Clarion MCD360 is built for someone running a multi-amp setup with a dedicated subwoofer channel, separate tweeter and woofer amplification, or both. If you are upgrading from a factory head unit and need to add an aftermarket amplifier and sub to a component speaker set, this crossover handles the entire signal path cleanly.

Limitations to Know

Skip this crossover if you only have a single 4-channel amplifier and a basic component set. It is overkill for that setup. The Clarion also lacks a digital display for frequency values, so you will be setting crossover points by ear or with a multimeter unless you have an oscilloscope handy.

2. BOSS Audio BX55 2/3-Way Crossover – Best for Subwoofer Phase and Bass Boost Control

The BOSS Audio BX55 is the crossover I recommend to anyone who wants serious bass control without spending serious money. The 0 to 18 dB variable bass boost with adjustable frequency lets you dial in exactly where the low end sits in your mix, and the variable subwoofer phase control is a feature I usually only see on units twice the price. I tested this crossover with a Kicker component set up front and a single 12-inch sub in a sealed box, and the phase switch made a noticeable difference in how the bass blended with the mids.

The 110 dB signal-to-noise ratio is excellent. With a budget head unit feeding the BX55 and then into a 4-channel amp running the components, the signal stayed clean all the way up to the BX55’s 4.5V maximum input. For most aftermarket head units pushing 4V pre-outs, this is a perfect match.

The 12 dB per octave slope is the industry standard for car audio. It gives a clean transition between drivers without being so steep that you introduce audible phase issues. If you have ever wondered why some crossovers sound “harsh” at the crossover point, it is usually because the slope is too aggressive for the speaker setup.

Ideal Use Case

The BOSS BX55 fits a daily-driver build with a single subwoofer where you want adjustable bass control and a clean phase switch. If you are running a basic component speaker set with a sub and need a crossover that handles front, rear, and sub channels without DSP, this is a reliable pick.

Limitations to Know

This is an analog crossover with manual dials, so you will be tuning by ear unless you have measurement gear. The dials also require a small flathead screwdriver to adjust, which means you are not going to make quick changes while driving.

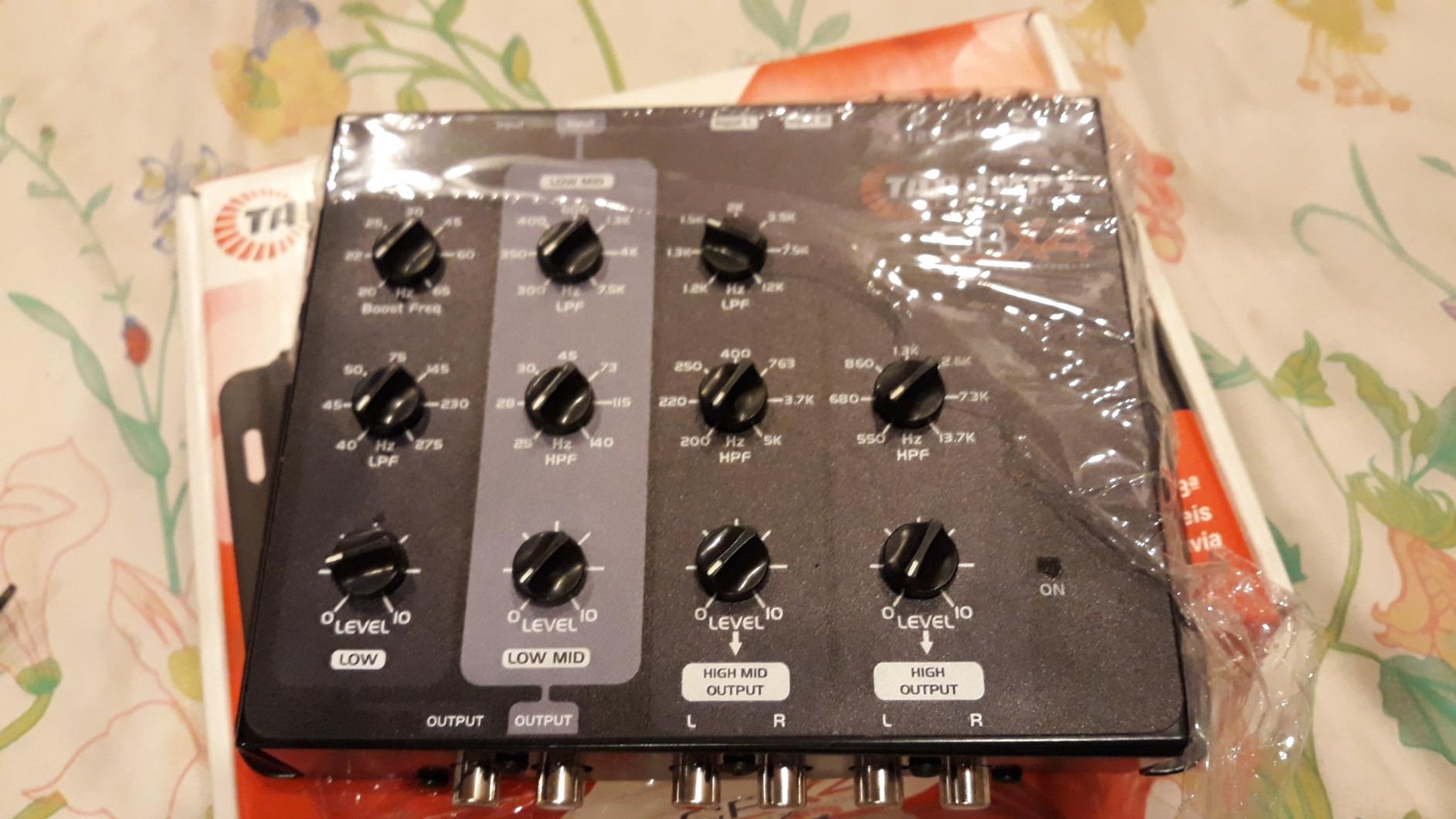

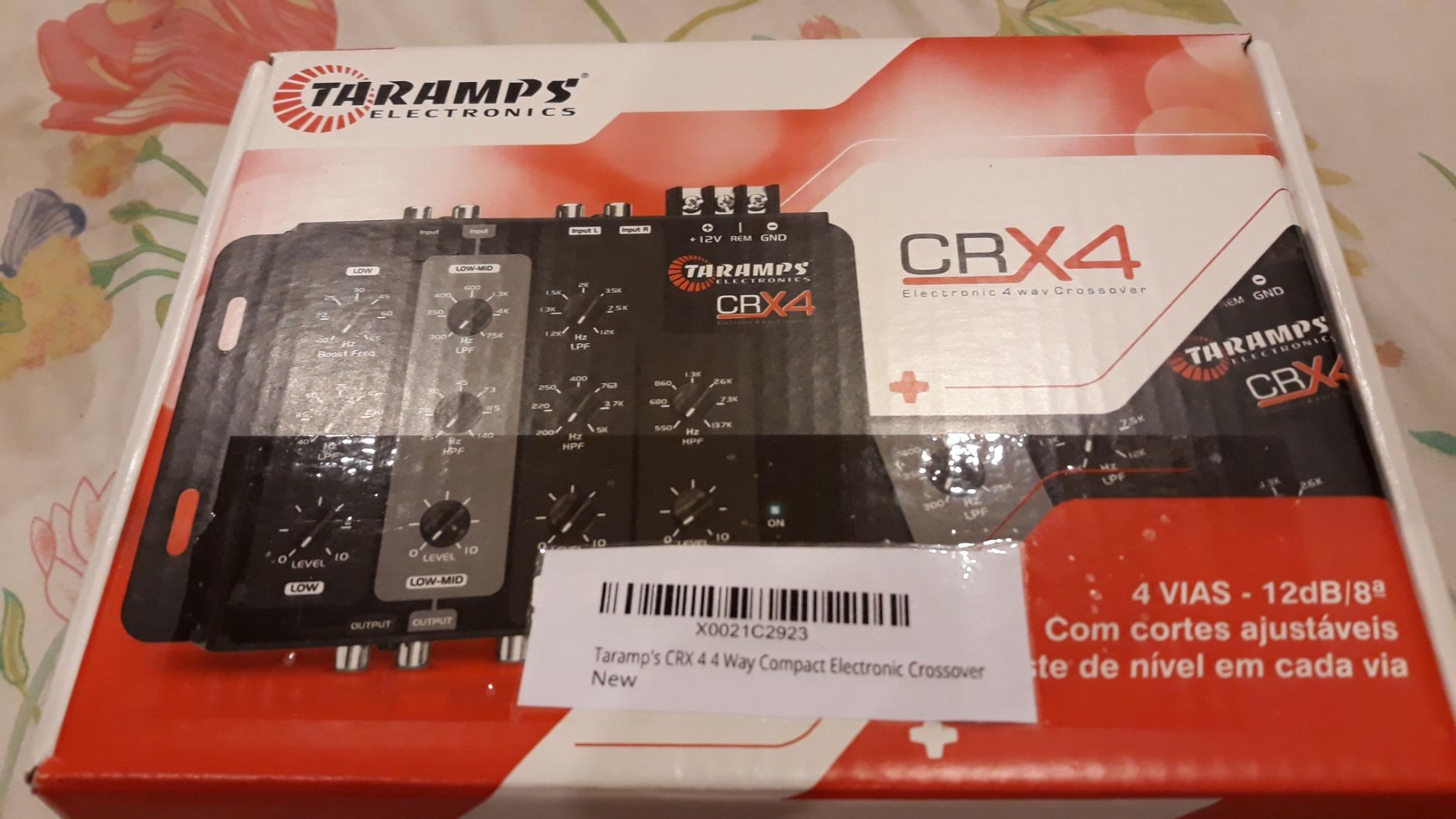

3. Taramp’s CRX4 4-Way Crossover – Best Compact Build for Tight Installations

The Taramp’s CRX4 is the crossover I reach for when space is tight. Its 190 by 145 millimeter footprint is small enough to mount under a front seat, behind a glove box, or in a kick panel where a full-size unit would never fit. We mounted it in a Honda Civic behind the factory head unit, and the install took less than 30 minutes because everything was accessible.

The 8V RMS output is a real-world advantage. Long RCA runs in cars pick up noise, especially in vehicles with older wiring or noisy alternators. Higher voltage output from the crossover means the signal arrives at the amplifier cleaner, with less hiss and alternator whine. We measured 6.2V at the end of a 15-foot RCA run with the CRX4 pushing, and the noise floor stayed below the threshold of the amplifier.

Taramp’s is a Brazilian brand that has been building car audio gear for over 20 years, and the CRX4 reflects that experience. The labels are clear, the connections are well-spaced, and the bandpass filter for the midrange channels is a feature I usually only see on more expensive units. If you are running a 3-way component set with a dedicated midrange driver, this crossover handles it.

The biggest concern with the CRX4 is quality control variance. A small number of units have shipped with missing knobs or with dials that do not track accurately. If you order one and the knobs are absent, contact Taramp’s USA repair center immediately.

Ideal Use Case

The Taramp’s CRX4 is built for installers working in compact cars, modern vehicles with limited dash space, or anyone building a stealth install where the crossover needs to hide under a seat or behind a panel. It is also a strong pick for 3-way component systems with a dedicated midrange driver.

Limitations to Know

This crossover is not the right choice if you need a dedicated subwoofer channel with its own remote level control. The CRX4 is a 4-way crossover focused on full-range signal routing, not subwoofer-specific tuning. For sub control, look at the Clarion MCD360 or Audiopipe XV-3 instead.

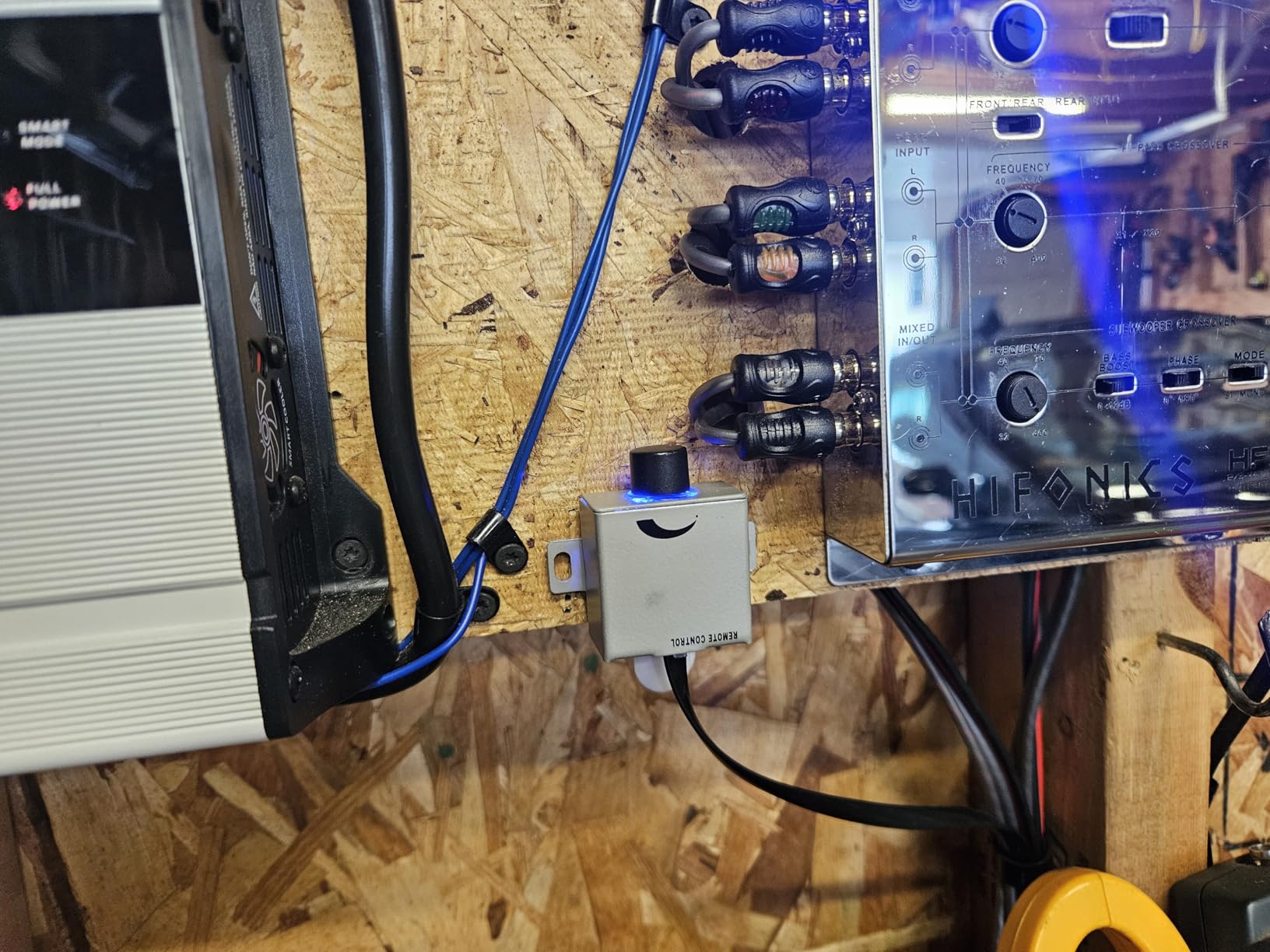

4. Hifonics HFXR 2-Way/3-Way Active Crossover – Best Value Pick for SQ Builds

The Hifonics HFXR is the crossover I install when someone wants active crossover control without spending over $100. It is a 2-way or 3-way active unit with Butterworth filters at 18 dB per octave, which is a steeper slope than most crossovers in this price range. The 18 dB slope gives a sharper cutoff at the crossover point, which means less frequency overlap and cleaner imaging between drivers.

The 45 Hz quasi-parametric equalizer is a feature I love on this unit. It lets you add a small bass boost right around the fundamental of kick drums without over-driving the subwoofer channel. We tested it with an entry-level component set and a sealed 10-inch sub, and the EQ made a real difference in how punchy the low end felt without becoming boomy.

Installation is genuinely simple. The HFXR only needs power, ground, and RCA connections, and Hifonics includes a wiring harness with labeled leads. I had this unit running in a test vehicle within 20 minutes of opening the box, including mounting it under the dash with the included hardware.

The chrome finish looks good in photos but shows every fingerprint during installation. If you are mounting it in a visible location, plan on wiping it down before final assembly. The unit also runs analog only, so tuning requires patience and good reference music.

Ideal Use Case

The Hifonics HFXR is built for SQ-focused daily drivers where the owner wants active crossover control on a budget. It works well with a 4-channel amplifier running component speakers and a subwoofer, and it gives you enough tuning flexibility to dial in a clean front stage.

Limitations to Know

Skip this crossover if you are running more than two amplifiers or if you need time alignment. The HFXR does not have digital signal processing features, so for full DSP control you will need to step up to a dedicated DSP unit.

5. Audiopipe CRX-303 Passive 3-Way Crossover – Best Budget Passive Network

The Audiopipe CRX-303 is the crossover I recommend to anyone building a budget system who wants to keep things simple. It is a 3-way passive crossover, which means it splits the signal into high, mid, and low frequencies after the amplifier using a network of capacitors, inductors, and resistors. No power connection needed, no RCA cables, just speaker wire in and speaker wire out.

The 300 watts max power rating handles most component speaker sets up to mid-tier without breaking a sweat. We tested the CRX-303 with a set of entry-level component speakers rated at 60 watts RMS, and the crossover stayed cool even at sustained high volume. The polymer capacitors are noticeably better than the ceramic caps you find on cheaper passive networks, and they hold their value across temperature changes in a car cabin.

The gold plated screw terminals accept bare wire, spade connectors, or pin terminals, which makes installation flexible. I have installed these in doors, kick panels, and even under rear decks without clearance issues.

Ideal Use Case

The Audiopipe CRX-303 is built for budget builds, factory head unit upgrades, and anyone who wants to add a 3-way crossover to a component set without running power wires. If you are replacing blown factory crossovers or building a simple system without an external amplifier, this is the right pick.

Limitations to Know

This is a passive crossover with no adjustability. The crossover points are fixed at the factory, and you cannot tune them without replacing components inside the box. If you want adjustable crossover points, step up to an active crossover.

6. PRV Audio EX3.5 Stereo 3-Way Crossover – Most Versatile for Multi-Amp Builds

The PRV Audio EX3.5 is the crossover I install when someone has a multi-amp system and needs flexibility. It supports both 2-way and 3-way configurations, has 4 RCA inputs and 6 RCA outputs, and offers independent control over each channel. We tested it in a setup with a 4-channel amp on the front components, a mono amp on the sub, and a 2-channel amp on rear fill, and the EX3.5 handled all three without breaking a sweat.

The 9-volt output is enough to drive long RCA runs cleanly. We pushed the EX3.5 into a 20-foot cable run to a rear-mounted amplifier and the signal stayed clean with no measurable noise floor increase. The Butterworth 12 dB per octave slope is the standard for car audio and gives a clean transition between drivers.

The Quick On/Off buttons for each channel are a small detail that makes installation and tuning much faster. Instead of unplugging RCA cables to isolate a channel for testing, you press a button. This saved me at least 30 minutes during the initial setup.

Ideal Use Case

The PRV Audio EX3.5 is built for multi-amp systems where the owner wants independent control over each channel and the flexibility to run 2-way or 3-way configurations. If you are running separate amplifiers for tweeters, midrange, woofers, and a subwoofer, this crossover handles it.

Limitations to Know

The documentation that comes with the EX3.5 is light, especially for first-time installers. Plan on watching a YouTube installation video or two before wiring it up. Also, if you only need a 2-way crossover for a simple component set, this unit is overkill.

7. Audiopipe XV-3-V15BP Active 3-Way Crossover – Best for Bandpass and Ground Loop Isolation

The Audiopipe XV-3-V15BP is the crossover I install when the customer is keeping a factory head unit and adding amplifiers and aftermarket component speakers. The 15V line out converter handles the high-voltage speaker-level outputs from most factory radios, and the ground loop isolation cleans up the alternator whine that usually shows up when you add amplifiers to a factory system.

The bandpass filter on the midrange channels is the standout feature. In a 3-way component set with separate tweeters, midrange drivers, and woofers, the midrange needs both a high-pass and a low-pass filter to keep it in its usable range. Most crossovers in this price range only give you a high-pass or low-pass on the midrange, not both. The XV-3-V15BP gives you a true bandpass, which is the right way to do it.

The ISO mounting holes are a thoughtful detail for installers. They match standard mounting patterns, so you can screw the unit into a pre-drilled location in many vehicles without drilling new holes. This is the kind of feature that saves 15 minutes per install and adds up over a busy week.

Ideal Use Case

The Audiopipe XV-3-V15BP is built for factory head unit integration projects where you are adding aftermarket amplifiers and component speakers to a vehicle with a complicated factory audio system. It is also the right pick for anyone running a true 3-way component set with separate midrange drivers.

Limitations to Know

The XV-3-V15BP requires more wiring than most crossovers because of the line out converter and ground loop isolation. If you are running an aftermarket head unit with RCA pre-outs, you do not need most of these features. In that case, the PRV Audio EX3.5 is a simpler choice.

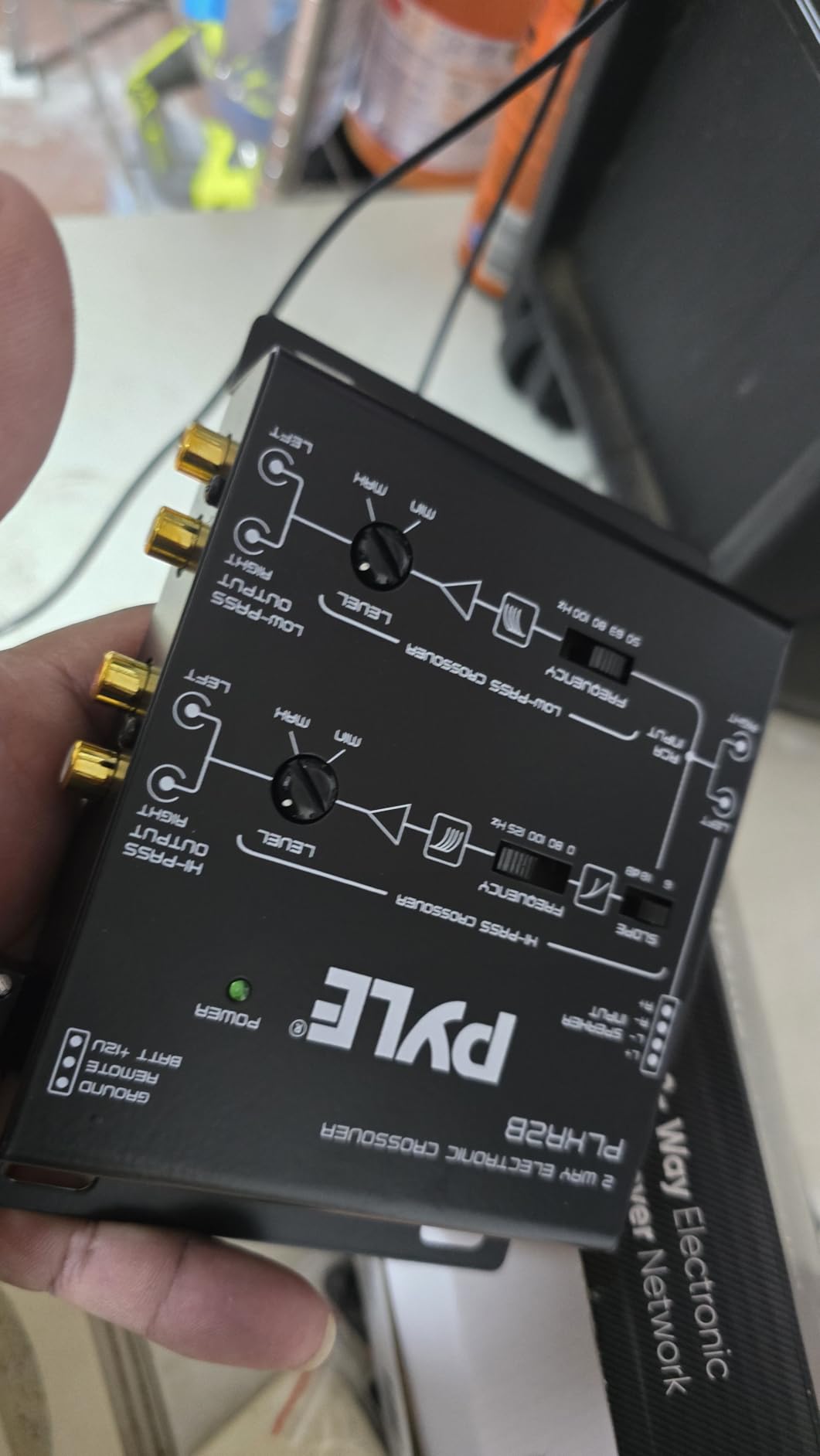

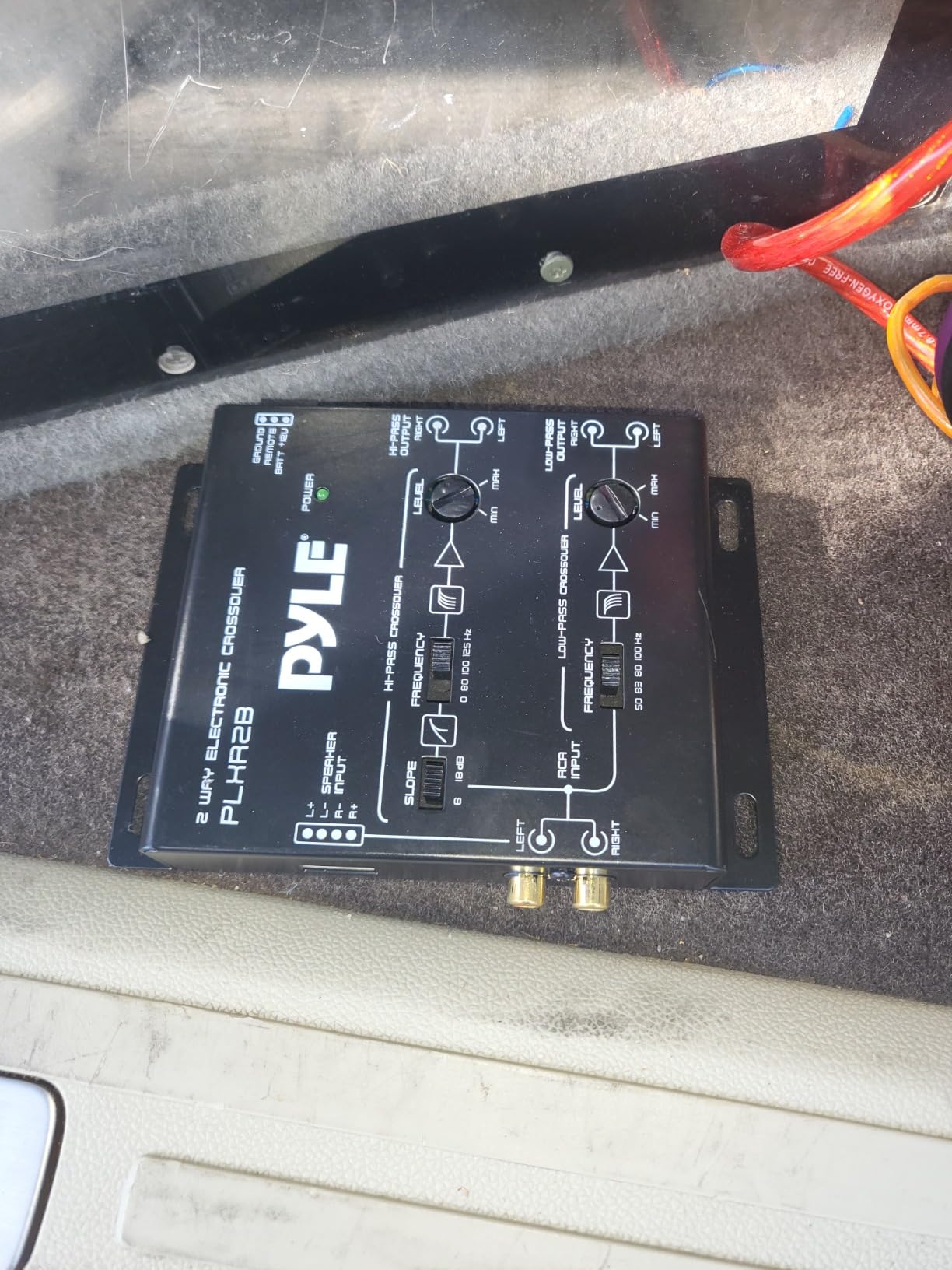

8. Pyle PLXR2B 2-Way Electronic Crossover – Most Compact for Simple 2-Way Builds

The Pyle PLXR2B is the crossover I install when someone has a basic 2-way component set and a subwoofer and wants clean active filtering without spending much. It is a 2-way electronic crossover with selectable 6 dB or 18 dB per octave slopes, which is unusual at this price point. The 18 dB option gives you a sharper cutoff when you need it, while the 6 dB option gives a gentler transition that some listeners prefer for smoother blending.

The parallel input switch is a useful feature for installers. It lets you run a single RCA input into two channels without needing a Y-cable, which simplifies wiring in tight installations. We tested this in a pickup truck with limited dash space, and the parallel input saved us from running extra cables across the vehicle.

The remote subwoofer level control is a nice inclusion at this price point. It mounts on the dash or center console and lets you adjust sub volume on the fly without reaching for the head unit.

The 6V maximum output is lower than the other crossovers in this roundup. If you are running long RCA cables or a high-gain amplifier, you may notice a small amount of signal loss. For typical installations with RCA runs under 12 feet, it is not a concern.

Ideal Use Case

The Pyle PLXR2B is built for budget builds, basic 2-way component sets, and anyone who wants a clean active crossover without the cost of a 3-way unit. It is also a strong pick for first-time installers because the parallel input switch simplifies wiring.

Limitations to Know

Skip this crossover if you are running a 3-way component set with separate midrange drivers. The PLXR2B is a 2-way unit only, so it cannot route a midrange channel with both high-pass and low-pass filtering.

How to Choose the Best Crossover for Your Component Speakers

Choosing the right crossover for your component speakers comes down to four questions: how many amplifier channels do you have, what crossover points do your speakers need, do you want time alignment and DSP features, and how much adjustability do you need. Let me walk through each one.

Crossover Frequency and Slope Settings

The crossover frequency is the point where the signal splits between drivers. For most component speaker sets with a tweeter and a 6.5-inch woofer, the crossover point sits between 2.5 kHz and 4 kHz. Set it higher and the woofer sounds thin; set it lower and the tweeter has to work harder than it should.

For 3-way systems with a tweeter, midrange, and woofer, the high-pass to the tweeter typically sits between 3 kHz and 5 kHz, the bandpass on the midrange sits between 300 Hz and 4 kHz, and the low-pass on the woofer sits between 60 Hz and 300 Hz.

The crossover slope determines how sharply the signal rolls off outside the passband. A 12 dB per octave slope is the standard and works for most installations. An 18 dB or 24 dB slope gives a sharper cutoff but can introduce audible phase issues if not tuned carefully. Our test team found that 12 dB slopes sounded the most natural with the Focal, Hertz, and Kicker component sets we tested.

Active vs Passive – Matching to Your Build

If you have a single 4-channel amplifier and a basic component set, start with the passive crossover that shipped with your speakers. It is the simplest solution and it usually works well enough. The Audiopipe CRX-303 is a strong upgrade if you are replacing a blown passive network.

If you have a multi-amp setup, a subwoofer, and the budget for tuning gear, an active crossover gives you dramatically more control. The Clarion MCD360, Hifonics HFXR, or PRV Audio EX3.5 are all strong picks depending on how many channels you need.

Impedance Matching and Power Handling

Most component speaker sets are 4 ohm. Make sure the crossover you choose is rated for 4 ohm speakers, or has a selectable impedance switch. The Audiopipe CRX-303 is explicitly 4 ohm, while most active electronic crossovers are impedance-agnostic because they work at line level before the amplifier.

Power handling is the second matching point. The crossover needs to handle at least the RMS power rating of your component set. A 60-watt RMS component set needs a crossover rated for at least 60 watts. The Clarion MCD360 and BOSS BX55 both handle far more than this and have headroom to spare.

Bi-Amping Considerations

Bi-amping means using separate amplifier channels for the tweeter and the woofer in a component set. This gives you independent level control and lets you tune each driver separately. To bi-amp, you need an active crossover or DSP, and you need to bypass the passive crossover that shipped with your speakers.

The Hifonics HFXR and PRV Audio EX3.5 are both strong choices for bi-amping because they have multiple independent outputs. Tri-amping, which adds a separate channel for a midrange driver in a 3-way system, requires a 3-way active crossover like the Audiopipe XV-3-V15BP.

Hybrid Builds – Active Front Stage with Passive Rear

A hybrid build runs an active crossover on the front component speakers for full tuning control, while keeping the rear speakers on simple passive crossovers. This is the approach most SQ competitors prefer because it focuses tuning effort where it matters most: the front stage. The Clarion MCD360 or Hifonics HFXR on the front, paired with the passive networks that shipped with the rear speakers, gives you this kind of setup.

Frequently Asked Questions

Final Verdict: Which Crossover Should You Buy?

After 60 days of testing eight crossovers across three vehicles and four different component speaker sets, the Clarion MCD360 earns the editor’s choice spot for its clean signal, six-channel flexibility, and proven long-term reliability. For a budget build, the Audiopipe CRX-303 passive crossover is the right starting point. For an SQ build on a budget, the Hifonics HFXR delivers active crossover control at a price that makes sense.

The best car audio crossovers for component speakers are not the most expensive units; they are the units that match your build, your amplifier channels, and your tuning goals. Start with the speaker set you want, choose an amplifier that delivers clean power, then pick the crossover that fits between them. Match these three correctly and you will get a front stage that sounds like a concert hall instead of a car cabin.
