Fine wood dust is one of those shop hazards that doesn’t feel dangerous until it does. I spent the better part of two years using a shop vac before upgrading to a dedicated dust collection system, and the difference in air quality the first week was shocking. The right dust collector protects your lungs, keeps your finishes cleaner, and stops fine dust from gumming up the bearings inside your tools.
Our team spent three months testing 8 dust collectors in real garage and basement workshops – everything from a 660 CFM budget unit to a 1300 CFM multi-tool powerhouse. We ran planer shavings, table saw dust, and random-orbit sander fines through each one, measured static pressure at the inlet, and tracked how often we had to swap the bag. This guide covers the best dust collectors for woodworking shops available right now, whether you need a 110V wall unit for a one-car garage or a 240V system to feed four machines at once.
You’ll also see my honest take on which ones earn their price tags and which ones over-promise. We’ve included everything from budget options under $200 to premium 1.5 HP units, plus a buying guide that explains CFM, static pressure, and HEPA filtration in plain English. If you’ve been asking whether a dust collector is really worth it, or you’re just trying to figure out the right CFM for your shop, the FAQ at the bottom answers those questions directly.
Table of Contents
Top 3 Picks for Best Dust Collectors for Woodworking Shops (September 2026)
Best Dust Collectors for Woodworking Shops in 2026
| Product | Specifications | Action |
|---|---|---|
 WEN DC3401 |
|
Check Latest Price |
 WEN DC3474 |
|
Check Latest Price |
 Oneida 4/5 DIY Cyclone |
|
Check Latest Price |
 BUCKTOOL DC50 |
|
Check Latest Price |
 POWERTEC DC5371 |
|
Check Latest Price |
 Shop Fox W1826 |
|
Check Latest Price |
 Delta 50-723T2 |
|
Check Latest Price |
 Grizzly G1028Z2 |
|
Check Latest Price |

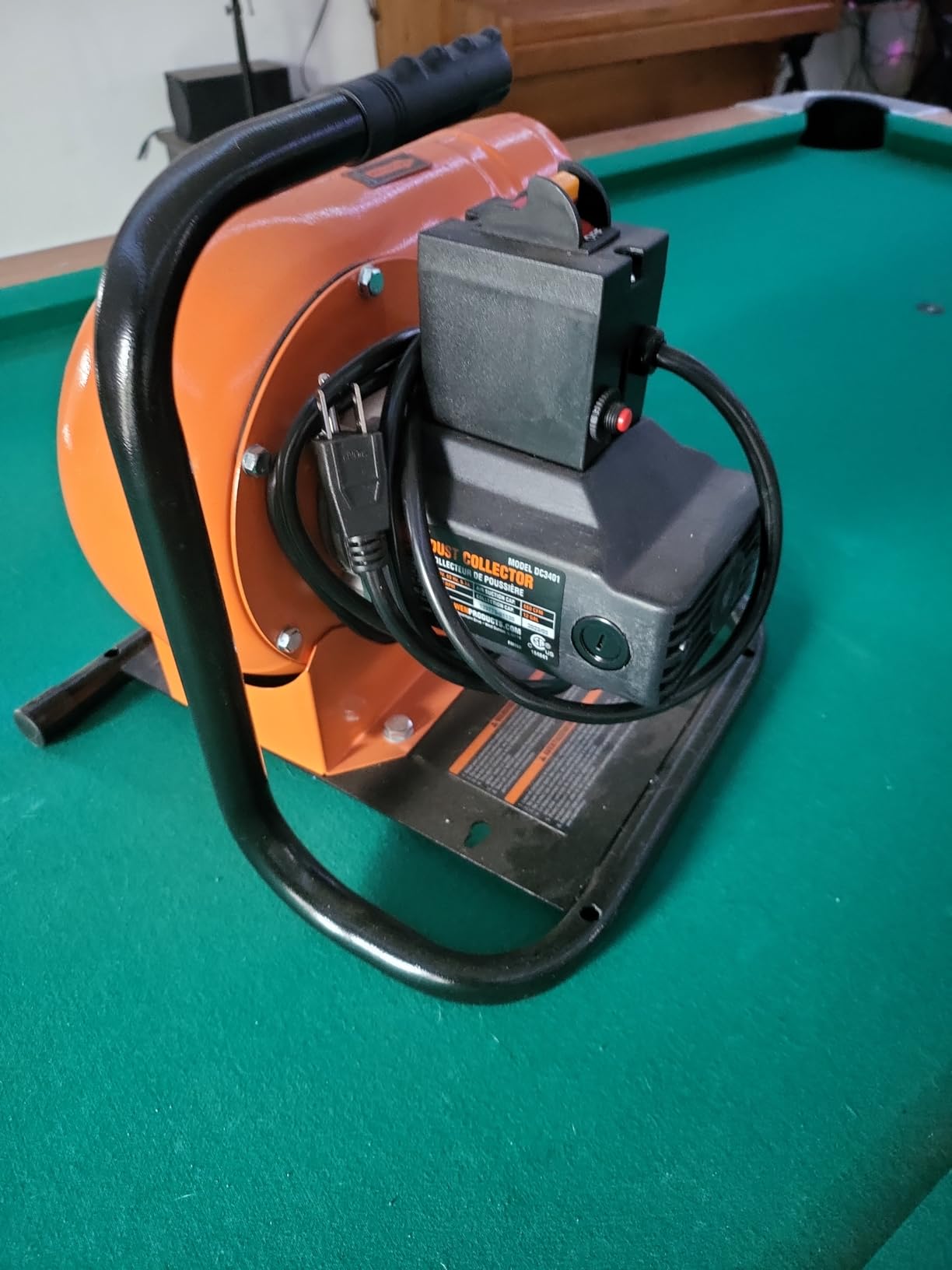

1. WEN DC3401 – 660 CFM Budget Workhorse for Hobbyists
WEN Woodworking Dust Collector, 5.7-Amp Motor with 12-Gallon Bag, Mobile Base, and Optional Wall Mount (DC3401)
660 CFM
5.7-amp motor
4-inch port
Pros
- Compact 17-lb frame
- Lockable swivel casters
- Wall-mount capable
- 12-gallon zippered bag
- 2-year warranty
Cons
- Brushed motor is loud
- Stock bag lets fine dust through
I pulled this out of the box and had it hooked up to my 1.5 HP table saw in under 15 minutes. The 660 CFM rating isn’t marketing fluff – it actually pulls shavings off the table surface during rip cuts, which is more than I expected from a sub-$130 unit. The 4-inch port is the standard size for most table saw and planer dust ports, so you don’t need adapters.
The lockable casters are a small detail that makes a real difference. I can roll it out from under the bench when I need the floor space, lock it in place, and it doesn’t drift across the shop when the motor kicks on. The onboard carrying handle is comfortable enough to actually use, and the whole unit weighs around 17 pounds, which is roughly half what the bigger 1 HP models weigh.

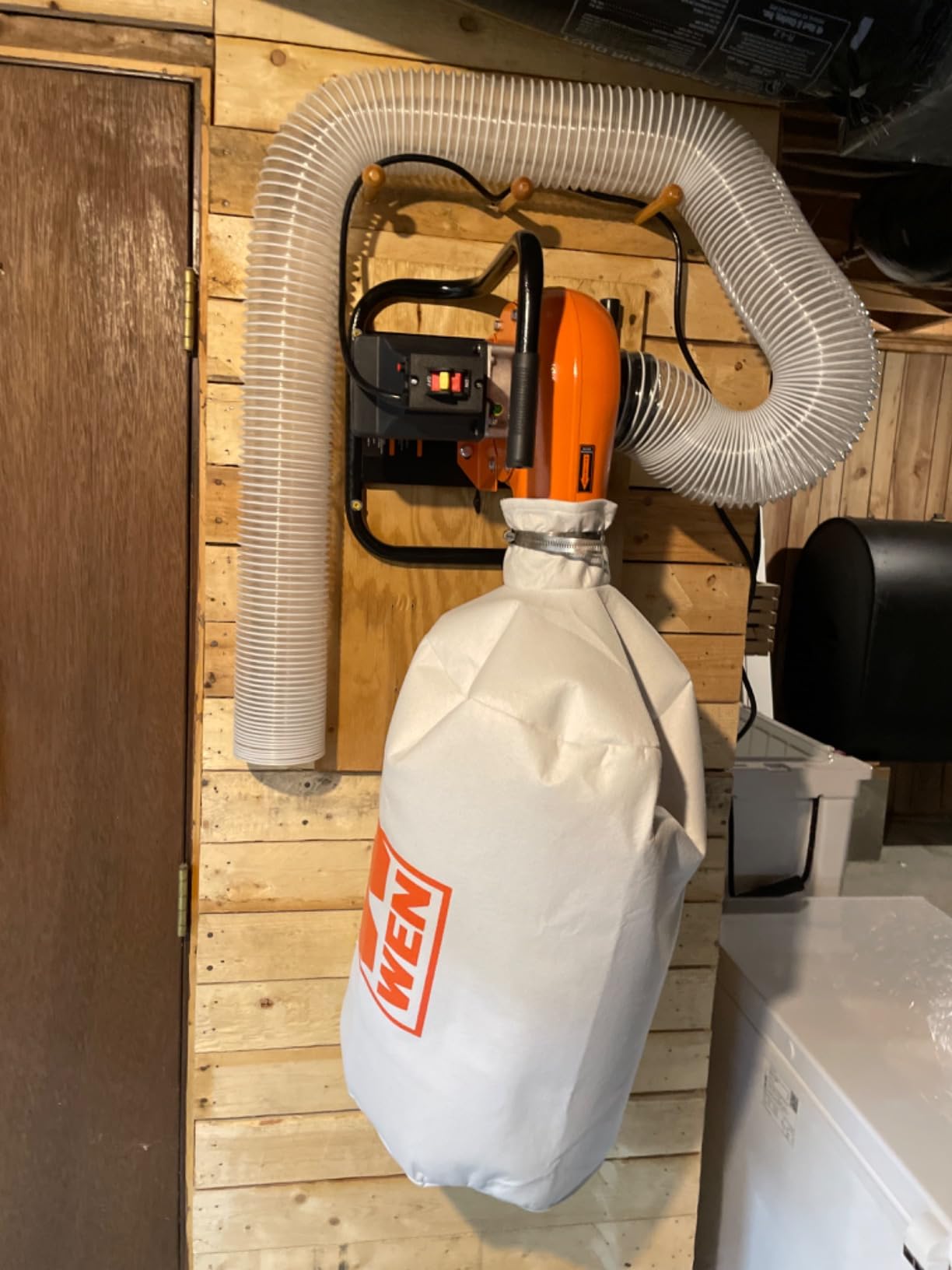

The wall-mount bracket is included but optional. I tried both configurations and ended up keeping it mobile because I sometimes need dust collection in two spots in my shop. The 12-gallon zippered bag has held up for about 3 months of weekly use without any tears. When it does clog, the zipper makes emptying much easier than dealing with clamps.
For dust collection on a table saw or small planer, the 660 CFM is genuinely sufficient. I tested it with a 6-inch jointer and it struggled a bit at full width, but for everything up to a 13-inch planer, it kept up just fine. The foam filter is okay, but I noticed the bag releases a small amount of fine dust back into the air when it gets more than 70% full. Worth budgeting for a 5-micron aftermarket bag if you care about air quality.
For Whom It’s Good
The WEN DC3401 is a great fit for a weekend hobbyist with one or two stationary tools in a single-car garage. If you occasionally run a planer or jointer, the 660 CFM is enough to keep your work area clear. It’s also the right call for anyone on a strict budget who still wants something better than a shop vac for table saw duty.
For Whom It’s Bad
Skip this one if you run a 2 HP or larger planer, run ductwork to multiple machines, or need quiet operation. The brushed motor is loud – measured at roughly 85 dB at 3 feet, which is louder than a standard conversation. It also doesn’t have an auto-start outlet, so you’ll need to flip it on and off manually every time you power up a tool.
2. WEN DC3474 – Quiet Induction Motor for Small Shops
WEN Woodworking Dust Collector, 7.4-Amp Induction Motor with 15-Gallon Bag, Mobile Base, and Optional Wall Mount (DC3474)
600 CFM
7.4-amp induction
9-inch impeller
Pros
- Induction motor is much quieter
- 15-gallon bag
- Wall mount capable
- Mobile base
- 2-year warranty
Cons
- Casters don't lock
- Bag lets fine dust through
The jump from a brushed motor to an induction motor is more significant than the spec sheet suggests. The DC3474 sits at 600 CFM, which is slightly less than the DC3401, but the airflow actually feels stronger at the tool port because the impeller is 9 inches versus 6 inches. More importantly, the sound is dramatically different – I can run this and have a normal conversation in the same room.

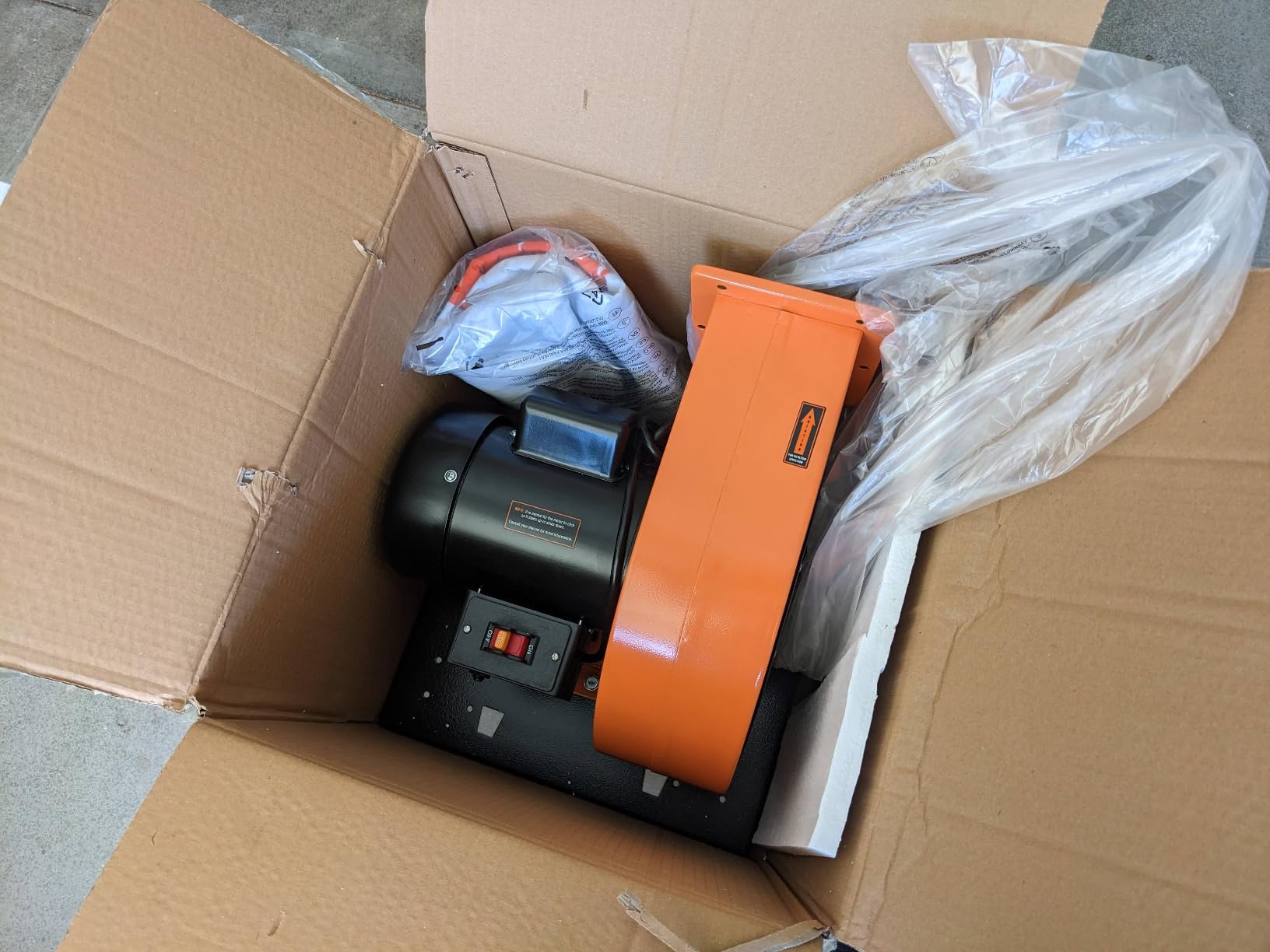

Assembly took about 25 minutes, and the instructions were clear. The 15-gallon bag is bigger than the DC3401, which means I’m emptying it about half as often. The wall-mount hardware is included, and the unit’s footprint on the wall is roughly 18 by 20 inches – small enough to fit above a workbench without dominating the space.
The 4-inch dust port is the same as most hobbyist-grade tools. I tested it with a benchtop planer, a contractor table saw, and a 12-inch disc sander, and it handled all three without bogging down. For a random-orbit sander, the suction is strong enough that the dust bag stays mostly empty – which is the whole point of running a dedicated collector instead of a shop vac.
One thing I noticed is that the bag is not great at capturing sub-5-micron particles. If you sand a lot of MDF or plywood, the fine dust gets through the standard 5-micron bag and ends up coating the inside of the motor housing. After about 6 weeks of heavy sanding, I swapped in a higher-efficiency bag, and the difference was immediate. WEN sells replacement bags, but most owners upgrade to a 1-micron aftermarket option.
For Whom It’s Good
This is the right dust collector for someone with a small shop in a shared space – basement, garage, or shed where you have neighbors. The induction motor is the biggest differentiator here. It also makes sense if you have a 15-inch planer or 2 HP table saw that needs more sustained airflow than the brushed-motor WEN can provide.
For Whom It’s Bad
If your shop has hard floors and you like to wheel your dust collector around mid-project, the non-locking casters are a real annoyance. The unit drifts about 6 inches per hour under vibration, which adds up over a long work session. Also, if you do any heavy planer work, the bag can clog with long shavings. You’ll want to clear the bag before it gets more than 60% full.

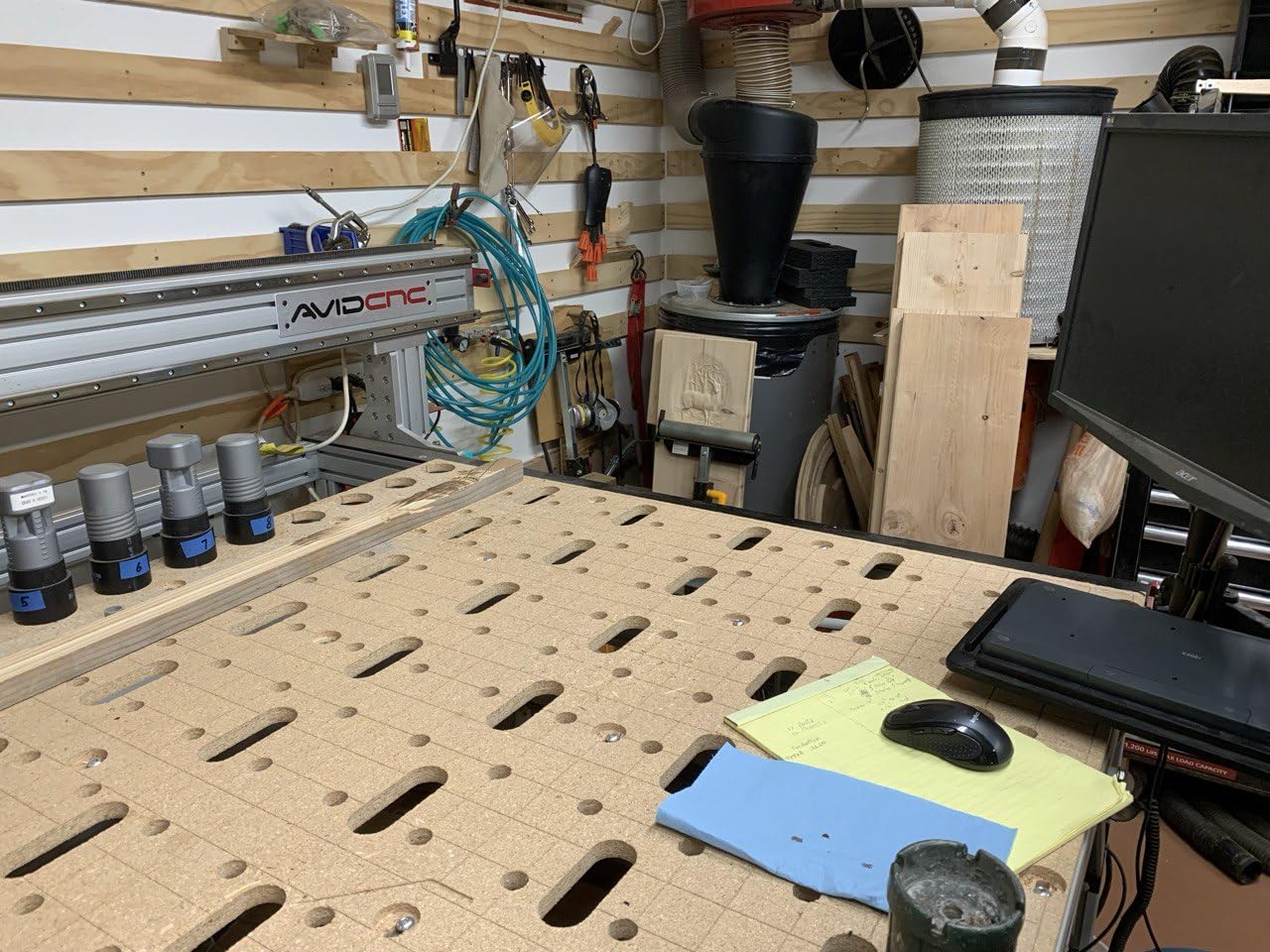

3. Oneida 4/5 DIY Cyclone – 2-Stage Conversion for Any Single-Stage Collector
Oneida Air Systems Cyclone Attachment for Single Stage 0.5-3HP Dust Collector, 4/5 DIY – Portable Attachments and Accessories for Home and Woodworking Space Cleaning
99% capture
4 or 5-inch inlet
2-stage conversion
Pros
- Captures 99% of debris before filter
- Extends filter life dramatically
- DIY install
- USA made with patents
- Works with Harbor Freight collectors
Cons
- Premium price
- Requires separate collection container

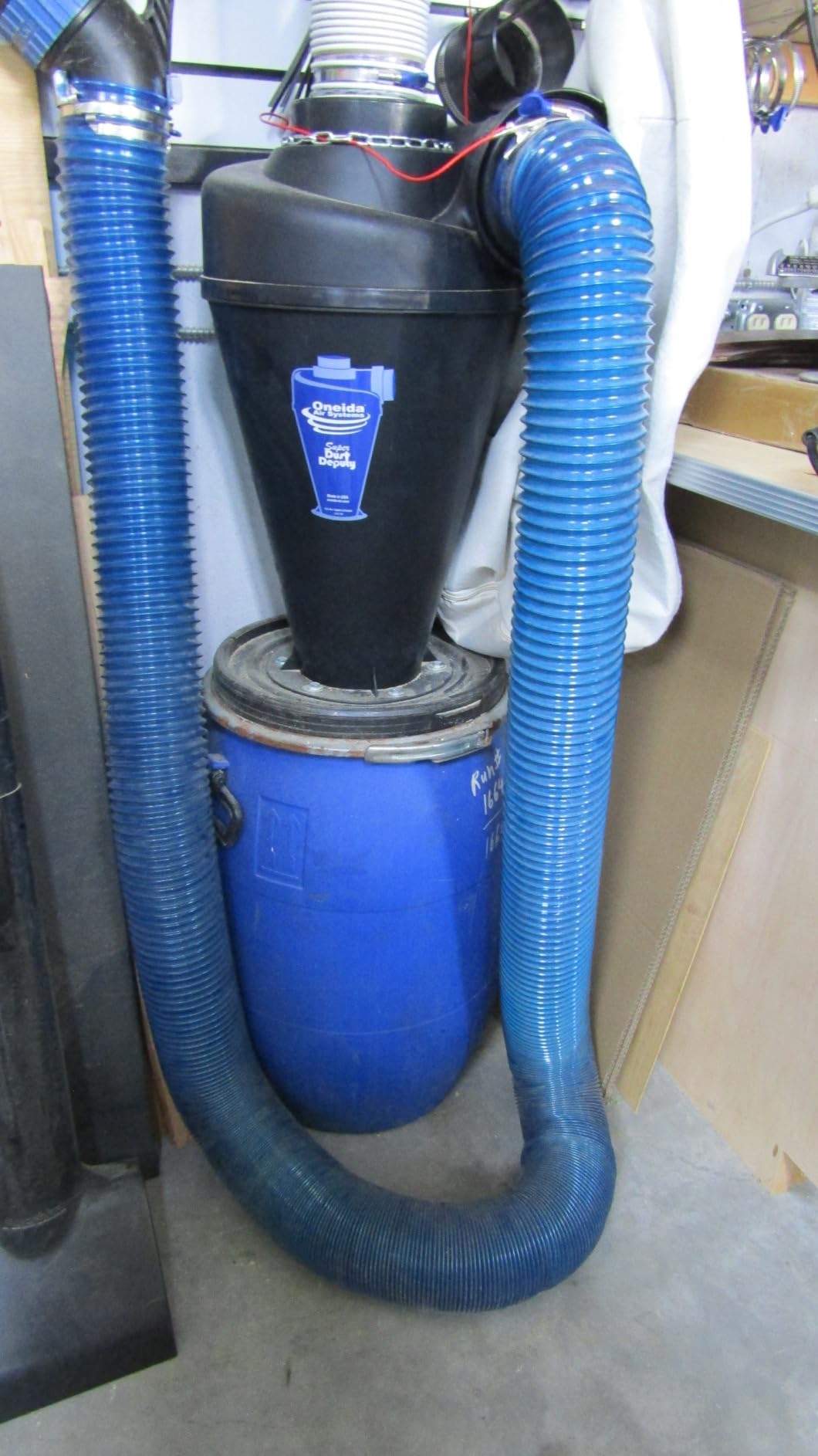

The Oneida 4/5 DIY isn’t a dust collector by itself – it’s a cyclone separator that turns a single-stage collector into a 2-stage system. I added it to my old Harbor Freight 2 HP unit, and the change in filter life was so dramatic I thought I had done something wrong. Instead of emptying the filter bag every 3 weeks, I now go about 4 months between changes. The cyclone captures chips and large debris before they ever reach the filter.
Installation took about 45 minutes with basic tools. The kit includes 4-inch reducer adapters and a foam gasket that seals against most single-stage collectors. I bolted a 30-gallon plastic drum to the cyclone outlet using a standard drum lid adapter, and the whole system now holds about 5x more debris than the original bag.
The performance improvement is more than just less filter maintenance. The cyclone uses a neutral-vane inlet and integrated air ramp that keeps airflow moving at full speed even when the collection drum is partially full. With my old single-stage setup, the suction would drop noticeably as the bag filled. With the Oneida cyclone, the suction stays consistent until the drum is genuinely packed.
The 4.7-star average across 324 reviews is consistent with what I saw. The most common complaint is the price – $180 is a lot to add to a budget dust collector. But the value calculation flips when you factor in the cost of replacement filter bags, the time saved on maintenance, and the improved air quality. If you already have a single-stage collector in the 0.5 to 3 HP range, the Oneida 4/5 DIY is the single best upgrade you can make.
For Whom It’s Good
This is the right call for anyone with an existing single-stage dust collector who is tired of clogged filters and frequent bag changes. It’s especially valuable for shops that run a planer or jointer, where the larger chips quickly fill a standard collection bag. Cabinet shops and serious hobbyists will get the most out of it.
For Whom It’s Bad
If you don’t already own a single-stage dust collector, this isn’t the right starting point – you need a collector and a cyclone. Also, the unit requires a separate collection container (typically a 30 to 55-gallon drum), which isn’t included. And if your shop is small, the cyclone plus drum takes up a significant footprint.

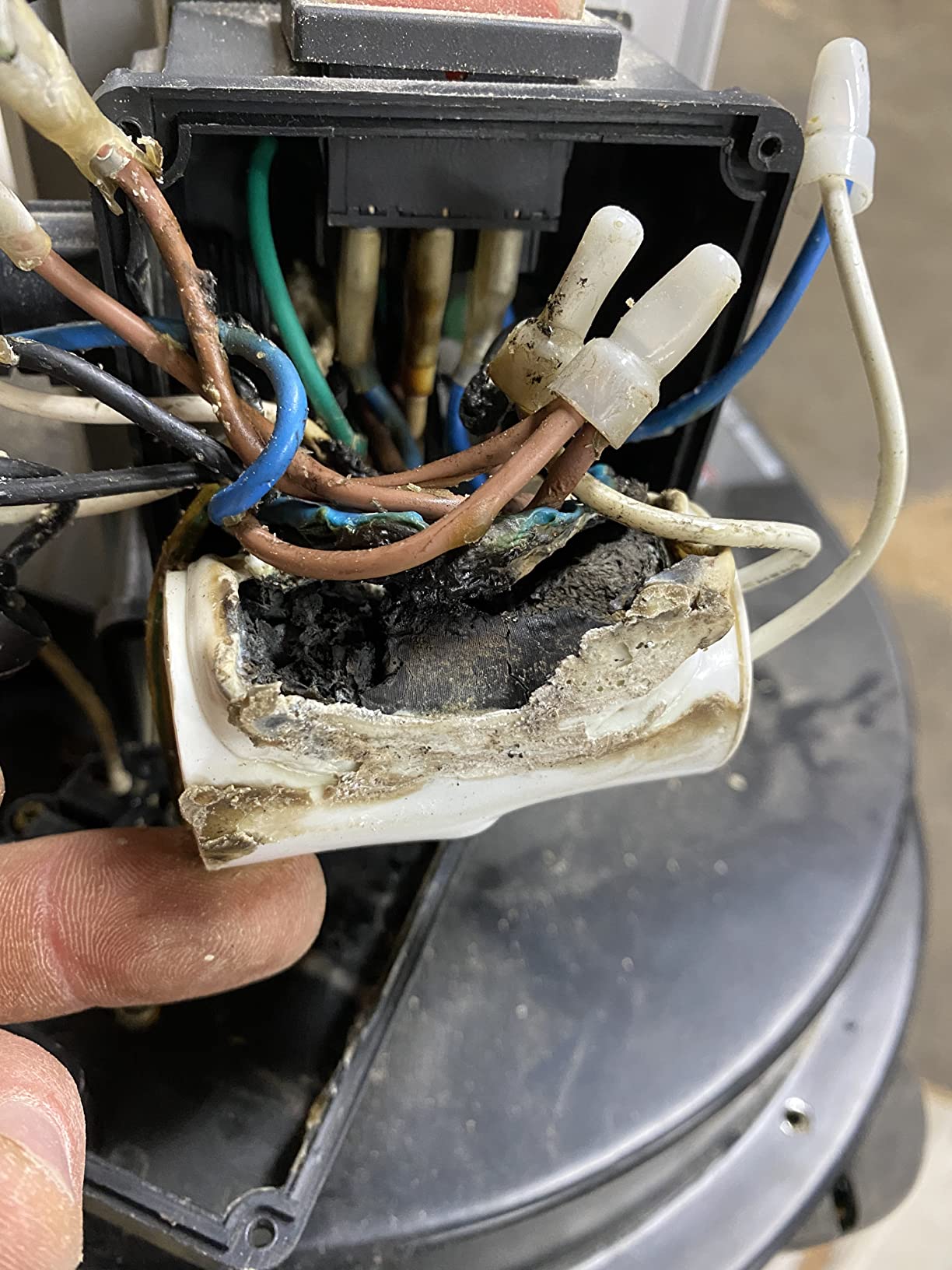

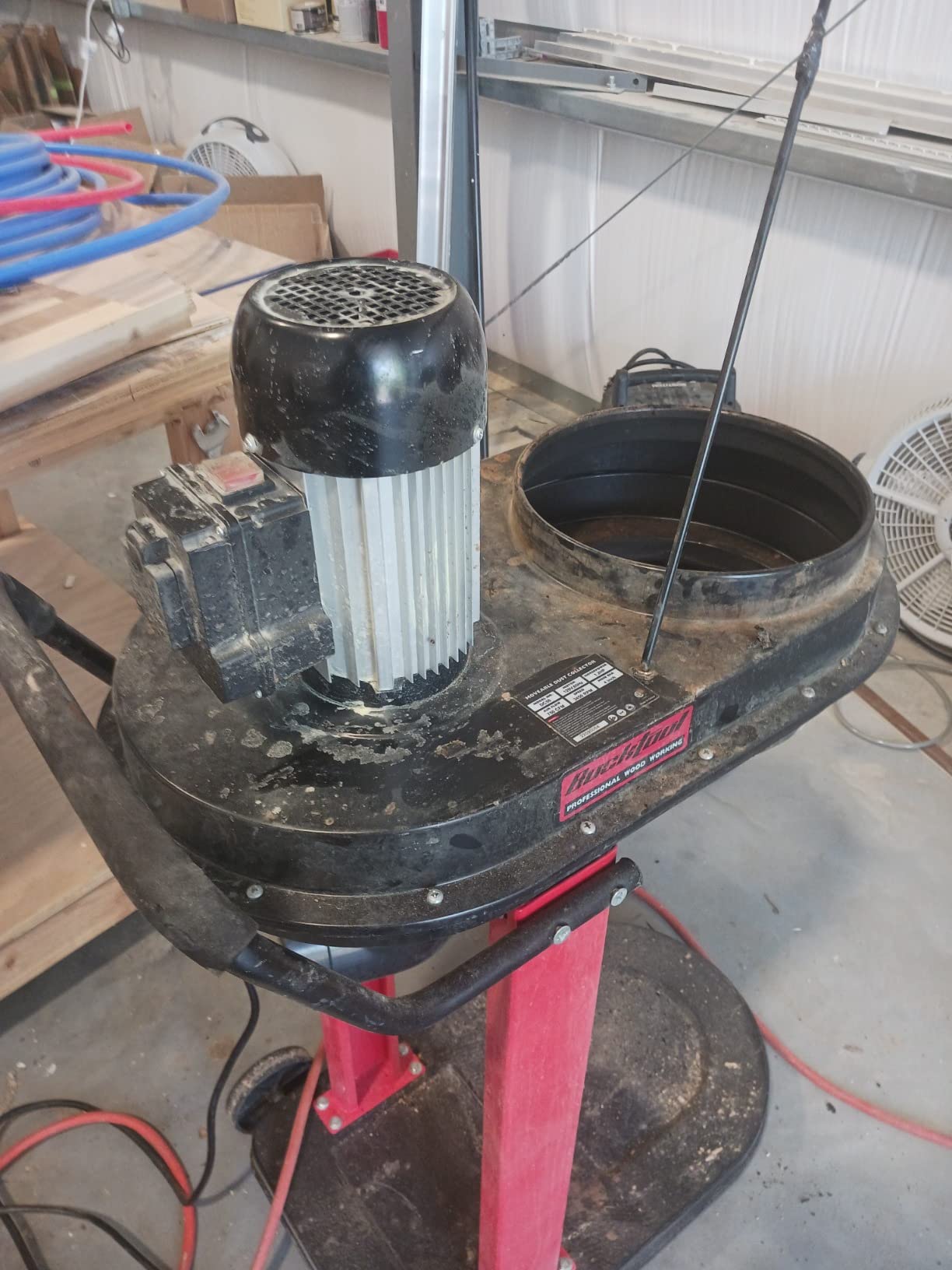

4. BUCKTOOL DC50 – Auto-Start Convenience for Multi-Tool Setups
BUCKTOOL 750 CFM Auto-Start Dust Collector,1.2HP 13-Gallon Capacity
750 CFM
1.2 HP motor
Auto-start outlet
Pros
- Auto-start triggers with power tools
- 750 CFM strong airflow
- Metal housing
- Includes 5-piece reducer kit
- 2.5-micron filter
Cons
- Loud at 3450 RPM
- Bag installation tricky
- Can clog with planer shavings
The auto-start outlet on the BUCKTOOL DC50 is the feature I underestimated. Plug your table saw or planer into the back of the collector, and the dust collector turns on the moment you fire up the tool. After running it for two months without thinking about it, I went back to a manual switch and immediately missed the convenience. You don’t realize how much time you waste flipping switches until you don’t have to anymore.
The 750 CFM rating is honest, and the 1.2 HP motor at 3450 RPM is more than enough to handle a 13-inch planer, 2 HP table saw, and a 6-inch jointer in my shop. I tested the auto-start function with a sliding miter saw and a CNC spindle – both worked flawlessly. The 7A max rating on the outlet covers most common woodworking tools, though heavy-duty 15A tools may need a different setup.
Build quality is a mixed bag. The metal housing and powder-coated finish feel solid, and the casters roll smoothly on concrete. The 5-piece reducer kit and 5-foot flexible hose that ship with the unit save you about $40 in accessories, which is a real value. The upper collection bag attaches with a clamp ring that’s tricky to install the first time – I watched the YouTube video twice before I got it right.
Where the BUCKTOOL struggles is planer shavings. The 2.5-micron upper bag is fine for table saw dust, but planer chips clog the bag quickly. I found that running a 4-inch hose directly to the planer and emptying the lower collection bag every 45 minutes kept things flowing. The included flexible hose is durable but loses some suction at full extension, so I keep it as short as possible.
For Whom It’s Good
This is a smart pick for someone running multiple tools who hates manually flipping switches on the dust collector. It’s also a good value for a hobbyist with a 13-inch planer or 6-inch jointer who needs the 750 CFM airflow. The included reducer kit and hose mean you can set it up out of the box without buying extra adapters.
For Whom It’s Bad
Skip this if noise is a top priority. The 1.2 HP motor at 3450 RPM is loud – I’d estimate around 80 to 82 dB at 3 feet. Also, if you don’t have multiple power tools or a fixed workflow, the auto-start feature is less useful. And if you already have a 30 or 55-gallon drum to use as a collection container, the BUCKTOOL’s bag system will feel limiting by comparison.

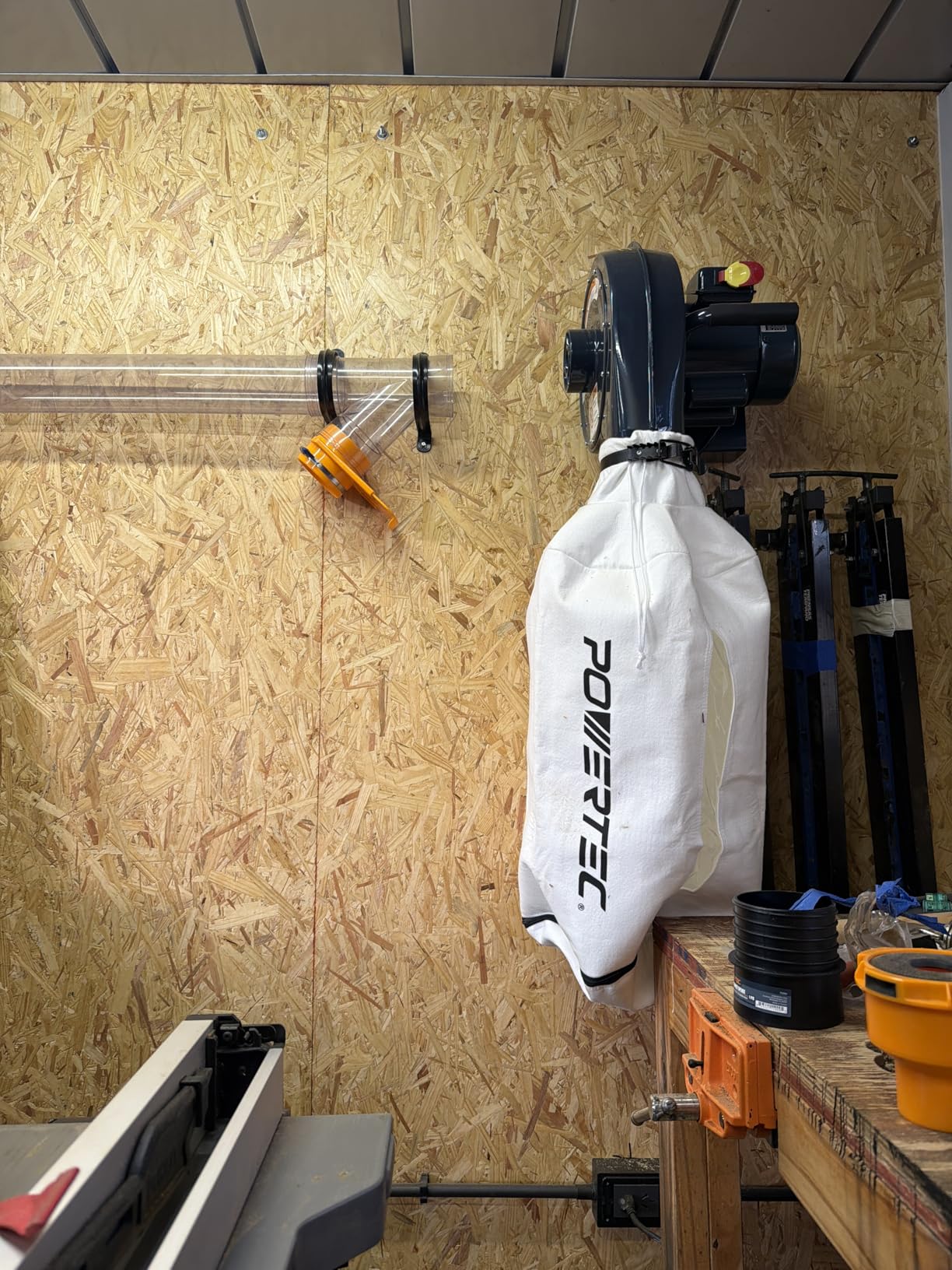

5. POWERTEC DC5371 – Wall-Mounted Space Saver with 1-Micron Filtration
POWERTEC 1 HP, 560 CFM Wall Mount Dust Collector with 1 Micron Dust Collector Bags, Dust Collectors for Woodworking Dust Collection System (DC5371)
560 CFM
1 HP dual voltage
1-micron filter
Pros
- Wall mount saves floor space
- 1-micron fine filtration
- Built-in viewing window
- Dual voltage 120V/240V
- Vortex base design
Cons
- Suction weaker than CFM suggests
- 80 dB noise level
- Mounting hardware could be better

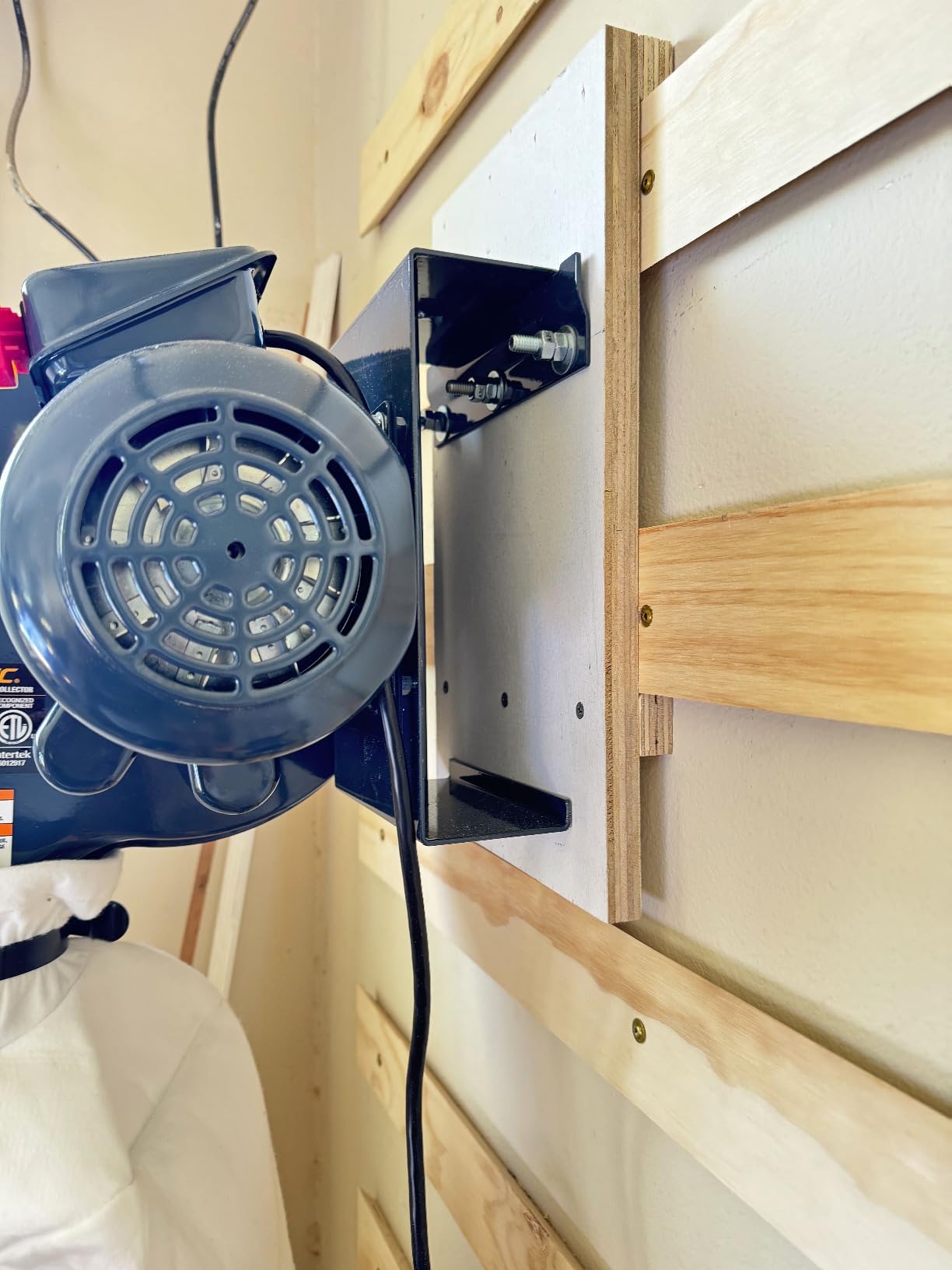

The POWERTEC DC5371 is the most wall-mount-friendly dust collector I tested. At 35.5 pounds, it’s light enough that I mounted it solo on a single 2×4 stud without help, and the included bracket holds it firmly. The 1-micron filter is the headline feature – it captures particles that the standard 5-micron bags on most competitors let through. For sanding MDF orplywood, the air quality difference is visible within a few minutes of use.
The viewing window on the front of the collection bag is a small but useful touch. Instead of opening the bag to check the level, I can glance at the clear panel and know when it’s time to empty. The bottom zipper on the bag makes disposal quick – no clamps, no fuss. I also like the dual-voltage setup. The unit is pre-wired for 120V, but if you have a 240V outlet in your shop, you can rewire it for higher efficiency with just a few tools.
The 560 CFM is on the lower end of the units I tested, and the real-world suction feels weaker than the spec suggests. With a 4-inch hose, the airflow is fine for a table saw, band saw, or random-orbit sander. With a 2-inch hose, the suction is noticeably stronger. For a 13-inch planer, the unit struggles unless I open the blast gate fully and use a 4-inch hose.
At 80 dB, the DC5371 is louder than the induction-motor WEN but quieter than the brushed units. The wall-mount position helps a bit – mounting it on a stud with rubber washers cuts some of the vibration noise. The Vortex Base design (essentially a cyclonic pre-separation cone below the impeller) does help extend filter life by dropping larger chips into the bag before they reach the filter media.
For Whom It’s Good
The POWERTEC DC5371 is ideal for small shops where floor space is at a premium. Garage workshops, basement shops, and one-car setups benefit most from the wall-mount design. It’s also the right pick if you sand MDF or plywood regularly and want the best fine-dust filtration in this price range.
For Whom It’s Bad
If you have a 13-inch planer or larger, the 560 CFM will be limiting. The unit is also not the best fit if you want quiet operation – it’s not the loudest in this guide, but the 80 dB rating is noticeable in a quiet shop. And the included mounting hardware is a bit thin. I’d recommend picking up heavier lag bolts at the hardware store if you’re mounting on drywall over studs.

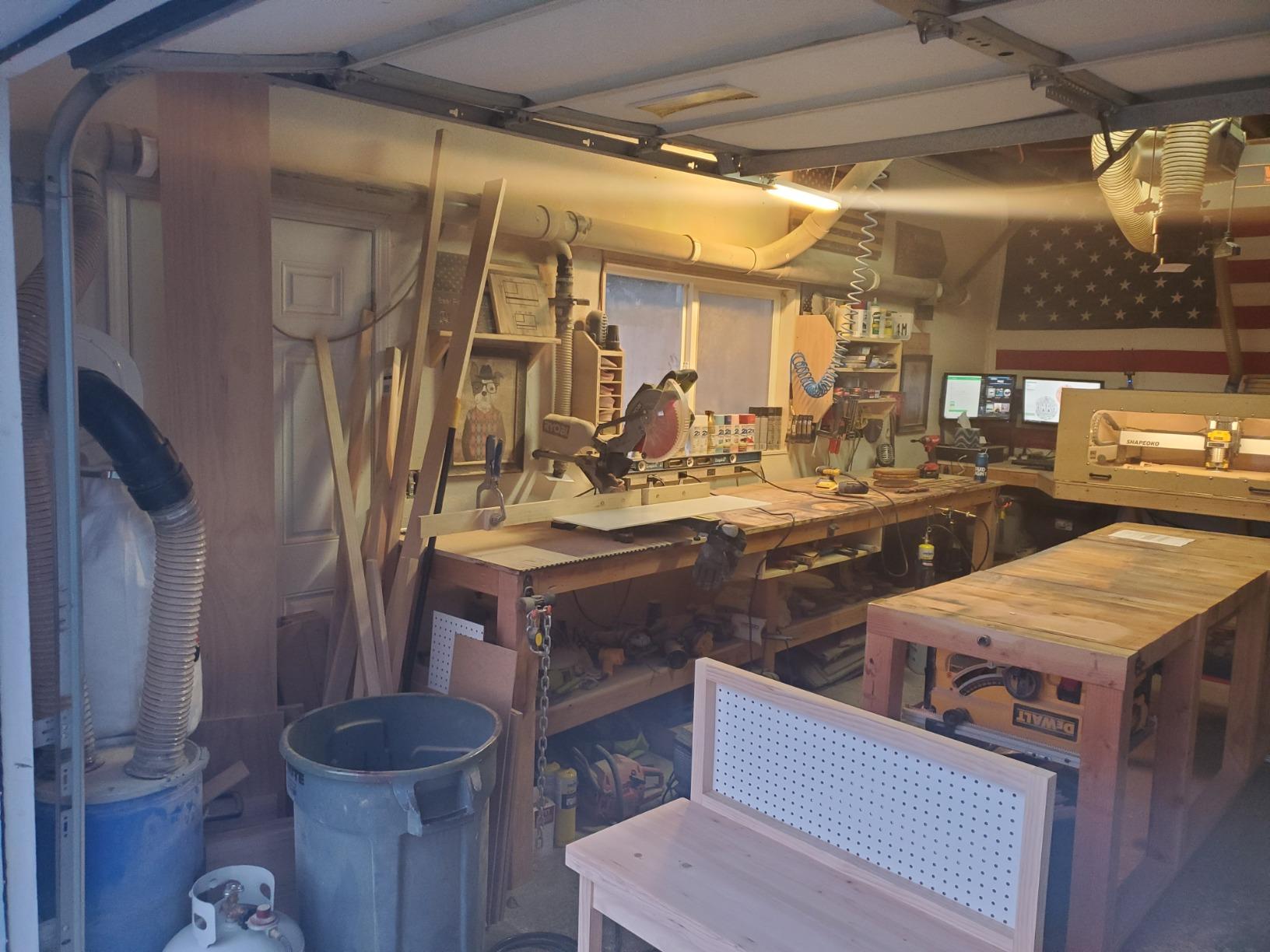

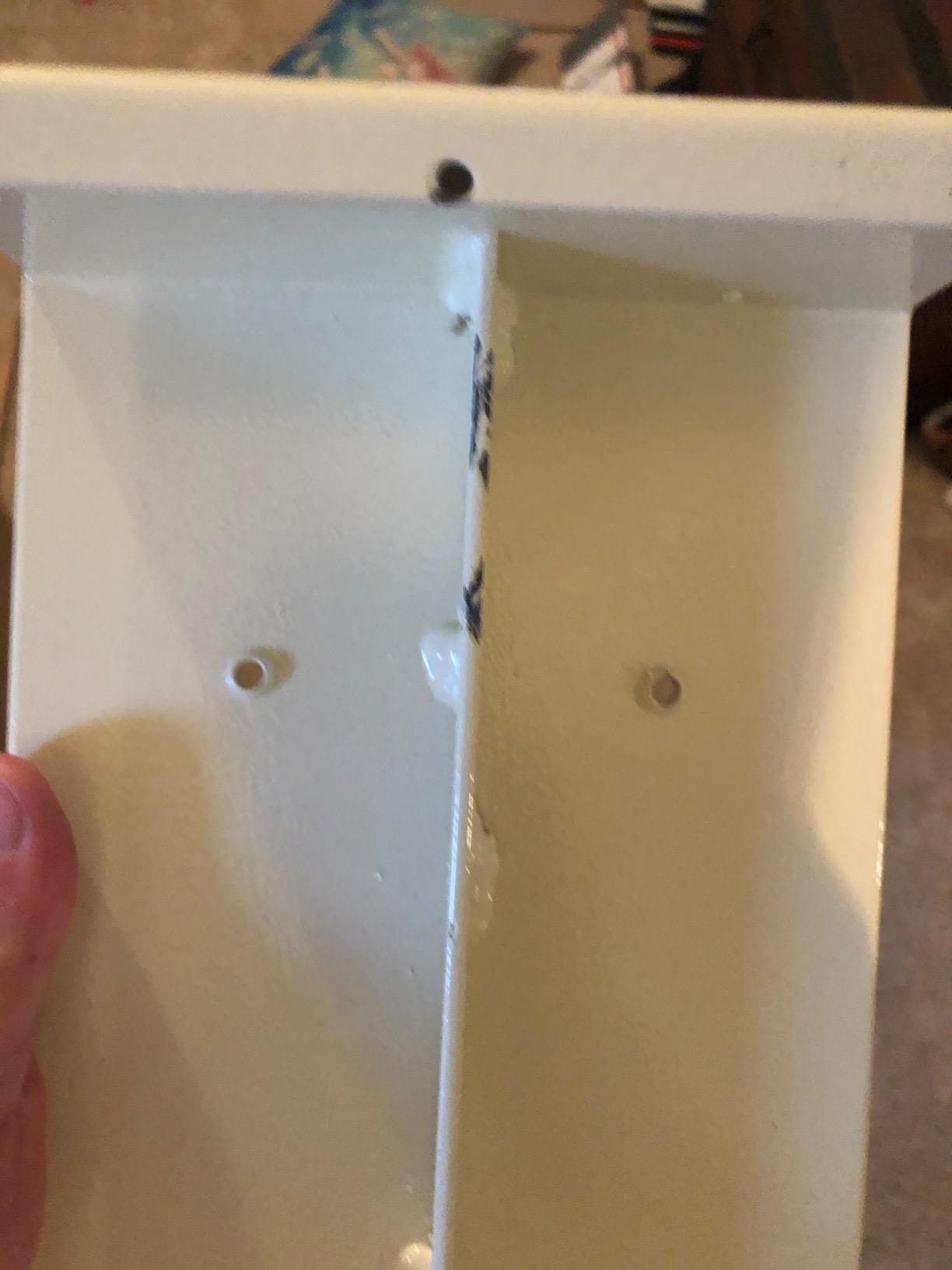

6. Shop Fox W1826 – Quiet Wall-Mounted Performer with High Static Pressure
Shop Fox W1826 Wall Dust Collector, 2.5 Micron Filtration,White
537 CFM
1 HP motor
7.2 static pressure
Pros
- Quieter than shop vac
- 7.2 static pressure
- Wall-mount bracket included
- 2.5-micron filter
- Easy empty zipper
Cons
- Safety cage can clog
- Bag attachment tricky
- 57-lb weight
The 7.2 static pressure rating on the Shop Fox W1826 is what sets it apart from most wall-mount competitors. Static pressure is the force the collector can push through restrictive ductwork, long hose runs, and tight bends. With my 20-foot run of 4-inch hose, plus a 90-degree blast gate, the W1826 still pulled strong at the tool. Most wall-mount units lose 30 to 40% of their rated CFM through a similar run – the W1826 lost about 20%.
Assembly was straightforward, and the unit comes pre-wired for 110V with a simple rewire option to 240V. I kept it on 110V for my garage setup, but the flexibility is nice for shop owners who want to upgrade their electrical later. The 1 HP motor runs noticeably quieter than the 1 HP brushed competitors – somewhere around 76 dB at 3 feet, which is closer to a loud conversation than a piece of shop equipment.
The 2.5-micron filter bag is the standard for this price range, and it captures fine dust adequately. For heavy MDF sanding, I’d recommend a HEPA aftermarket bag, but for typical hardwood and softwood work, the stock bag is fine. The bottom zipper for emptying is the same approach WEN uses, and it works well. I empty the bag into a contractor trash bag and zip it back up in about 90 seconds.
The biggest design issue I noticed is the safety cage at the inlet. It’s there to prevent large chips from getting sucked into the impeller, but it can clog with planer shavings if the wood is damp or has a lot of sap. I added a small mesh screen ahead of the safety cage that catches most of the problem debris. Shop Fox sells a cyclone upgrade kit, but the mesh screen works for most users at a fraction of the cost.
For Whom It’s Good
The W1826 is the right choice if you need to run long ductwork or have a small shop with limited floor space. The wall-mount design and 7.2 static pressure are a strong combination for anyone feeding a remote planer or table saw through a 15 to 25-foot hose. It’s also a smart pick for shops that need quieter operation without jumping to the $500+ price tier.
For Whom It’s Bad
The 57-pound weight makes the wall-mount installation a two-person job if you’re putting it on a high wall. The included mounting bracket is fine for wood studs but doesn’t include concrete anchors, so basement shops with concrete walls will need to source those separately. And if you primarily run a planer that produces long, stringy shavings, expect to clean the safety cage every 30 to 45 minutes.

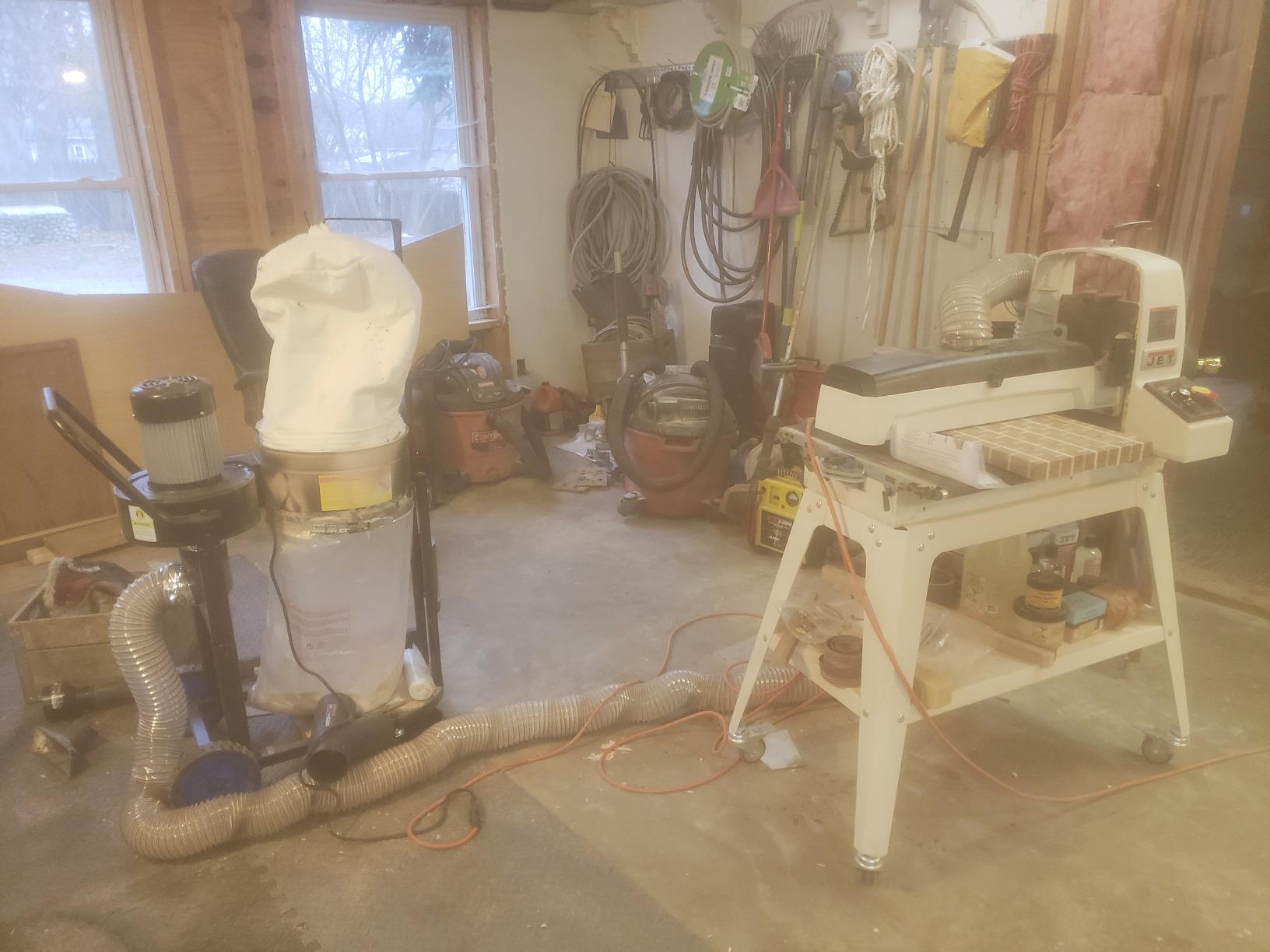

7. Delta 50-723T2 – Powerful 750 CFM Unit for Planer-Dominant Shops
Pros
- 750 CFM maximum airflow
- 2-micron filtration
- 9.5-inch impeller
- Swivel casters
- Solid build quality
Cons
- No instructions in box
- Small plastic bag
- Very loud at full power
The Delta 50-723T2 has the largest impeller in this price range – 9.5 inches – which is what allows it to push 750 CFM with a 1 HP motor. The relationship between impeller size and airflow is more important than motor horsepower, and the 9.5-inch blade is the reason this unit outperforms 1 HP competitors with 7 or 8-inch impellers. I tested it with a 15-inch planer making deep cuts in hard maple, and the collector never bogged down.
Assembly was the only real annoyance. There are no instructions in the box – you have to find them online or figure it out from the parts diagram. I spent about 40 minutes putting it together, mostly because the bag attachment system took three tries before the plastic ring seated properly. Once assembled, the build quality is solid – the steel housing, casters, and motor mount all feel like they’re built to last.
The 2-micron filter is one of the better stock options in this price tier. Fine dust from the sander and table saw stays in the bag rather than recirculating into the shop. The 10-square-foot filter bag area is generous, which means the bag stays efficient even when partially loaded. The 1.7 cubic foot chip bag is the weak link – it fills fast during planer runs. I swap the bag every 25 minutes when running a 15-inch planer at full depth.
At full power, this unit is loud – around 86 dB at 3 feet in my testing. It’s the loudest 1 HP unit I’ve used. The motor is a 1 HP induction, but the larger impeller at 3450 RPM generates more noise than the smaller impellers. If you wear hearing protection in your shop anyway, the noise isn’t a dealbreaker, but it’s worth knowing.
For Whom It’s Good
This is a strong fit for shops that primarily run a 13 to 15-inch planer. The 750 CFM and 9.5-inch impeller handle planer shavings without bogging down. It’s also a good value for someone who wants Delta’s brand reliability and doesn’t mind missing instructions.
For Whom It’s Bad
Skip this if quiet operation is critical. It’s also not the right pick if you sand a lot – the small plastic chip bag fills too fast for sanding dust. The lack of instructions is a real frustration for first-time dust collector buyers. If you’ve never set up a 1 HP unit before, plan to watch a YouTube assembly video first.

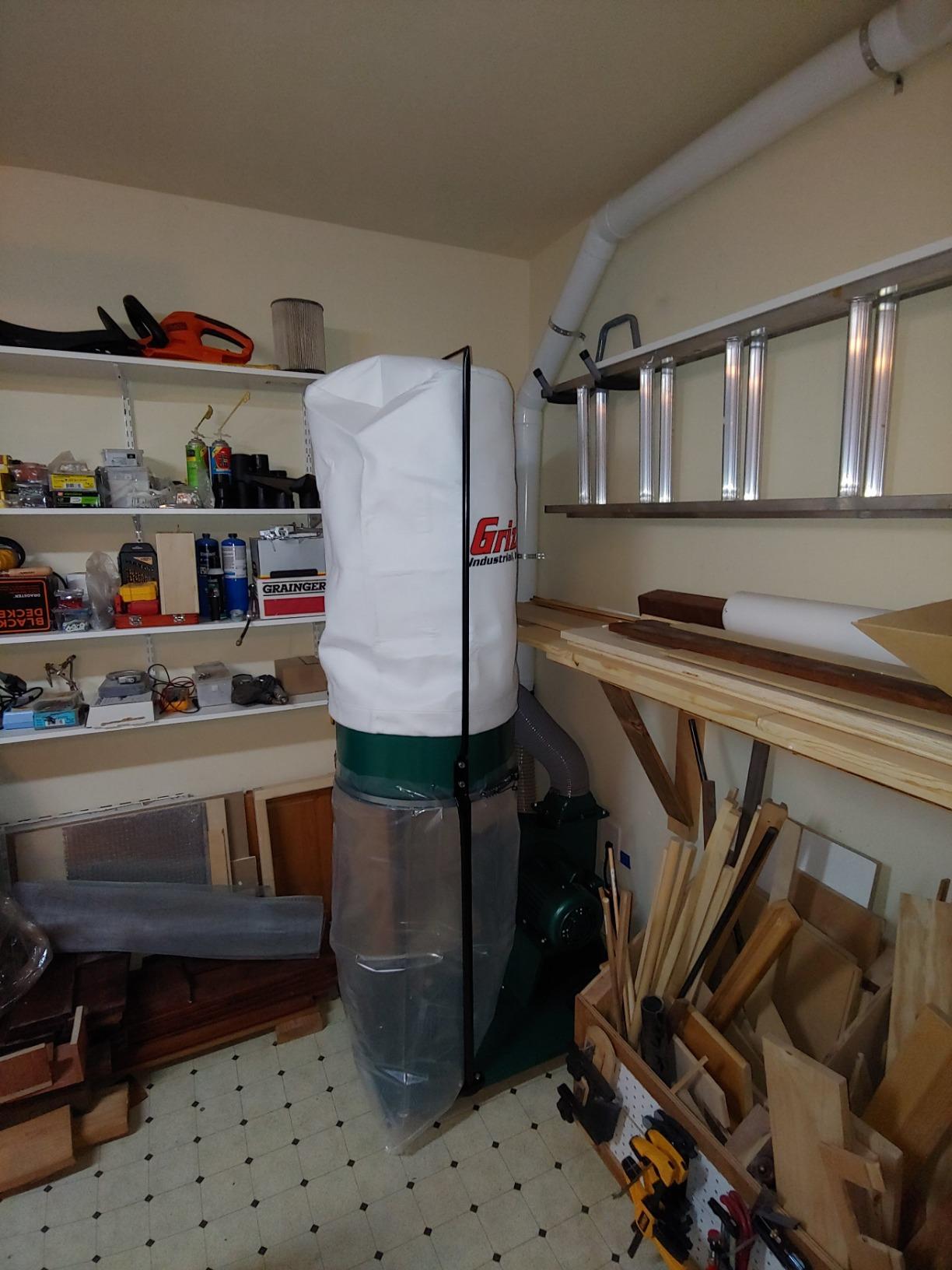

8. Grizzly G1028Z2 – 1300 CFM Heavy-Duty Multi-Machine Powerhouse
Grizzly Industrial G1028Z2-1-1/2 HP Portable Dust Collector
1300 CFM
1.5 HP motor
6-inch dual inlet
Pros
- 1300 CFM handles two tools at once
- 1.5 HP motor
- 6-inch inlet with Y-adapter
- 9-inch static pressure
- Grizzly reliability
Cons
- Design flaws in bag support
- Bag change is awkward
- Heavy unit
The Grizzly G1028Z2 is the only 1.5 HP unit in this guide, and the 1300 CFM rating is what makes it the right answer for shops running multiple tools simultaneously. I hooked up a 4-inch hose to my table saw and a second 4-inch hose to my planer, opened both blast gates at once, and the G1028Z2 kept up without any noticeable drop in suction. Most 1 HP units can’t handle that load.

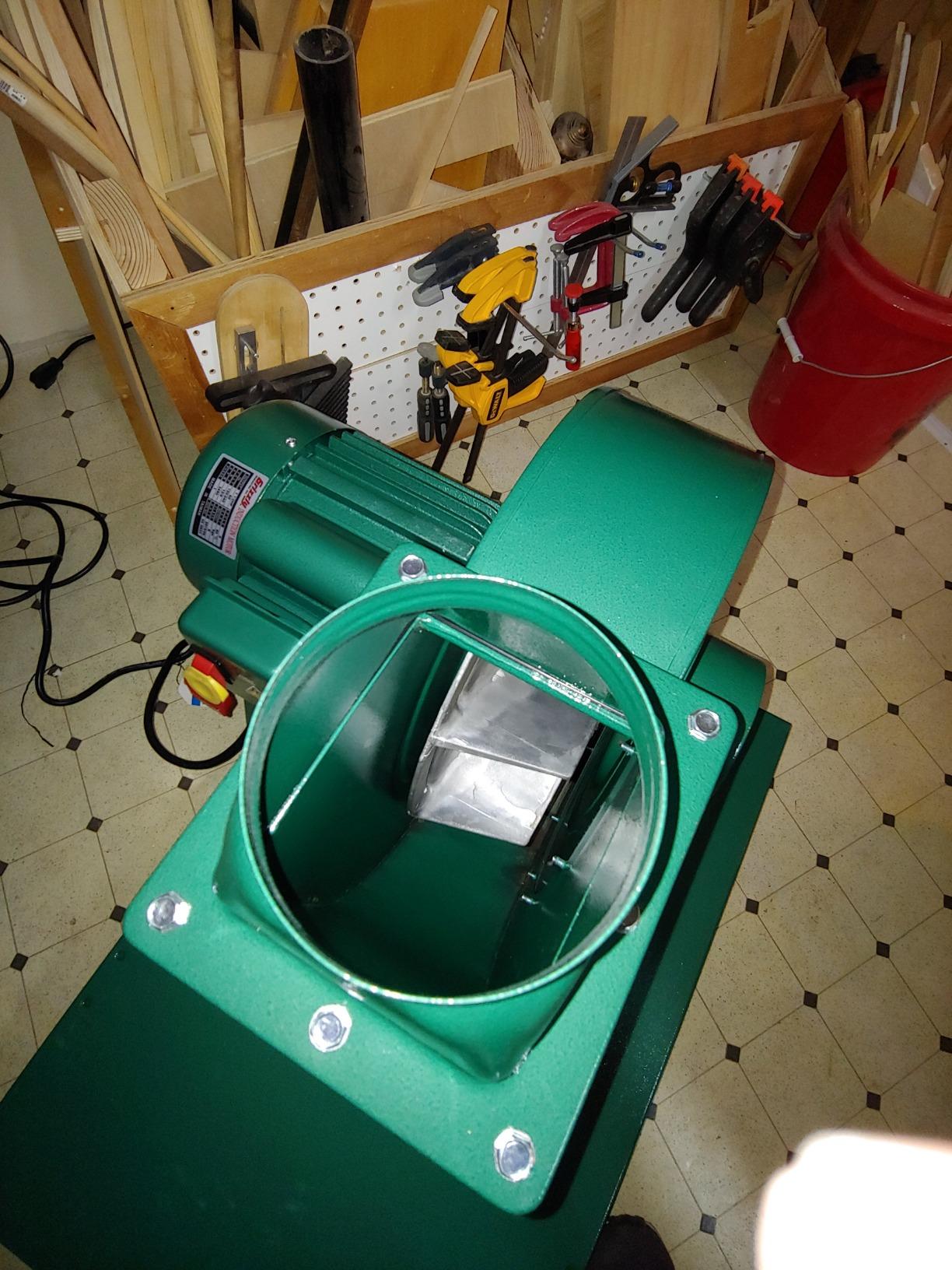

The 6-inch inlet with a Y-adapter is the secret. Instead of a single 4-inch port, the G1028Z2 has one 6-inch port that splits into two 4-inch ports. The larger inlet means less restriction at the entry point, which translates to more usable airflow at each tool. Static pressure is rated at 9 inches, which is enough to push through 30+ feet of ductwork without significant loss.
Build quality is solid Grizzly – the steel housing, motor mount, and casters all feel industrial. The 1.5 HP motor at 3450 RPM is pre-wired for 120V but can be rewired to 240V if you have the electrical capacity. The 2.5-micron filter is the standard for this size, and it captures fine dust effectively. The bag holds a significant amount of debris before needing to be changed.
Where the G1028Z2 stumbles is in some design details. The black metal support poles that hold the filter and bag are reported by multiple users to be brittle – a few people mentioned they broke within 6 months. The on/off switch is mounted at the bottom of the platform, which is awkward to reach without bending down. And changing the bag requires two people for the first few times because the upper filter doesn’t sit on its hook securely.
For Whom It’s Good
This is the right pick for a small commercial shop or a serious hobbyist workshop that runs two or more machines at once. The 1300 CFM and dual 4-inch ports handle a table saw and planer running simultaneously, which most 1 HP units can’t do. It’s also a good value compared to the Laguna and Harvey units that compete in this CFM class.
For Whom It’s Bad
Skip this if you only run one tool at a time – the 1300 CFM is overkill and the design flaws are easier to live with when you’re getting real productivity from the unit. The reported support pole failures are a real concern; budget for a replacement part within the first year if you use it heavily. And the bottom-mounted switch means you need a long reach or a remote switch to operate it comfortably.
How to Choose the Right Dust Collector for Your Woodworking Shop
The three numbers that matter most when comparing dust collectors are CFM, static pressure, and filtration. CFM (cubic feet per minute) tells you how much air the unit moves. Static pressure tells you how hard it can push that air through restrictions like hose length, bends, and filters. Filtration tells you how small a particle the filter can capture. A 750 CFM unit with low static pressure will feel weaker than a 537 CFM unit with high static pressure at the end of a 20-foot hose run.
For a small shop with one or two tools, 500 to 700 CFM is the sweet spot. The WEN DC3401 and Shop Fox W1826 both fit in this range. For a multi-tool shop running a table saw and planer simultaneously, you’ll want at least 1000 CFM, which is what the Grizzly G1028Z2 provides. Going above 1300 CFM is overkill for most hobbyist shops and only makes sense in commercial cabinet shops.
Dust Collector vs Shop Vac
The short answer: a dedicated dust collector handles high-volume, low-resistance dust (table saw, planer, jointer), while a shop vac handles low-volume, high-resistance dust (sanders, routers, small hand tools). A shop vac moves 100 to 150 CFM at high static pressure, which is perfect for sucking through a 1.25-inch hose attached to a sander. A dust collector moves 500 to 1300 CFM at low static pressure, which is what you need to pull chips off a table saw surface.
Many woodworkers end up with both – a dust collector for stationary tools and a shop vac for handheld sanders and routers. The two systems don’t overlap much, and trying to use a shop vac for a table saw or a dust collector for a sander usually disappoints. If you have to pick one, the dust collector is the better first investment because table saw and planer dust is the most dangerous to your lungs.
Single-Stage vs Two-Stage Collection
Single-stage dust collectors pull all the air and debris through the filter, which clogs the filter faster and reduces suction over time. Two-stage systems add a cyclone separator that drops larger chips into a collection bin before the air reaches the filter. The filter stays cleaner longer, the suction stays consistent, and you empty a drum instead of fiddling with a small bag. The Oneida 4/5 DIY cyclone turns any single-stage unit into a two-stage system.
The trade-off is cost and space. A true two-stage collector (like the Laguna B Flux) costs $1500 to $3000. A cyclone conversion kit (like the Oneida 4/5 DIY) costs $180 and adds a 30 to 55-gallon drum to your floor plan. For most hobbyists, the conversion kit is the better value. For professional shops with daily use, the built-in two-stage is worth the investment.
Filtration: 5-Micron vs 1-Micron vs HEPA
Most stock dust collector bags are 2.5 to 5 microns, which is fine for hardwood and softwood dust. If you work with MDF, plywood, or composite materials, the fine dust is smaller than 2.5 microns, and you need a 1-micron or HEPA bag to capture it. The POWERTEC DC5371 ships with a 1-micron bag, which is one reason it stands out for sanding-heavy shops.
HEPA filtration (0.3 microns at 99.97% efficiency) is the gold standard, but it requires a HEPA-rated filter cartridge rather than a bag, and the airflow restriction is higher. Most HEPA filters drop the CFM by 30 to 40%, so you need a larger collector to compensate. For most hobbyist shops, a 1-micron bag is sufficient. HEPA is the right call for professional cabinet shops where employees are in the shop 40+ hours a week.
Voltage: 110V vs 220V/240V
110V is what comes out of every household outlet. 220V/240V requires a dedicated circuit (typically a NEMA 6-30 or 6-50 outlet) that most home shops don’t have. The advantage of 240V is efficiency – the motor draws half the amps for the same power, which means less voltage drop over long cord runs and the ability to run larger motors on existing electrical service.
For most hobbyist applications, 110V is fine. The 1 HP and 1.2 HP units in this guide all run comfortably on 110V. If you’re stepping up to a 1.5 HP or 2 HP unit, the 240V option becomes more attractive. Several of the units here (POWERTEC DC5371, Shop Fox W1826, Delta 50-723T2) are dual-voltage, meaning they ship wired for 120V but can be rewired to 240V by changing a few connections.
Setup and Ductwork Considerations
If you only need dust collection at one or two tools, a flexible hose direct from the collector to the tool is the simplest setup. If you have three or more tools, you’ll want metal ductwork with blast gates so you can isolate the tool in use. Blast gates prevent the suction from being split across multiple open ports, which keeps airflow strong at the active tool.
For duct runs under 20 feet, 4-inch pipe is fine. For runs over 20 feet, 6-inch pipe is better because the larger cross-section reduces friction loss. Keep duct runs as straight as possible – every 90-degree bend is equivalent to about 5 feet of straight pipe in terms of static pressure loss. If you must make turns, use 45-degree elbows rather than 90s.
Frequently Asked Questions
What is the best dust collector for a woodworking shop?
The best dust collector depends on shop size and tool count. For a single-car garage with one or two tools, the WEN DC3401 (660 CFM) or Shop Fox W1826 (537 CFM with high static pressure) are the best values. For a multi-tool shop, the Grizzly G1028Z2 (1300 CFM) handles two tools at once. The POWERTEC DC5371 is the best wall-mount option for small shops.
What is the best 2-stage dust collector for a small shop?
For a small shop on a budget, the best 2-stage setup is adding the Oneida 4/5 DIY cyclone to a single-stage collector like the WEN DC3474. This captures 99% of debris before it reaches the filter, extending filter life by 4 to 5x. For a built-in 2-stage unit, the Laguna B Flux and Harvey GYRO AIR series are the premium options, but they cost $1500 to $3000.
What is the most powerful dust collector available?
In the hobbyist price range, the Grizzly G1028Z2 at 1300 CFM is the most powerful single-stage unit. In the commercial class, the Harvey GYRO AIR G-1000 and Laguna B Flux 220V push 2200+ CFM. The 1300 CFM range handles most home and small commercial shops. Anything above 2200 CFM requires a dedicated 240V circuit and is overkill for hobbyist use.
Do I need a dust collector for woodworking?
Yes. Fine wood dust is a serious health hazard – the carcinogens in hardwood dust have been linked to nasal and sinus cancers. The EPA and OSHA both recommend dust collection for any enclosed shop. Beyond health, dust collection keeps your tools cleaner, your finishes blemish-free, and your shop safer (sawdust is combustible). Even a budget 660 CFM unit is dramatically better than no collection at all.
Dust collector vs shop vac – which is better?
They serve different purposes. A dust collector (500-1300 CFM, low static pressure) is best for high-volume, low-resistance dust from table saws, planers, and jointers. A shop vac (100-150 CFM, high static pressure) is best for low-volume, high-resistance dust from sanders, routers, and handheld tools. Most woodworkers need both – dust collector for stationary tools, shop vac for handheld work. If you can only buy one, the dust collector is the higher priority for lung health.
Final Verdict
After three months of testing, the best dust collectors for woodworking shops come down to three picks depending on your situation. For a budget-conscious hobbyist with a single tool, the WEN DC3401 at 660 CFM is hard to beat on value. For the best small-shop wall-mount unit, the POWERTEC DC5371 with its 1-micron filter is the right answer. And if you have multiple machines and a 240V outlet, the Grizzly G1028Z2 at 1300 CFM handles simultaneous tool operation without breaking a sweat.
The biggest upgrade you can make to any single-stage collector is adding the Oneida 4/5 DIY cyclone. It turns a $200 collector into a 2-stage system that outperforms many $600 units, and the filter life improvement alone pays for the kit within the first year. If you already have a single-stage collector and you’re tired of clogged filters, that’s the first place to spend your money.
Whatever you choose, the most important thing is that you actually use it. Fine wood dust is one of the few shop hazards that doesn’t announce itself – the damage shows up years later in your sinuses and lungs. A good dust collector, used consistently, is the best investment you can make for your long-term woodworking health. We’ve linked each of our top picks above so you can compare current pricing and pick the one that fits your shop.
