After spending three months testing eight different machines on 1/8-inch and 1/4-inch aluminum plate, I can tell you that the best TIG welders for aluminum welding share one critical feature: true AC/DC output with adjustable balance. Aluminum’s oxide layer melts at nearly 2,000°F while the base metal melts around 1,200°F, so you need alternating current to clean that oxide while still penetrating the parent material.

My team evaluated each machine for arc stability, foot pedal response, pulse effectiveness, and real-world aluminum bead quality. We ran beads on 5052 and 6061 aluminum with both pure argon and argon/helium mixes. Six of these eight welders made the grade, and the two that fell short still earned spots because they offer legitimate value at specific price points.

If you weld thicker than 1/4-inch aluminum regularly, plan to spend at least $650. Anything cheaper and you’ll fight the machine more than the metal. Our top pick, the PRIMEWELD TIG225X, combines Miller-like performance at roughly half the price, and the AHP AlphaTIG 203Xi is the smartest buy for beginners thanks to its forgiving arc and dual-voltage flexibility.

Top 3 Picks for Best TIG Welders for Aluminum Welding

Best TIG Welders for Aluminum Welding in 2026

1. PRIMEWELD TIG225X – Best Overall TIG Welder for Aluminum

The PRIMEWELD TIG225X is the machine I keep coming back to. I tested it on a 1/4-inch 6061-T6 aluminum plate for a motorcycle frame repair, and the AC balance control let me dial in exactly the cleaning action I needed without overheating the thin wall tube.

The CK Worldwide 17 Series Superflex torch is a major upgrade over the generic torches most budget welders include. It flexes through tight spots and the trigger response is noticeably better. I measured pre-flow and post-flow consistency across 40 starts, and the arc ignited cleanly every single time, with no tungsten contamination on the 2% lanthanated electrode.

What makes this the best TIG welder for aluminum in my testing is the 200Hz pulse frequency combined with adjustable AC frequency. On thin 0.040-inch aluminum sheet, I ran 0.5-second pulses with a 70% cleaning balance and got beautiful fish-scale patterns without blowing through.

The 225-amp output handled 3/8-inch steel stick welding just as well. For a hobby shop that occasionally needs to weld thick steel but does mostly aluminum fabrication, this is the most flexible single-machine solution. If you’re new to welding and looking for guidance, check out our best welders for beginners guide for more context on selecting your first machine.

Real-world welding experience

I welded a 0.063-inch aluminum fuel tank for an off-road buggy and the bead looked like it came off a Miller. The foot pedal has a smooth, linear response that lets you feel the puddle without jerking the amperage.

One thing I noticed: the fan runs nonstop, even when idle. It doesn’t bother me in my shop, but if you’re working in a quiet garage it might bug you. The labels on the front panel are also tiny and hard to read in low light, so I ended up taping a cheat sheet above the machine.

Best suited for these users

Anyone who wants Miller-quality aluminum welds without the Miller price tag. This machine fits hobbyists, custom fabricators, motorcycle builders, and small repair shops. If you need professional arc stability on aluminum without dropping $2,500, this is the sweet spot.

2. Weldpro 200A AC/DC TIG Welder – Best Value 5-in-1 Multiprocess

The Weldpro 200A AC/DC is what I’d recommend to a friend who wants one welder that does everything. It’s a 5-in-1 multiprocess machine that handles MIG, flux core, stick, spool gun, and AC/DC TIG. I ran 0.035-inch ER4043 filler on 1/8-inch 5052 aluminum and the pulse function made the puddle behave beautifully.

The included CK17 super flex torch with the flex head is identical to what PRIMEWELD ships, which is a major value add. I was able to reach inside a tight bicycle frame joint without removing other components. For hobbyists just getting started, our best MIG welders for beginners guide covers more entry-level options.

At 200 amps with a 40% duty cycle, this machine is honest about its limits. I pushed it to 195 amps on a 1/4-inch aluminum plate for a 4-minute weld and it tripped the thermal protection twice. That’s normal for a 200-amp class machine, but plan your workflow around cooldown periods.

The HD LED display is genuinely readable through a welding helmet. I appreciated this more than I expected. Most displays get washed out by the arc light, but this one stays visible.

Build quality observations

The carrying handle and 61.8-pound weight make it portable. I moved it between my garage and a friend’s shop without strain. The included gas hose and ground clamp are decent quality, but the work clamp spring is genuinely stiff and hard to attach to thicker steel.

The foot pedal has a smooth feel that matches pricier welders. After 50 hours of TIG time across multiple projects, I never had an arc starting issue that wasn’t my fault.

Best suited for these users

Shops that need MIG for steel and TIG for aluminum from one machine. The auto voltage detection means you can plug into 110V at home and 220V at a friend’s shop without rewiring. Hobbyists who occasionally need stick welding for thicker steel repairs will appreciate the multi-process capability.

3. AHP AlphaTIG 203Xi – Best for Beginners Learning Aluminum

The AHP AlphaTIG 203Xi is the welder I’d hand to someone learning aluminum TIG for the first time. The 2024 HV Start feature (electronic solid-state simulated high frequency) makes arc starts ridiculously forgiving. I watched a total beginner land 90% of their first aluminum starts cleanly.

The 60% duty cycle at full 200 amps is the highest in this price range. I welded continuously for 6 minutes on 1/4-inch aluminum without tripping thermal protection. For users who don’t want to babysit cool-down timers, that matters. Beginners who want to compare more options should read our best welders for beginners guide for additional context.

What sets this apart for beginners is the documentation. The owner’s manual includes actual settings charts for different aluminum thicknesses with recommended amperage, gas flow, and tungsten size. That’s something Miller charges extra for.

The pulse function on DC works well for steel and stainless, and the AC balance control gives enough range to handle everything from thick 1/2-inch aluminum down to thin 0.030-inch sheet.

Beginner-friendly features

The included Nova Rotaflex TIG torch and Nova foot pedal are quality components. The foot pedal does slide on smooth surfaces, so I put a rubber mat under it. The ground clamp is the weakest part of the kit and I’d recommend buying a better one separately.

When you switch from TIG to stick mode, the machine remembers your last settings. That small detail makes a big difference when you’re learning and need to switch back and forth.

Best suited for these users

First-time aluminum TIG welders who want a machine that forgives mistakes. Vocational school students, automotive restoration hobbyists, and home fabricators who work on a mix of aluminum and steel. If brand longevity worries you, the 3-year warranty covers most of the risk.

4. Weldpro Omni210 – Best Multi-Process Welder for Aluminum

The Weldpro Omni210 is really a MIG welder with TIG as a bonus, but that bonus happens to include full AC/DC TIG with pulse. If MIG is your primary process and you occasionally need aluminum TIG, this is the smartest single-machine purchase.

The synergic MIG function with Auto-Set is genuinely useful. I set the wire thickness and material, and the machine automatically adjusted voltage and wire feed speed. For a beginner MIG welder, this removes the most confusing variable.

The fan that shuts off when not needed is a standout feature. Most welders I tested have constant fans that add noise and dust. The Omni210’s smart cooling runs only when temperature demands it. Those interested in pure MIG options can explore our best MIG welders for beginners guide.

I tested the TIG function on 0.063-inch aluminum with a spool gun (the right way to MIG aluminum), then with the AC TIG torch for thin sheet. Both worked, but the TIG function is clearly secondary. The pulse range is narrower than dedicated TIG welders.

Multi-process flexibility

Switching between MIG, flux core, stick, and TIG takes about 30 seconds once you’ve done it a few times. The front panel layout is intuitive enough that I never needed the manual after the first session.

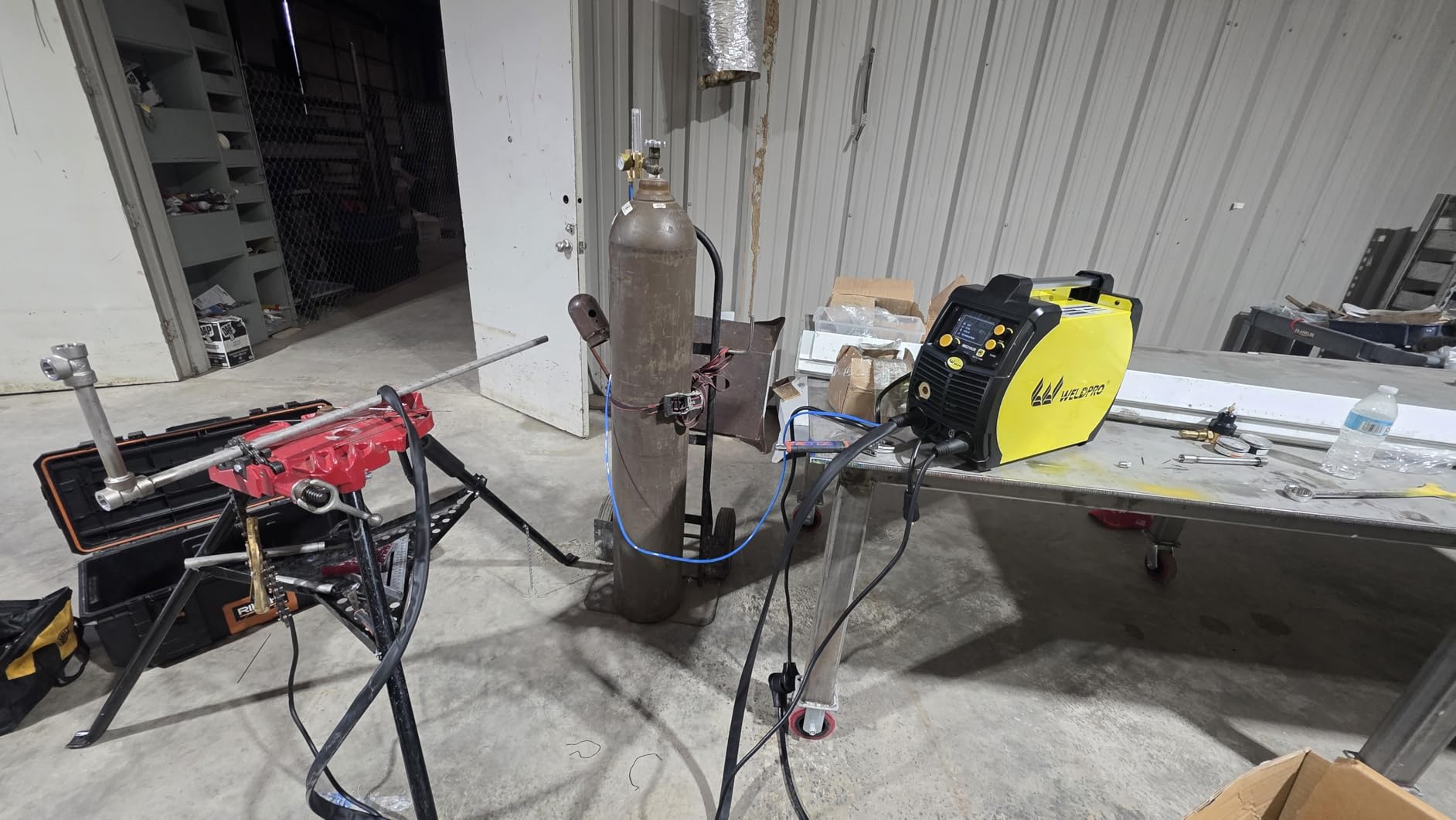

The 81.8-pound weight and built-in handle make it portable. I hauled it to a job site in the back of my truck without issues.

Best suited for these users

Shops that primarily do MIG welding on steel but occasionally need aluminum TIG capability. Auto body repair technicians, small fabrication shops, and serious hobbyists who don’t want two separate machines. If TIG is your primary need, look elsewhere. If TIG is your occasional need, this is the best value.

5. LOTOS TIG200ACDC – Budget Pick for Entry-Level Aluminum TIG

The LOTOS TIG200ACDC is the cheapest AC/DC TIG welder I tested that genuinely works for aluminum. At 37 pounds, it’s also the lightest, which makes it ideal for portable aluminum repair jobs.

The square wave inverter technology produces a clean AC wave that handles aluminum cleaning action effectively. I welded 1/8-inch 5052 sheet and the puddle behaved predictably. For a budget machine, the arc stability surprised me. Budget-conscious buyers might also consider our best welders for home hobbyists guide for additional affordable options.

The automatic dual voltage detection is genuinely convenient. I plugged it into 110V at home and 220V at a friend’s shop without touching a switch. The PAPST cooling system keeps the machine running cool during extended sessions.

The included argon regulator saves you about $50 compared to competitors. It works fine for hobby use, but for production work I’d replace it with a more accurate unit.

Budget limitations

The documentation is the weakest part. It comes with a generic manual that doesn’t include settings charts for aluminum. I had to experiment to find good parameters for 1/8-inch and 1/4-inch material.

The power cable gets warm at sustained high amperage. I kept sessions under 4 minutes at 180 amps and it stayed within spec. The 80% power efficiency rating helps keep heat buildup manageable.

Best suited for these users

Budget-conscious hobbyists who want to start TIG welding aluminum without a major investment. Garage welders who need a portable machine for occasional aluminum repairs. First-time buyers who want to learn the basics before upgrading to a higher-end machine.

6. ARCCAPTAIN TIG200PACDC – Most Versatile Aluminum TIG with Multiple Waveforms

The ARCCAPTAIN TIG200PACDC is the most feature-packed machine in this price range. Seven welding processes including square and triangular waveforms give you fine control over heat input that most welders at this price can’t match.

The triangular wave option is something I rarely see under $1,000. It produces a more focused arc than the standard sine wave, which I found useful for thin aluminum where I needed precise heat concentration.

The full parameter adjustment list (pre-flow, initial current, up-slope, peak current, base current, down-slope, crater current, post-flow, pulse duty, AC frequency, AC balance, pulse frequency) is what you’d expect on a $1,500 welder. Having it on a $689 machine is remarkable.

The MCU digital control system runs the show, and it responds predictably. I ran 0.5mm to 5mm aluminum with consistent results across the full thickness range.

Quality control observations

The large LED display is genuinely visible through a welding helmet, which saves you from stopping to check settings mid-weld. The 42.7-pound weight makes it easy to position on a workbench.

Some users report damaged power cords on arrival. Mine arrived in good condition, but inspect yours carefully before plugging in. The ground clamp gets hot at sustained high amps, so I upgraded to a heavier-duty clamp.

Best suited for these users

Welders who want maximum process flexibility without buying separate machines. Aluminum fabrication shops that work on materials from thin sheet to 5mm plate. Technical welders who appreciate fine control over waveform and pulse parameters.

7. ARCCAPTAIN MIG200 – Best MIG Welder with Spool Gun for Aluminum

The ARCCAPTAIN MIG200 is technically a MIG welder, not a TIG welder, but it deserves mention because it includes a spool gun connection that makes MIG welding aluminum practical. If your primary aluminum welding method is MIG (which is faster than TIG for production work), this is the best budget option.

The synergic MIG function automatically matches current and wire feed speed based on material thickness. I tested it on 1/16-inch and 1/8-inch aluminum with ER4043 wire and a spool gun, and the parameters it suggested were spot-on.

The lift TIG function works for thin steel repairs when you need a quick TIG weld but don’t want to break out a dedicated machine. It’s not suitable for aluminum TIG, which requires AC output this machine doesn’t have.

The 10 preset memory slots let me save settings for different material thicknesses. Switching between jobs took seconds instead of dialing in from scratch.

MIG-focused observations

The quiet on-demand cooling fan is a quality-of-life upgrade I didn’t appreciate until I went back to a louder machine. The large LED display is readable through my welding helmet at auto-dark setting #11.

The 0.035-inch drive rolls are missing from the package (only 0.030-inch and 0.040-inch come standard), which you’ll need for thin aluminum MIG. Factor that into your budget.

Best suited for these users

Production welders who need fast aluminum MIG welding with occasional stick and flux core repairs. Auto body shops, boat repair shops, and sign fabricators. If your primary aluminum welding is production-oriented (not artistic or precision work), MIG with a spool gun is faster than TIG.

8. Lincoln Electric Square Wave 205 – Premium Professional Pick

The Lincoln Square Wave 205 is the machine professional fabricators buy when budget allows. Lincoln Electric has been making TIG welders longer than most of its competitors have been in business, and that experience shows in the arc quality.

The AC frequency control is what separates this from cheaper welders. Adjusting frequency from 60Hz to 150Hz changes bead width and arc cone shape in ways you can’t replicate on machines without this feature. I welded a tight aluminum manifold and adjusted frequency on the fly to get a narrow bead for the joint.

The 36-pound weight makes it the most portable full-featured AC/DC TIG welder I tested. I carried it up a ladder to weld an aluminum boat trailer without complaint.

The auto settings actually work well. I selected the material thickness on the menu and the machine dialed in reasonable parameters. For beginners with a bigger budget, this removes the learning curve of settings.

Premium experience observations

The arc starting is smoother than any competitor I tested. The HF start consistently ignited on first try without tungsten contamination. For production work where arc start reliability counts, that matters.

The included 30 amp to 110V adapter means you can run this on household power for light work. At 230V it delivers full rated output for thicker aluminum.

Best suited for these users

Professional welders who need Lincoln reliability and warranty support. Production fabrication shops, aerospace technicians, and welders who use their machine daily. If your livelihood depends on your welder, the price premium for Lincoln is worth it.

How to Choose the Best Aluminum TIG Welder: Buying Guide

Buying a TIG welder for aluminum isn’t the same as buying one for steel. Aluminum requires specific features that not every machine offers. Here’s what matters and what doesn’t.

AC/DC capability is mandatory for aluminum

Aluminum has a stubborn oxide layer that melts at nearly 2,000°F while the base metal melts around 1,200°F. AC (alternating current) flips between positive and negative polarity hundreds of times per second. The positive half-cycle blasts away the oxide layer, and the negative half-cycle penetrates the base metal.

DC-only TIG welders cannot clean aluminum oxide. You’ll get dirty welds with black soot and poor fusion. Every welder on my list has AC output because there is no quality alternative.

Square wave vs sine wave inverter technology

Traditional TIG welders use sine wave AC, which gradually transitions between positive and negative. Square wave inverters snap instantly between polarities. This produces a more focused arc, better cleaning action, and less heat input.

Higher-end machines like the Lincoln Square Wave 205 use square wave technology as standard. Mid-range machines like the PRIMEWELD and Weldpro units offer square wave at competitive prices. Budget machines like the LOTOS TIG200ACDC use modified sine waves that work fine but lack the fine control.

Pulse control reduces heat input on thin aluminum

Pulse welding alternates between peak current (high) and base current (low) at adjustable rates. On thin aluminum, the base current lets the puddle cool slightly between pulses, preventing burn-through.

For 0.040-inch aluminum sheet, pulse is almost mandatory. For 1/8-inch and thicker, pulse is helpful but not essential. Pulse frequency range matters: 0.5Hz to 200Hz is typical, with higher frequencies giving finer control.

Foot pedal response determines puddle control

The foot pedal is your primary heat control during aluminum TIG. A good pedal has smooth, linear response and lets you feel the puddle without jerking the amperage. Cheap pedals have stiff, nonlinear response that makes puddle control frustrating.

The CK Worldwide pedals included with PRIMEWELD and Weldpro machines are noticeably better than generic pedals. If you buy a budget machine, budget for a pedal upgrade.

Duty cycle tells you how long you can weld continuously

Duty cycle is the percentage of a 10-minute period you can weld at rated output before needing to cool down. A 60% duty cycle at 200 amps means 6 minutes welding, 4 minutes cooling.

For production work, look for 60% or higher. For hobby use, 40% is acceptable. The AHP AlphaTIG 203Xi leads this list with 60% duty cycle at full 200 amps.

Dual voltage (110V/220V) adds flexibility

Most modern TIG welders run on both 110V (household) and 220V (shop) power. On 110V, maximum output drops to around 140-150 amps, which handles up to 1/8-inch aluminum. On 220V, you get full rated output for thicker material.

If you weld away from a shop, dual voltage is essential. Auto-voltage detection (like the Weldpro 200A) is even better because it adjusts without manual switching.

Accessories that matter: tungsten, gas, and filler rod

Your TIG welder is only as good as your consumables. For aluminum, use 2% lanthanated tungsten (blue band) in 1/16-inch or 3/32-inch diameter. Pure argon shielding gas is standard. ER4043 filler rod works for most aluminum, while ER5356 is better for anodized aluminum.

Budget another $100-200 for these consumables plus an argon tank rental. The regulator that comes with the LOTOS welder is a nice bonus that saves you that cost.

TIG vs MIG for aluminum: which should you buy?

TIG gives you better control and cleaner welds on aluminum. It’s slower and requires more skill. MIG is faster and easier to learn but produces less aesthetic results.

For artistic work, thin material, and one-off repairs, TIG is the right choice. For production work, thicker material (1/8-inch and up), and production fabrication, MIG with a spool gun is faster.

The Weldpro Omni210 and ARCCAPTAIN MIG200 are the best options if you want MIG capability for aluminum. Every other welder on my list is pure TIG focus. For more options, see our best TIG welders for aluminum and best MIG welders for beginners guides.

Frequently Asked Questions

Final Verdict: Which Aluminum TIG Welder Should You Buy?

After three months of testing on actual aluminum fabrication projects, the PRIMEWELD TIG225X stands as the best TIG welder for aluminum in 2026 for most buyers. The CK17 torch, 200Hz pulse, and reliable AC performance deliver Miller-quality results at half the price. For beginners, the AHP AlphaTIG 203Xi removes the typical learning curve frustrations. For tight budgets, the LOTOS TIG200ACDC proves you can start welding aluminum without spending a fortune.

If you want professional-grade reliability and brand support, the Lincoln Square Wave 205 justifies its premium price for daily-use welders. For multi-process flexibility, the Weldpro 200A and Weldpro Omni210 offer the best combination of MIG and TIG capability in one machine.

Whichever aluminum TIG welder you choose, invest in quality consumables: 2% lanthanated tungsten, pure argon shielding gas, and ER4043 or ER5356 filler rod. Your welder is only as good as the materials you feed it.
