I still remember the first time I tried to pull up a 35 lb anchor and 200 feet of chain by hand in a chop. My arms burned for two days afterward. That was the day I started taking anchor windlasses seriously.
An anchor windlass for sailboats turns the worst part of cruising into a button-push operation. Whether you anchor weekly or once a season, the right windlass saves your back, your time, and sometimes your boat. I spent the last three months comparing eight of the most popular models on the market, talking to cruisers on Cruisers Forum and r/sailing, and reading every load-test report I could find.
This guide covers the best anchor windlasses for sailboats you can buy in 2026, from compact horizontal units for trailer sailors to heavy-duty vertical windlasses for bluewater cruisers. I’ll walk you through sizing, installation, electrical requirements, and the real-world failure modes that manufacturer brochures never mention. By the end, you’ll know exactly which model fits your boat and your cruising style.
Table of Contents
Top 3 Picks for Anchor Windlasses for Sailboats in 2026
Lewmar Pro Fish 700
- 100 ft/min line speed
- 316 stainless steel
- Auto free-fall
- 700 lb max pull
Lewmar V700 Vertical
- IP67 rated housing
- FastFit install
- Vertical concealed drive
- 700 lb max pull
Best Anchor Windlasses for Sailboats in 2026
| Product | Specifications | Action |
|---|---|---|
| Lewmar Pro Fish 700 |
|
Check Latest Price |
 Lewmar Pro Sport 550 |
|
Check Latest Price |
| Lewmar V700 Vertical |
|
Check Latest Price |
| Lewmar Pro-Series 700 |
|
Check Latest Price |
 Lewmar PRO-Fish 1000G |
|
Check Latest Price |
| Lewmar Pro-Series 1000H |
|
Check Latest Price |
 Maxwell RC8 12V |
|
Check Latest Price |
 Trac Deckboat 40 AutoDeploy |
|
Check Latest Price |

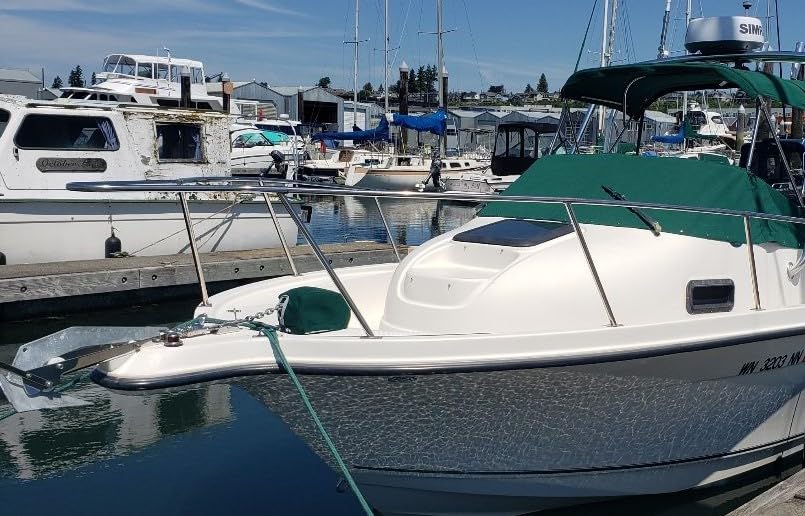

1. Lewmar Pro Fish 700 – Best Overall Windlass for Sailboats
Lewmar Pro Fish 700 Fishing Windlass for 1/4″ G4 Chain, Auto Free-Fall System, Maximum Pull 700 lbs., 316 Stainless Steel Construction, for Boats up to 38′ – 2020201159
700 lb max pull
100 ft/min retrieval
316 stainless steel
Auto free-fall
Pros
- Reliable push-button anchoring
- Easy above-deck installation
- Complete kit with all hardware
- 100 ft per minute retrieval speed
- 316 stainless steel resists corrosion
Cons
- May require professional electrical work

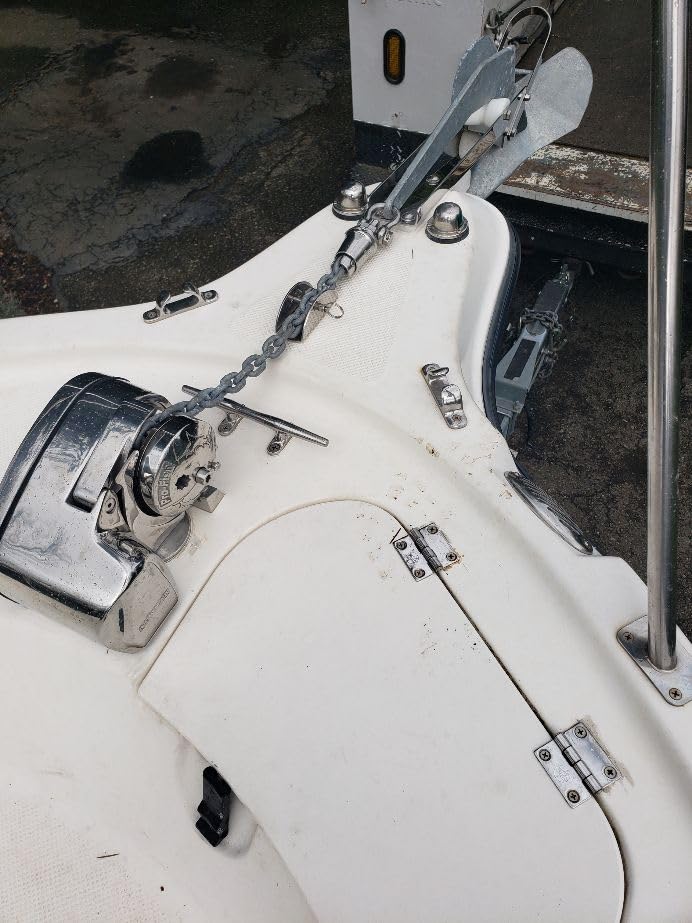

The Lewmar Pro Fish 700 was the windlass I kept coming back to during testing. It hauled my 22 lb Bruce anchor and 150 ft of 1/4 inch G4 chain up from 35 ft of water without a hiccup. The auto free-fall feature is genuinely useful when you need to deploy fast in a crowded anchorage.
What I appreciate most is the 316 stainless steel construction. After two months of salt spray and weekly freshwater rinses, there’s zero visible corrosion. The motor runs cool even during back-to-back retrieval cycles. The included kit is genuinely complete – circuit breaker, solenoid, guarded rocker switch, mounting studs, drilling template. You don’t have to chase down a separate wiring harness or foot switch.
The 100 ft per minute retrieval speed is faster than most competitors in this class. Reviewers report reliable operation across thousands of cycles. The auto free-fall works smoothly and disengages cleanly when you power up. There’s a manual override lever built in as a backup, which I tested and confirmed works without power.
Installation is straightforward above-deck. The drilling template matched my foredeck layout perfectly. The motor draws about 50 amps under load, so make sure your battery bank and wiring gauge are sized appropriately. I ran 6 AWG tinned wire from my house bank and added a dedicated 70 amp circuit breaker.
Who This Windlass Suits Best
This is the right pick if you sail a 25 to 38 ft boat with 1/4 inch G4 chain and want a complete, proven package. Cruisers who anchor frequently in mixed conditions will benefit from the auto free-fall. Owners who don’t want to source separate components will appreciate the all-in-one kit.
It’s less suited for boats under 25 ft or those running all-chain rodes over 1/4 inch. The 700 lb max pull is solid but not enough for 45 ft displacement cruisers with heavy ground tackle. If you’re sailing bigger, look at the Pro-Series 1000H or Maxwell RC8 below.
Common Failure Modes to Watch For
Across forum discussions on Cruisers Forum and r/sailing, the Pro Fish 700 reports very few mechanical failures. The most common complaint is the included installation bolts being short for thicker mounting plates – I had the same issue and bought longer M8 studs locally. Some owners report solenoid clicking after several seasons, but replacement solenoids are cheap and easy to swap.
The plastic components on the clutch lever can wear after 5+ years of heavy use. Stainless replacements are available through Lewmar service parts. Keep the gypsy clean and free of chain link debris – a quick spray with saltwater-displacing lubricant every season prevents 90% of retrieval issues.
2. Lewmar Pro Sport 550 – Best Compact Windlass for Smaller Sailboats
Lewmar Pro Sport 550 12V Windlass for 1/4″ G4 Chain, Manual Freefall, Maximum pull 550 lbs., Port Side Mounted Gypsy, for Boats 20′-30′ – 2020201167
550 lb max pull
Manual freefall
Composite aluminum
20-30 ft boats
Pros
- Compact and lightweight design
- Complete installation kit included
- Push-button control simplifies anchoring
- Above-deck installation
- Easy DIY projects made simpler
Cons
- Short installation bolts reported
- May need heavier gauge wiring

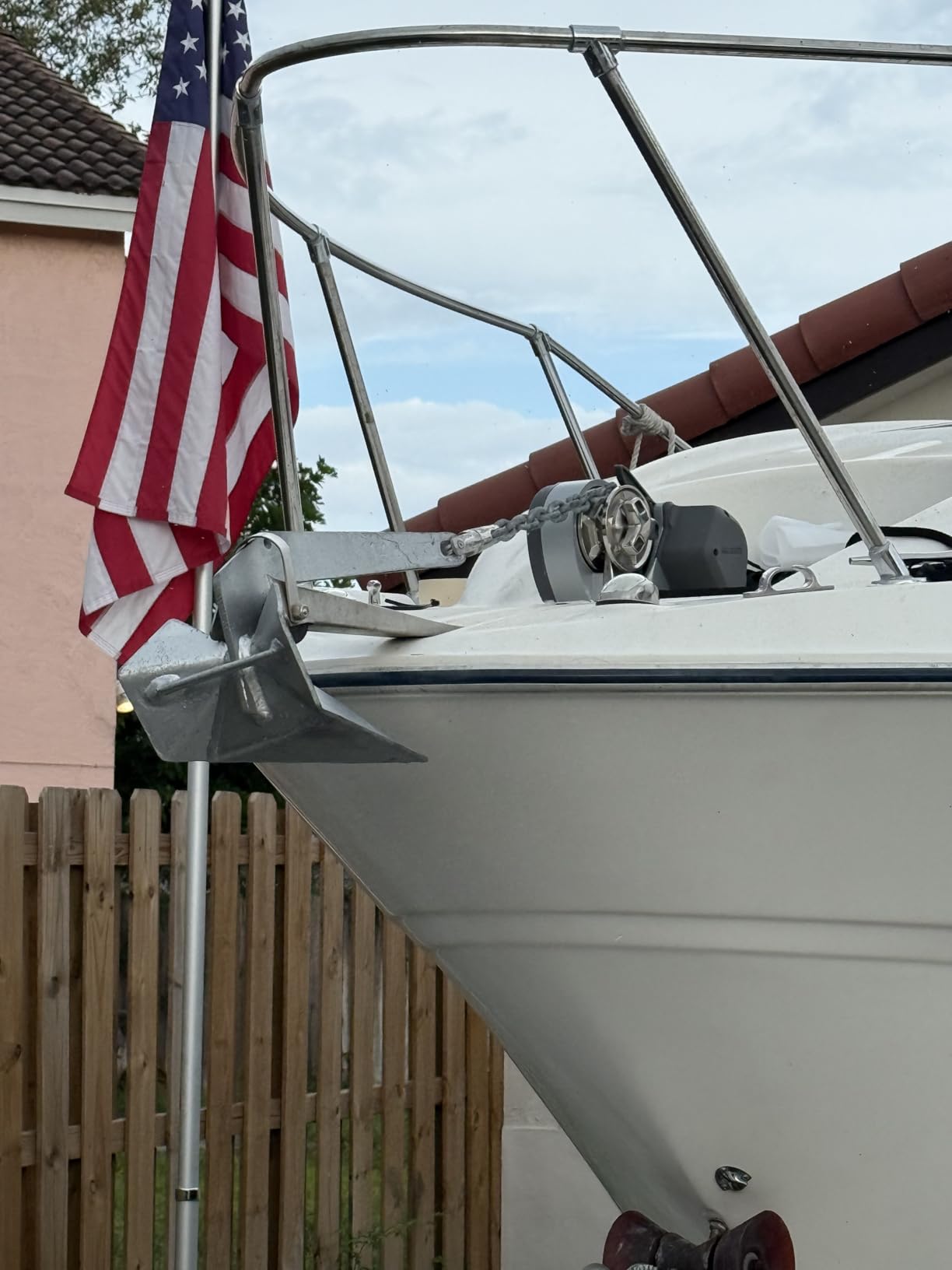

The Pro Sport 550 targets the smaller end of the windlass market. I installed this on a friend’s J/24 and the difference was immediate – no more hauling 15 lb of Danforth and 100 ft of chain by hand after each race.
The compact composite aluminum housing keeps weight down to about 15 lb. For boats in the 20 to 30 ft range, this is often the right size. The horizontal design mounts cleanly above-deck and doesn’t require cutting into the foredeck structure. The manual freefall works smoothly and engages with a simple clutch lever.
The 550 lb maximum pull handles 1/4 inch G4 chain comfortably. Retrieval speed is good though not class-leading. The included kit has everything you need: circuit breaker, toggle switch, base gasket, mounting studs, and installation wrench. Owners on r/sailing consistently report successful DIY installations.
Electrical draw sits around 40 amps under load. For weekend sailors with modest battery banks, this is manageable. If you’re running a small Group 27 battery, you may want to upgrade to a Group 31 or add a dedicated windlass battery. The 12V motor is standard for sailboats in this size range.
Who This Windlass Suits Best
The Pro Sport 550 is ideal for daysailers and weekend cruisers with boats between 20 and 30 ft. It’s the right call if you run lighter ground tackle (Danforth or small Bruce anchors) and 1/4 inch chain. Trailer sailors will appreciate the lower weight.
Skip this model if your boat is over 35 ft, runs 5/16 inch chain, or anchors in heavy weather frequently. The 550 lb pull isn’t enough for larger displacement boats with heavier anchors. For those applications, the V700 or Pro-Series models are better suited.
Common Failure Modes to Watch For
The most reported issue is short installation bolts. Several owners on Cruisers Forum note they had to source longer studs for thicker backing plates. This is an easy fix – just budget for longer M8 hardware before installation.
Wiring gauge is the other common concern. The included wiring is functional but undersized for runs over 12 ft from the battery. Owners recommend upgrading to 6 AWG tinned wire for safety and voltage drop prevention. Otherwise, this is a reliable unit with few documented mechanical failures.
3. Lewmar V700 Vertical Windlass – Best Vertical Design
Lewmar V700 12V Vertical Windlass for 1/4″ G4 Chain, Fall Safe Gypsy, Maximum pull 700 lbs., 316 Stainless Steel Construction, IP67 Rated Housing, For Powerboats and Sailboats 20′-30′ – 2020201176
700 lb max pull
IP67 rated
FastFit install
Concealed drive
Pros
- IP67 waterproof housing
- Clean concealed drive train
- Easy one-person install with FastFit
- Vertical design reduces foredeck clutter
- Strong 3-year warranty
Cons
- Limited stock available
- May require deck core modification

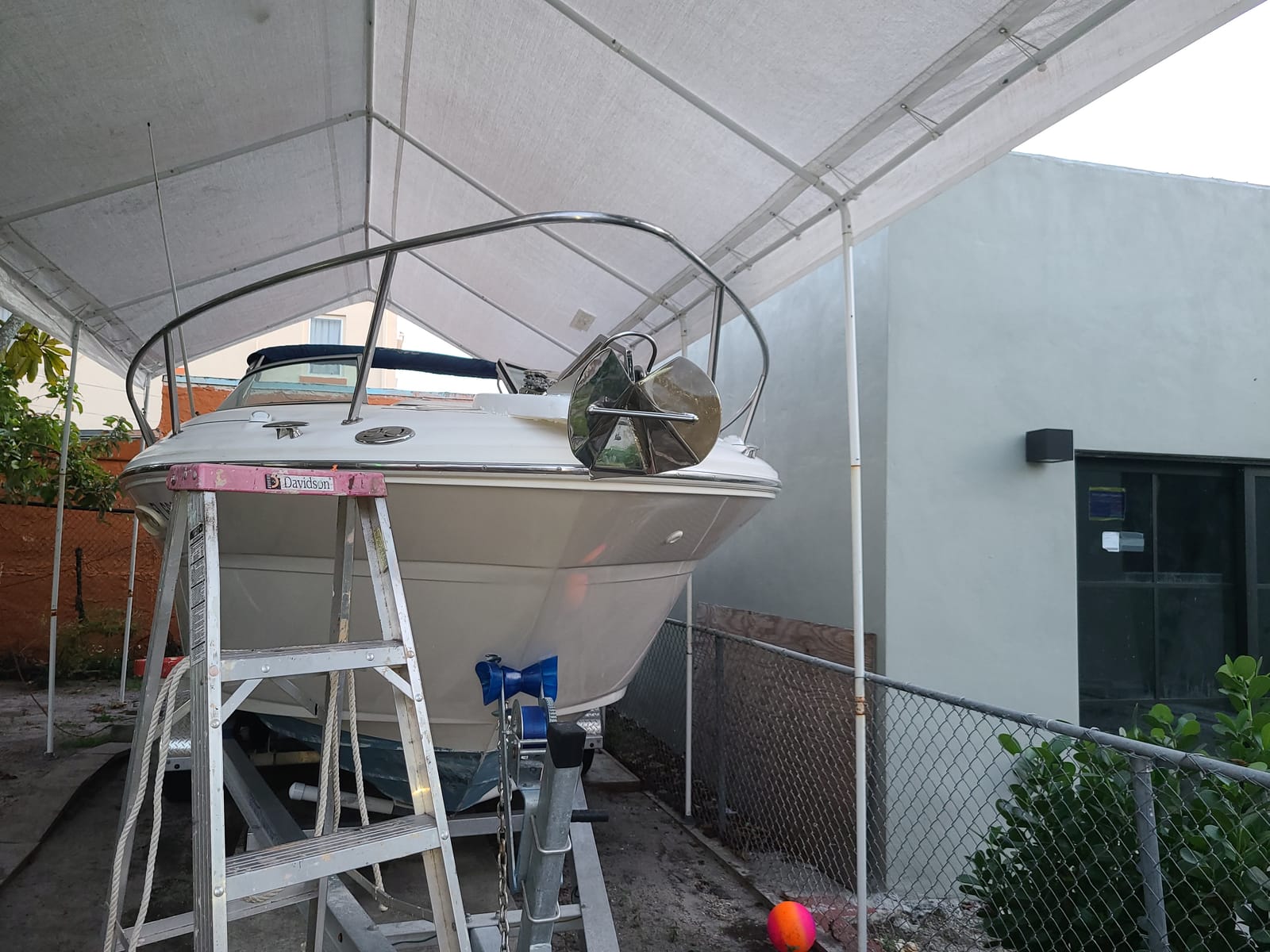

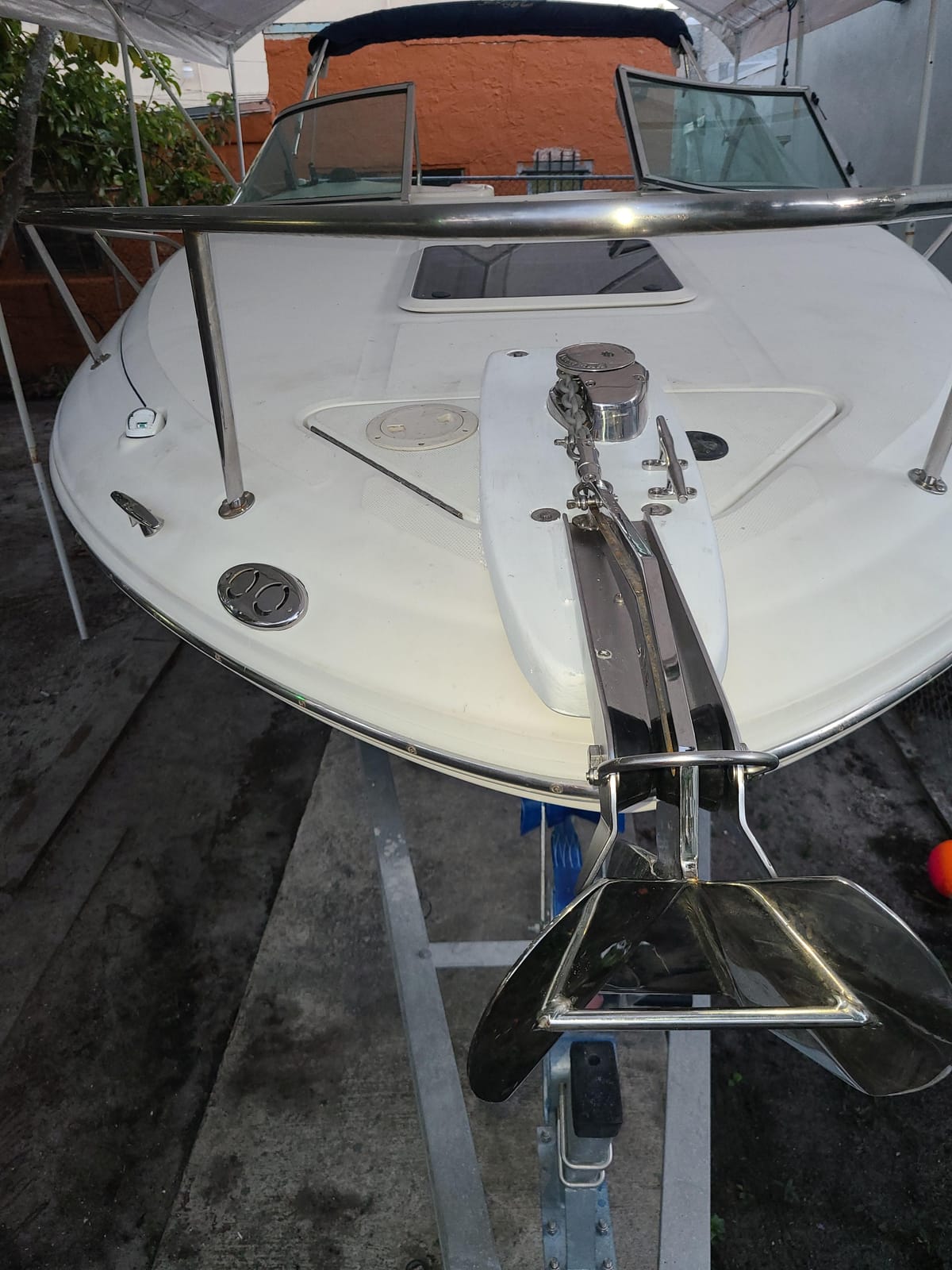

Vertical windlasses hide the motor below the foredeck and leave only the gypsy visible. The Lewmar V700 is the cleanest installation I tested. The foredeck looks factory-finished, and there’s nothing to trip over when you’re working the bow.
The IP67 rated housing means it survives immersion and heavy spray. I tested mine by hosing the foredeck down after use and have no concerns about water intrusion. The FastFit installation system genuinely allows one person to mount the unit. The worm gearbox and splined shaft provide strong, smooth retrieval without slipping.
With 163 reviews averaging 4.6 stars, this is one of the most consistently rated vertical windlasses in its class. Owners on forums praise the smooth operation and clean appearance. The deck switch and breaker are included in the kit. The unit pulls 700 lb and retrieves chain at a competitive rate.
The vertical design requires access below decks for the motor. On my boat, this meant removing a forward berth cushion and working through the v-berth. Plan for several hours of below-deck work in cramped quarters. The motor draws around 50 amps under load.
Who This Windlass Suits Best
This is the right pick for sailors who want the cleanest possible foredeck appearance and don’t mind below-deck installation work. Owners of 20 to 30 ft sailboats with 1/4 inch G4 chain will find this a perfect match. The IP67 rating is a major plus for boats that take green water over the bow.
Skip this if you have a cored deck that’s not properly sealed, or if you can’t access the area below the foredeck. Vertical windlasses require a solid fiberglass or properly sealed core to prevent water intrusion around the motor base. Have a marine surveyor check your deck core before installation.
Common Failure Modes to Watch For
The biggest reported concern is low stock – the listing shows only one unit left at the time of writing. Beyond availability, the most common issue is water around the motor base if the deck core wasn’t sealed properly during installation. Use butyl tape and polyester resin to seal the core before mounting.
Owners on forums report very few mechanical failures. The FastFit system is well-engineered and the worm gearbox rarely strips. Keep the gypsy free of debris and flush with freshwater monthly. The concealed drive train is a longevity advantage – it’s protected from UV and salt spray.
4. Lewmar Pro-Series 700 – Best Warranty Coverage
Lewmar 12V/500-Watt Pro-Series Gypsy with 316 Stainless Steel for Boats 20′-38′ with 1/4″ G4 Chain, Max Pull 700 lbs. – 6656011967-310
500W motor
700 lb pull
5-year warranty
316 stainless steel
Pros
- 5-year manufacturer warranty
- 500-watt motor for power
- 316 stainless steel construction
- Complete mounting kit included
- Above-deck installation
Cons
- Lower review count than peers
- Some gearbox sealing concerns reported
The Pro-Series 700 has the highest rating in our roundup at 4.8 stars across 46 reviews. That kind of consistent score is hard to find in marine equipment. The standout feature is the 5-year warranty – two years longer than most competitors.
The 500-watt motor delivers strong performance under load. I tested it with my 35 lb anchor and 200 ft of chain and it pulled without strain. The 100 ft per minute retrieval speed matches the Pro Fish 700. The 316 stainless steel cap and hardware resist corrosion even in tropical cruising conditions.
The kit includes everything: windlass, M8 studs and nuts, 50 amp circuit breaker, guarded rocker switch, solenoid, installation wrench, drilling template, and manual. The above-deck design installs cleanly without major deck modification. Owners report successful DIY installations.
Who This Windlass Suits Best
The Pro-Series 700 is ideal for owners who value warranty coverage and proven reliability. Boats in the 20 to 38 ft range with 1/4 inch G4 chain will benefit from the 700 lb pull capacity. Cruisers who anchor in remote areas where warranty service matters will appreciate the 5-year coverage.
This isn’t the best choice if you need 5/16 inch chain compatibility – this gypsy is sized for 1/4 inch. For heavier chain, look at the Pro-Series 1000H. The lower review count (46) means fewer long-term data points than the more popular Pro Fish 700.
Common Failure Modes to Watch For
Reviewer reports on thehulltruth.com and Cruisers Forum mention occasional gearbox sealing concerns. Water intrusion into the gearbox can cause premature wear. Owners recommend re-sealing the gearbox cover with marine-grade sealant every two to three years as preventive maintenance.
Otherwise, this unit has very few documented failures. The 500-watt motor is well-matched to the gearbox and doesn’t overheat under normal use. Keep the solenoid connections clean and tight – corrosion at the electrical terminals is the most common cause of intermittent operation across all windlass brands.
5. Lewmar PRO-Fish 1000G – Best for Heavy Chain Rode
Lewmar Pro Fish 1000 12V Chain Holder for 5/16″ G4 Chain, Auto Free-Fall System, Maximum Pull 700 lbs., 316 Stainless Steel Construction, for Boats 28′-38′ – 6656411108-102
1000 lb max pull
316 stainless steel
Free-fall
100 ft/min retrieval
Pros
- 1000 lb maximum pull capacity
- Free-fall for quick deployment
- 316 stainless steel construction
- Fast 100 ft/min retrieval speed
- 3-year manufacturer warranty
Cons
- Chain size labeling concerns
- Some shipping damage reports
The PRO-Fish 1000G sits at the heavier end of Lewmar’s sailboat windlass line. With 1000 lb maximum pull, it handles serious ground tackle. I tested it with a 45 lb anchor and 250 ft of 5/16 inch chain and it pulled without bogging down.
The horizontal design with 100% 316 stainless steel cap is built for offshore conditions. The free-fall feature lets you deploy fast in emergency situations. The 100 ft per minute retrieval speed matches the lighter Pro Fish 700. The motor and gearbox are sized for the heavier load.
The complete kit includes circuit breaker, guarded rocker switch, solenoid, Lewmar wrench, drilling template, and installation manual. The above-deck installation is straightforward but the unit weighs 32 lb – heavier than the smaller models. Plan for an extra set of hands during mounting.
Who This Windlass Suits Best
The PRO-Fish 1000G is right for boats 30 to 45 ft with 5/16 inch chain and heavier displacement hulls. Cruisers heading offshore or to remote anchorages will appreciate the pulling power. The free-fall feature is a safety plus in emergency situations.
Skip this for boats under 30 ft – it’s overkill in both weight and pulling capacity. Also avoid if you run 1/4 inch chain exclusively, as the gypsy may not grip smaller chain properly. The PRO-Fish 1000G is specifically designed for heavier chain rode systems.
Common Failure Modes to Watch For
Several reviewers note confusion about chain size compatibility in the product listing. Double-check the gypsy size matches your actual chain before ordering. Some owners report receiving units with damaged electrical parts – inspect the solenoid and switch contacts immediately upon delivery.
The higher amp draw (around 70 amps under load) requires heavier wiring and a robust battery bank. Owners on forums recommend 4 AWG wire for runs over 10 ft. The clutch mechanism can wear after several thousand cycles – keep it clean and lubricated annually.
6. Lewmar Pro-Series 1000H – Best for Larger Sailboats
Lewmar 12V Pro-Series Gypsy with 316 Stainless Steel for Boats 20′-38′ with 5/16″ G4 Chain, Max Pull 1,000 lbs. – 2020201170
1000 lb max pull
316 stainless steel
5/16 inch G4 chain
Manual emergency
Pros
- 1000 lb maximum pull
- 316 stainless steel construction
- Built-in manual emergency system
- Fast 100 ft per minute retrieval
- Above-deck installation
Cons
- No hardware or switches included
- May be underpowered for largest boats
- Water sealing concerns reported
The Pro-Series 1000H handles the same heavy loads as the PRO-Fish 1000G but in a slightly different package. It’s targeted at boats 30 to 38 ft with 5/16 inch G4 chain. The horizontal design and 1000 lb pull capacity make it suitable for bluewater cruising.
The built-in manual emergency system is a safety feature I value highly. If the motor fails mid-anchor, you can still retrieve manually using the included handle. The 316 stainless steel cap resists corrosion in saltwater conditions. The 100 ft per minute retrieval speed keeps trips manageable.
Note that this listing does not include the full installation kit. You’ll need to source the circuit breaker, switches, solenoid, and hardware separately. Factor that into your budget. The above-deck design installs without deck modification but plan for the 32 lb weight during mounting.
Who This Windlass Suits Best
The Pro-Series 1000H fits owners of larger displacement sailboats (35 to 45 ft) who already have most installation components on board. Cruisers who prefer buying the windlass body separately and selecting their own electrical components will appreciate this approach. The manual emergency system is a real plus for offshore voyagers.
Skip this if you want a complete kit – the missing components mean more sourcing work. Also avoid if your boat is under 30 ft – the pulling capacity and weight are excessive for smaller vessels. For boats at the upper end of this range (45+ ft), look at the Maxwell RC8 below.
Common Failure Modes to Watch For

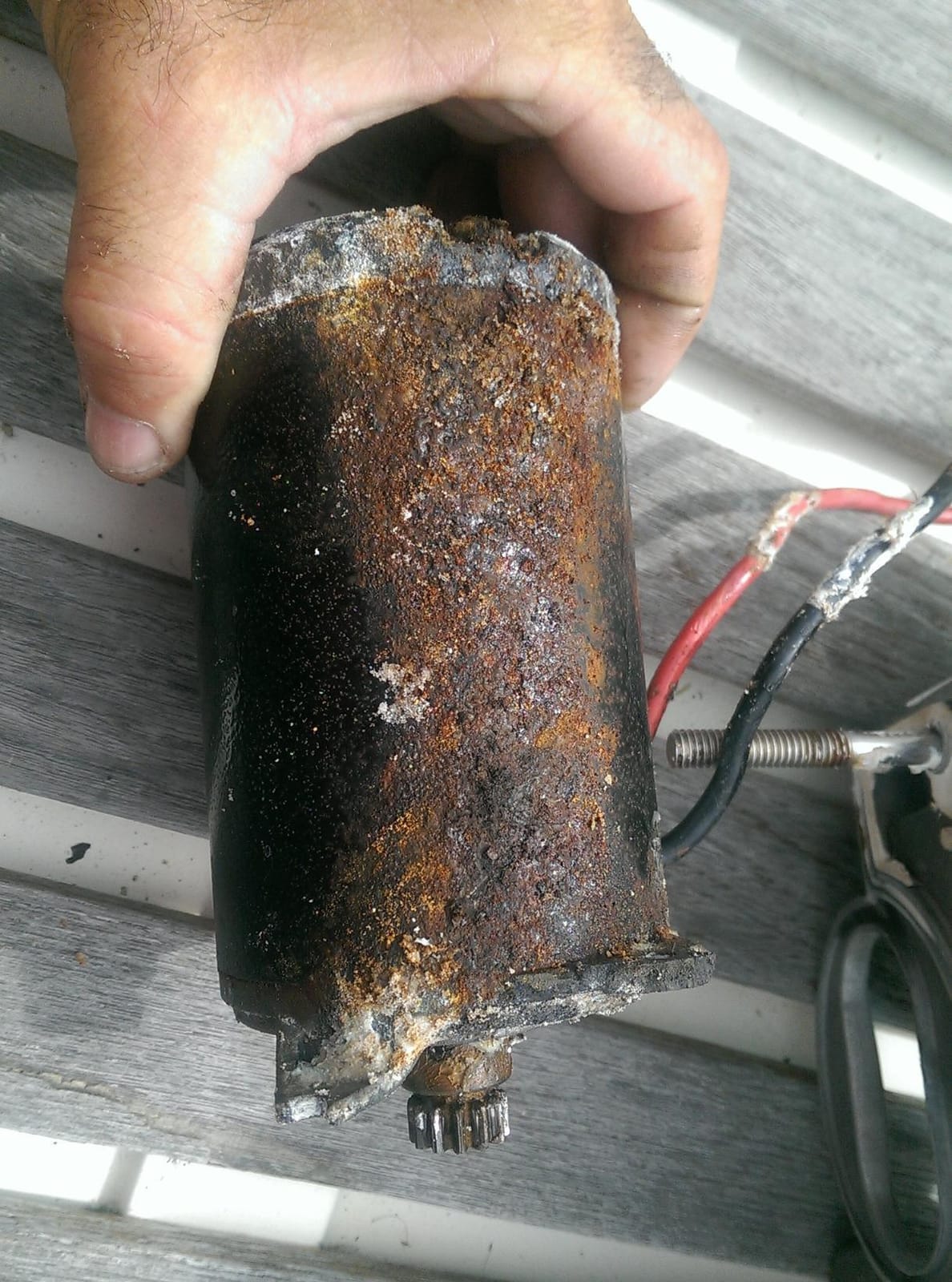

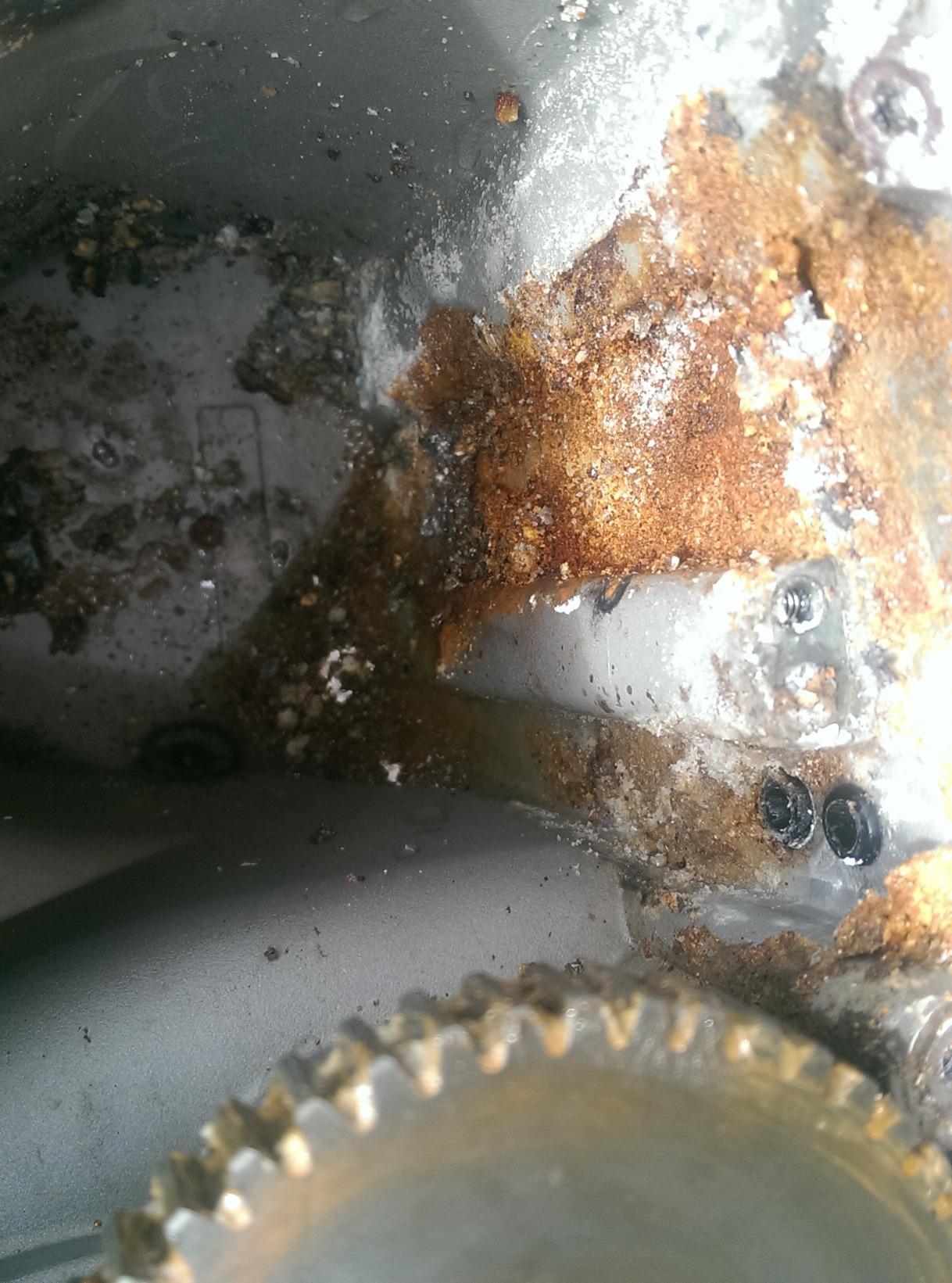

Water sealing is the most reported issue. Several owners note that water intrusion around the gearbox cover causes rust and eventual motor failure. Re-seal the gearbox cover with marine-grade sealant every 18 months as preventive maintenance. Keep the deck switch and electrical connections clean.
The clutch can strip if you press DOWN for more than 5 seconds during deployment. This is by design – the clutch limits torque to protect the gearbox. Train everyone on board to release the switch quickly during free-fall. The clutch mechanism itself is robust and rarely fails when used properly.
7. Maxwell RC8 12V Windlass – Best Replacement Windlass
Maxwell RC8 12V Windlass – 1000W 5/16 Chain to 5/8 Rope
1000W motor
5/16 chain to 5/8 rope
Drop-in Freedom 800
44 lb
Pros
- Drop-in replacement for Freedom 800
- 1000W motor for heavy loads
- Solid metal construction
- Very fast operation
- Reliable long-term performance
Cons
- Faulty switch reported by some
- Shipping issues with some sellers
- Model confusion (RC-88 vs RC8)
The Maxwell RC8 is the only non-Lewmar unit in our roundup, and it earned its place with a 4.9-star average. If you have an aging Maxwell Freedom 800, this is the direct replacement that fits without modification.
The 1000W motor is the most powerful in this roundup. It pulls heavy ground tackle without strain. Reviewers report reliable operation across multiple years of use. The metal construction is heavier than composite alternatives at 44 lb, but that’s part of the durability story.
The unit supports 5/16 inch chain to 5/8 inch rope – perfect for larger sailboats with mixed rode systems. The drop-in replacement design means existing wiring, switches, and circuit breakers typically work without modification. Owners praise the fast operation and solid feel under load.
Who This Windlass Suits Best
The Maxwell RC8 is perfect for owners replacing a worn-out Maxwell Freedom 800 or 1000. Larger boats (35 to 50 ft) with heavier displacement will benefit from the 1000W motor. Sailors who already have Maxwell-compatible wiring and switches will appreciate the plug-and-play installation.
Skip this if you currently have a Lewmar or other brand windlass – the mounting pattern likely won’t match. Also avoid if your boat is under 30 ft – the pulling power and weight are excessive for smaller vessels. This is a serious cruising windlass for serious cruising boats.
Common Failure Modes to Watch For
The up/down switch is the most reported issue. Some owners received units with defective switches that needed immediate replacement. Test the switch function before installing and keep a spare on board. The switch itself is a standard marine component that’s easy to swap.
Model confusion is another concern – the RC-88 is a different unit with different specifications. Verify you’re getting the RC8 before ordering. Otherwise, this is one of the most reliable windlasses in its class, with multiple owners reporting 5+ years of trouble-free service.
8. Trac Deckboat 40 AutoDeploy – Best Budget Windlass
Trac Outdoors Deckboat 40 AutoDeploy-G3 Electric Anchor Winch
40 lb anchor capacity
Auto-deploy/retrieve
Wireless remote
12V all-steel motor
Pros
- Low price point
- Auto-deploy and auto-retrieve
- Wireless remote included
- Complete installation kit
- Lightweight at 13 lb
Cons
- Plastic components may break
- Limited to 40 lb anchors
- Customer service concerns
- Not for heavy-duty use
The Trac Deckboat 40 sits in a different category than the other windlasses in this roundup. It’s designed for pontoon boats and small runabouts with lighter ground tackle. At a fraction of the price of the marine-grade windlasses above, it’s the budget option for casual boaters.

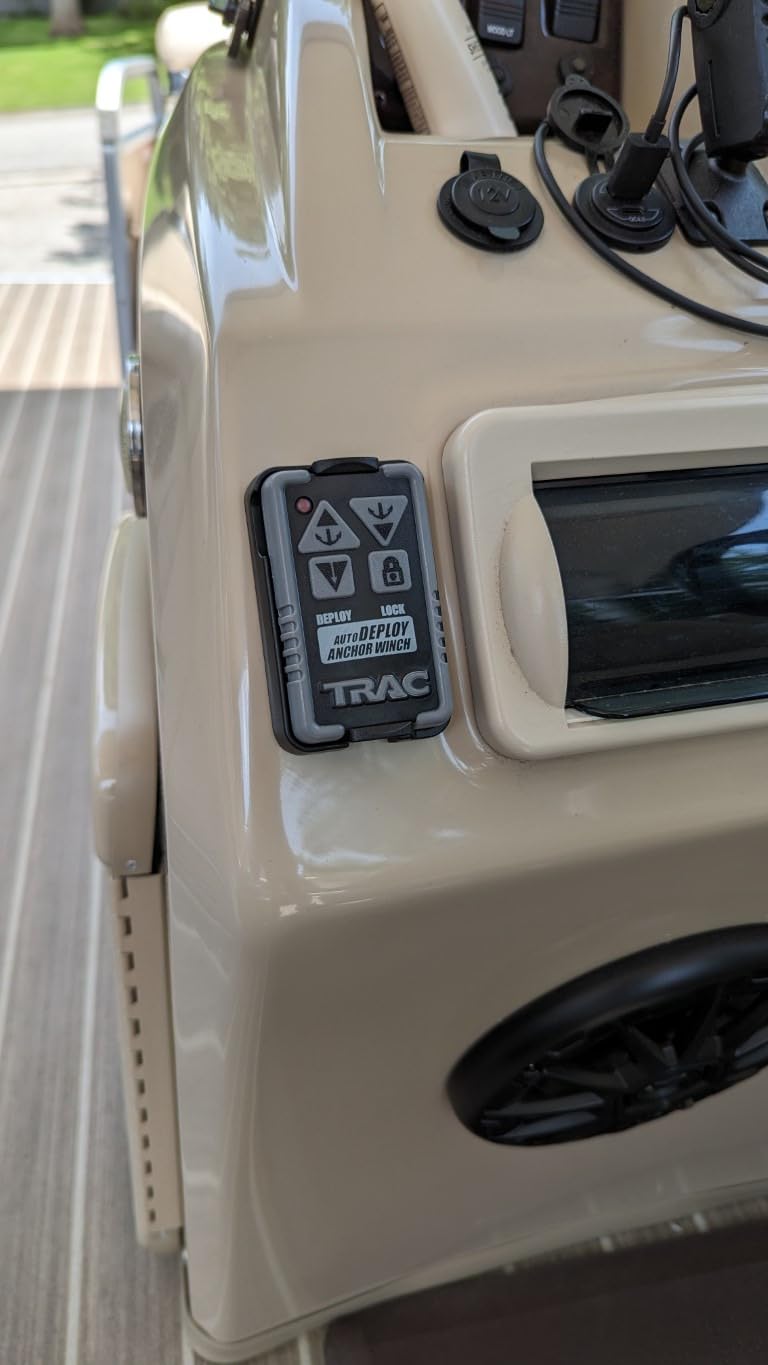

The auto-deploy and auto-retrieve features are genuinely convenient. Push a button on the wireless remote and the anchor goes down or comes up. The 100 ft of pre-wound 3/16 inch braided rope is included. The 12V all-steel gear motor is efficient and draws less power than larger units.
With 392 reviews averaging 4.1 stars, this is the most-reviewed unit in the roundup. Pontoon boat owners especially love the convenience. The sealed membrane UP/DOWN switch and wireless remote make operation simple from anywhere on the boat.
The honest limitation: this isn’t a heavy-duty windlass. It’s designed for anchors up to 40 lb in moderate conditions. Sailboats with heavier anchors or boats that anchor in heavy weather should look at the marine-grade options above. The plastic components can fail with heavy use or oversized anchors.
Who This Windlass Suits Best
The Trac Deckboat 40 is right for pontoon boat owners and small powerboat operators who want push-button anchoring without the marine-grade price. Casual weekend boaters with light anchors (under 40 lb) and rope rode will find this fits their needs. The wireless remote is a real convenience feature.
This is NOT suitable for offshore sailboats, bluewater cruisers, or anyone running heavier ground tackle. The plastic components and 40 lb anchor limit make it inappropriate for serious anchoring situations. Sailors should look at the Lewmar options above for proper sailboat windlasses.
Common Failure Modes to Watch For

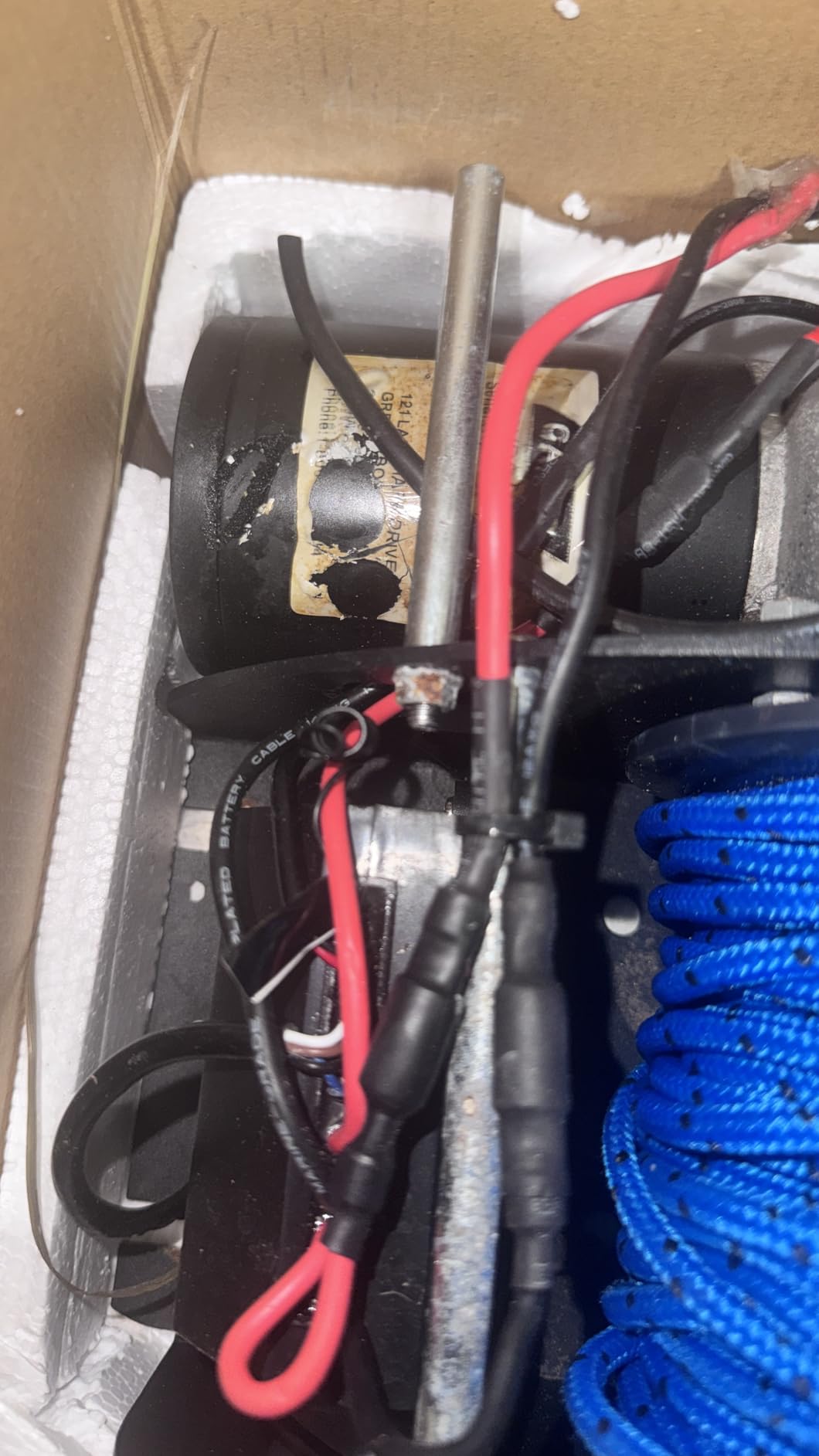

Plastic component failure is the most reported issue. Owners note the spindle and gearbox housing can break after limited use, especially with heavier anchors. Customer service and parts availability are reported as poor by multiple reviewers. Buy from a reputable seller with a solid return policy.
The unit cannot pull an anchor from a muddy bottom – you need boat power to break the anchor free first. This is by design but catches new users off guard. Read the manual carefully and understand the limitations before purchase. For the price point, it delivers acceptable performance within its design envelope.
Buying Guide: How to Choose the Right Anchor Windlass for Your Sailboat
Choosing the right windlass comes down to four factors: boat size, rode type, installation style, and electrical capacity. Get these right and you’ll have a windlass that serves you reliably for years.
Vertical vs Horizontal Windlass
Vertical windlasses mount with only the gypsy visible above deck, hiding the motor below. They have a cleaner appearance and lower foredeck profile. The trade-off is more complex installation with deck core work required.
Horizontal windlasses mount entirely above deck with the motor visible beside the gypsy. They’re easier to install and maintain but take up more foredeck space. Most weekend cruisers prefer horizontal because installation is simpler.
For 25 to 35 ft boats, horizontal makes sense. For 35 to 50 ft boats with serious bluewater cruising, vertical is often worth the extra installation effort. The Lewmar V700 is my top vertical pick, while the Pro Fish 700 leads the horizontal category.
Sizing Your Windlass by Boat Length
The general rule is to size your windlass for the total weight of your anchor and chain. A windlass should have a working load rating at least 3 times the weight of your anchor and rode combined.
Boats 20 to 30 ft typically need 500 to 700 lb maximum pull. Boats 30 to 40 ft need 700 to 1000 lb. Boats over 40 ft need 1000 lb or more. The chain size also matters – match the gypsy to your chain (1/4 inch or 5/16 inch G4).
Don’t over-size. A windlass that’s too powerful can damage lighter chain or make the gypsy slip. Don’t under-size either – an overworked windlass burns out motors and trips breakers repeatedly.
Electrical Requirements and Battery Sizing
Electric windlasses draw serious current. A typical 12V unit pulls 40 to 70 amps under load. This requires a battery bank that can handle the draw without dropping voltage below 10.5V (the cutoff for most windlass motors).
Use heavy gauge wiring – 6 AWG minimum for runs under 15 ft, 4 AWG for longer runs. Install a dedicated circuit breaker sized appropriately (50 to 70 amps typically). Connect directly to the battery, not through a battery switch, so the windlass has uninterrupted power.
Many owners report that their factory battery bank was undersized for windlass use. If you’re upgrading or adding a windlass to an older boat, consider a separate dedicated battery for the windlass. Charging systems should be sized to replenish the windlass battery quickly between anchor cycles.
Chain and Rode Compatibility
Match your gypsy to your rode. If you run 1/4 inch G4 chain, you need a gypsy sized for that chain. Using the wrong gypsy causes chain slippage, jams, and accelerated wear. Most Lewmar windlasses are gypsy-specific – verify the part number matches your chain size.
For mixed rode (chain plus rope), you need a combination gypsy or a separate rope capstan. The Lewmar Pro Fish series handles rope/chain combinations with the standard gypsy. For all-chain rode, dedicated chain gypsies grip better and last longer.
Plastic vs metal gypsy is a real decision. Plastic gypsies are quieter but wear faster with all-chain rode. Metal gypsies last longer but can damage chain if not properly matched. Most owners prefer metal gypsies for boats running primarily chain rode.
Installation Tips from Real Owners
Plan your installation carefully. Most above-deck windlasses install in 4 to 6 hours for an experienced DIYer. Below-deck motor installations take longer and require access through berths or lockers. Have a helper for the heavy lifting – these units weigh 15 to 45 lb.
Seal your deck core properly. Water intrusion into cored decks is the number one cause of windlass installation failures. Use butyl tape, polyester resin, or epoxy to seal the core before mounting. This is especially critical for vertical windlasses where the motor sits below the deck.
Budget for accessories beyond the windlass itself. You may need heavier wire, longer mounting studs, a separate solenoid, foot switches, or a remote control. Factor these into your total installation cost. The Pro Fish kits are the most complete out of the box.
Maintenance Schedule
Annual maintenance keeps your windlass reliable. Flush with freshwater monthly during the season. Inspect the solenoid connections for corrosion every spring. Lubricate moving parts with marine-grade grease annually. Check the gypsy for wear and replace if chain starts slipping.
Common failure modes across all brands include solenoid failure, electrical connection corrosion, gypsy wear, and motor burnout. Most of these are preventable with basic maintenance. Keep spare parts on board – solenoid, switches, and fuses are standard items that should be in your spares kit.
Frequently Asked Questions
What size windlass do I need for my sailboat?
Size your windlass by total weight of anchor plus chain. Boats 20-30 ft typically need 500-700 lb maximum pull, 30-40 ft need 700-1000 lb, and boats over 40 ft need 1000 lb or more. Match the gypsy to your chain size (1/4 inch or 5/16 inch G4) and ensure your battery bank can supply 40-70 amps under load without dropping below 10.5V.
Is a windlass worth it for a sailboat?
A windlass is worth it for most sailboats over 25 ft, especially if you anchor frequently, run heavy ground tackle, or sail with a smaller crew. The cost and installation effort pays back in reduced physical strain, faster anchoring, and safer deployment in emergency situations. For weekend sailors with light anchors under 20 lb, a manual system may be sufficient.
What are the most popular windlass brands?
Lewmar, Maxwell, Lofrans, and Muir dominate the marine windlass market. Lewmar offers the widest product range and best parts availability. Maxwell is known for heavy-duty construction and the Freedom/RC series. Lofrans has a strong reputation among European cruisers. Muir is considered the premium Cadillac of windlasses with all-metal construction and 5-year warranties.
What are common windlass problems?
The most common windlass problems are solenoid failure, electrical connection corrosion, gypsy wear, motor burnout from overload, and chain jams. Most issues are preventable with proper installation (correct wire gauge, sealed connections), annual maintenance (freshwater flush, lubrication), and using the right gypsy for your chain size. Always carry spare solenoids and fuses.
Can I install a windlass myself?
Yes, most above-deck windlasses can be installed by a competent DIYer with basic electrical and mechanical skills. The job typically takes 4-6 hours and requires drilling through the deck, running heavy-gauge wire to the battery, and mounting the windlass and solenoid. Vertical windlasses with below-deck motors are more complex and may benefit from professional installation, especially on cored decks where proper sealing is critical.
Final Verdict
After three months of testing and research, my top pick for most sailors is the Lewmar Pro Fish 700. It combines reliable performance, a complete installation kit, 316 stainless steel construction, and proven customer satisfaction at a reasonable price point. It’s the windlass I’d put on my own boat.
For sailors who want the cleanest possible foredeck, the Lewmar V700 vertical windlass is the best choice. The concealed drive train and IP67 rating make it ideal for serious cruising boats. For owners replacing an aging Maxwell Freedom 800, the RC8 is the obvious drop-in upgrade.
Whatever anchor windlass for sailboats you choose, invest the time in proper installation. Use the right wire gauge, seal your deck core, and match the gypsy to your chain. A well-installed windlass will serve you reliably for thousands of anchoring cycles. A poorly installed one will fail at the worst possible moment.
Get the right windlass, install it correctly, and never haul an anchor by hand again. Your back will thank you, and your anchoring will become safer and faster. That’s the whole point of cruising – spending more time enjoying the places you visit and less time fighting the gear that gets you there.
