TIG puts a small, faint puddle in front of you and asks you to steer it with your hands. That is the whole job. Everything else about the process is secondary, which means the helmet decides how well you can work before you ever strike an arc.
The right lens for TIG is not the one with the highest shade number. It is the one that reaches a low enough shade to keep the puddle visible at the amperage you actually run, and that keeps sensing reliably when the arc is quiet. Get that pair of decisions right and the helmet choice is easy. Get either one wrong and you will spend your shift squinting at a black screen wondering why your welds look like filler rods melted end to end.
Over the last several months our team has been putting ten of the ten auto darkening welding helmets for TIG through the same routine: sheet metal coupons in mild steel and stainless, aluminum coupons, root passes on thin wall tube, and enough low-amp work at 5 to 12 amps to find out which sensors genuinely trigger on a DC arc. We logged switching behaviour, puddle visibility, light state comfort and how each headgear held up in overhead and inverted positions.
What separates a good TIG helmet from a bad one comes down to six things: the lowest shade the lens will reach, the light state you sight through between welds, the type of arc sensing, the optical class rating, the viewing area, and the fit of the headgear over long sessions. Those six specs drive every recommendation below, and they are also the specs you should check before you buy anything.
If you are still deciding on the machine side of the process, our guides to the best TIG welders for aluminum and the best TIG welders for aluminum welding cover the power sources that pair with these helmets.
Table of Contents
Top 3 Picks: Best Auto Darkening Welding Helmets for TIG (October 2026)
The single best auto darkening welding helmet for TIG in this group is the YESWELDER LYG-L600A, because it reaches a shade 3 light state and a shade 7 weld shade with 1/1/1/1 true color optics, and it has the deepest review base of any helmet in the group. The Lincoln Viking 3350 is the premium answer, with 4C optics in a 12.5 square inch lens and reliable low-amp behaviour. The YESWELDER LYG-M800H is the value pick, giving you the widest viewing area among the budget tier for the least outlay.
YESWELDER LYG-L600A True Color
- Shade 3 light state
- 7-13 weld shades
- 1/1/1/1 true color optics
- 2 sensors at 1/30000s
- Solar panel with CR2450 backup
Lincoln Viking 3350 4C Lens
- 4C optics at 1/1/1/1
- 12.5 square inch extra large lens
- X6 headgear weight distribution
- 5 year warranty
YESWELDER LYG-M800H Large View
- 3.93 by 3.66 inch true color view
- 4 sensors at 1/30000s
- DIN 3 light state with 5-9 and 9-13
- Cheater lens ready
The Best Auto Darkening Welding Helmets for TIG at a Glance
Lowest reachable shade matters more than maximum shade on TIG. The table below lists all ten helmets in the order we recommend them, with the light state or weld shade floor first because that is the number that decides whether a helmet suits your amperage.
| Product | Specifications | Action |
|---|---|---|
| YESWELDER LYG-L600A |
|
Check Latest Price |
 ARCCAPTAIN HSH-S800 |
|
Check Latest Price |
 TOOLIOM E600A-A Blue Eagle |
|
Check Latest Price |
 TRQWH KTS-JD03 |
|
Check Latest Price |
| YESWELDER LYG-M800H |
|
Check Latest Price |
 Hobart 770890 |
|
Check Latest Price |
 Miller Classic ClearLight |
|
Check Latest Price |
 Lincoln Electric K4983-1 |
|
Check Latest Price |

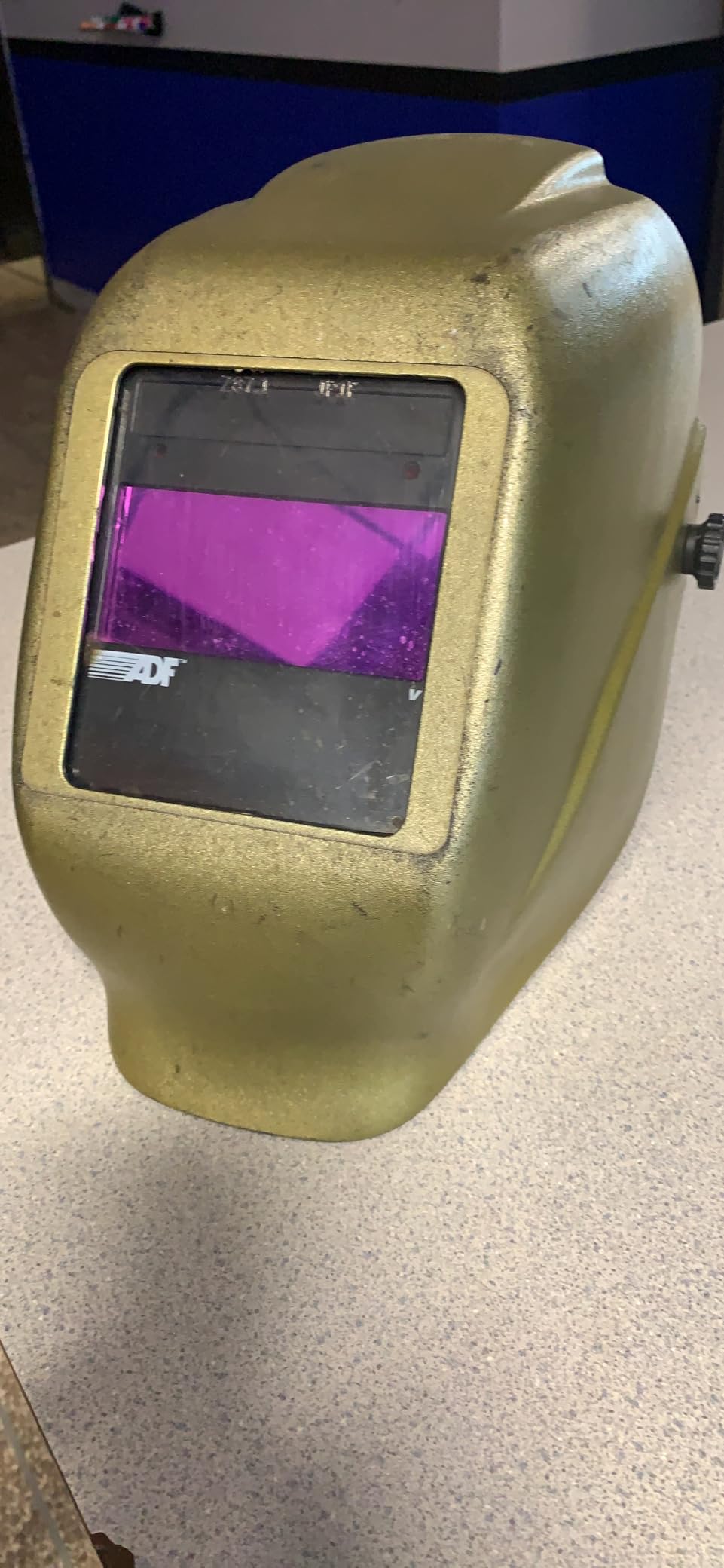

 Jackson Safety Insight |
|
Check Latest Price |
| Lincoln Viking 3350 |
|
Check Latest Price |
Two rows deserve a note before the reviews. The Jackson Insight and the Lincoln K4983-1 have shade floors of 9 and 7 respectively, which is workable for tube and structural work but restrictive for thin gauge. The YESWELDER LYG-L600A and the YESWELDER LYG-M800H are the two that combine a genuinely light light state with true color optics.
Helmet Reviews: How 10 Hoods Handle TIG Work
1. YESWELDER LYG-L600A True Color Helmet – Best Overall for TIG
YESWELDER Auto Darkening Welding Helmet 1/1/1/1 True Color, LYG-L600A
Shade 3/7-13
1/1/1/1 true color
2 sensors, 1/30000s
Solar plus CR2450
Pros
- Shade 3 light state keeps the joint sightable between welds
- 1/1/1/1 true color optics show a faint low-amp puddle clearly
- External shade knob switches between TIG
- MIG
- stick and grind
- Deepest review base in the group with steady reports on sensor behaviour
Cons
- Viewing area is compact compared with panoramic hoods
- Shell and headgear feel light duty for heavy shop abuse
- Cheater lens holder only accepts small magnifiers
This is the helmet we reach for when the job is thin material and low amperage. The lens offers a shade 3 light state and weld shades from 7 to 13, which means you can keep the hood down, line up your filler rod on the puddle toe, and still drop to a shade that a 10 amp DC arc will trigger reliably. That combination is rarer than it should be in this category.
Optically it is a 1/1/1/1 true color lens, meaning you see the joint in something close to natural colour across the viewing area. That matters more on TIG than on MIG because you are judging depth and edge position by colour change in the pool rather than by spatter and shape alone.
Sensitivity and delay sit on external knobs, and the response is rated at 1/30000 second from two arc sensors. Two sensors is fewer than the four-sensor designs on several rivals here, and on DC TIG that is a real consideration because a DC arc emits less detectable light than a MIG or AC arc.
On the two-sensor models here we run sensitivity a notch or two above the factory default before low-amp DC arcs trigger cleanly, and you should expect to do the same. If you spend most of your time at 3 amps or below on foil or on fine instrumentation work, move up to a four-sensor design such as the Lincoln Viking 3350 or the ARCCAPTAIN.
Does the shade 3 light state actually help on thin gauge TIG?
Yes, and it is the single feature we would not trade away. A shade 3 light state lets you see the joint, the rod tip and both edges of a fine weld without lifting the helmet, which removes the biggest time sink in thin-gauge TIG: raising and dropping the hood for every pass.
The light state also keeps the arc in a comfortable focal position when you are wearing magnification, because a dark or near-dark light state forces you to refocus each time the lens clears. If you have spent years welding and your eyesight is no longer what it was, that difference between a shade 3 light state and a shade 9 one is not cosmetic.
Where this helmet falls short against the picks above it
The viewing area is 3.64 by 1.67 inches, which sits in the most compact class here and is noticeably tighter than the Lincoln Viking 3350. On long tube joints where you need to see around the outside of the pipe as you move around it, that narrow window forces more head movement than the big-format lenses.
Owners also describe the shell and headgear as light duty, and the cheater lens holder is sized for small magnifiers rather than standard 4.25 inch lenses. Treat it as a helmet for a home shop, a hobbyist, or a technician rather than one to drop off a scaffold.
2. ARCCAPTAIN HSH-S800 Skeleton Knight – Best Four-Sensor Budget Helmet
ARCCAPTAIN Welding Helmet Auto Darkening, 1/25000s Response, Shade 4/9-13
Shade 4/9-13
4 sensors, 1/25000s
1/1/1/1 clarity
3.86 by 1.69 inch view
Pros
- Four arc sensors trigger reliably even on quiet DC TIG arcs
- 1/1/1/1 clarity in a compact but even viewing area
- External grind switch saves lifting the hood
- Lightweight with a padded adjustable headband
- EN 175 and EN 379 certified alongside ANSI and CSA
Cons
- A minority of owners report slow response on the first strike
- Plastic shell feels cheap out of the box
- Some owners report lens dimming after months of daily service
The ARCCAPTAIN is the value move in this roundup for one specific reason: four sensors where the entry-tier rivals give you two. Sensor count is the least glamorous spec on the list and it is the one that most often decides whether a TIG lens keeps working when the arc is small.
Dark state runs shade 4 through 13, so the lens will sit light enough for thin work and dark enough for a heavier root pass without changing cartridges. The viewing area is 3.86 by 1.69 inches at 1/1/1/1 optical clarity, and owners frequently describe it as the clearest lens they have owned at this price tier.
Three replacement lenses ship in the box, and the smart filter carries DIN 16 UV and IR protection. Certification covers ANSI Z87.1, CSA Z94.3, DIN EN 175 and DIN EN 379, which is a longer standards list than most of the budget shells in this group manage.
The honest weakness is first-strike response. A minority of owners describe the lens being slow to darken on arc ignition, particularly when the sensitivity control is still at the factory default. Turn sensitivity up one notch before you start and the problem largely goes away.
Is a four-sensor budget lens safe for real TIG work?
Sensor count changes detection reliability on small arcs, and detection reliability is the safety case, not a comfort feature. If the lens fails to darken fast enough on a DC arc, the welder is exposed to light that an ANSI Z87.1 filter is not designed to pass at full intensity.
That said, count is not everything. Optical class matters as much as sensor number, and this lens carries 1/1/1/1 across all four measurements, so diffusion, luminous transmittance, angular dependence and resolution are all in the top band. Buy it for the four sensors and the optical class, not for the sensor count alone.
Where this helmet falls short against the picks above it
The build is the trade. The shell is nylon and feels thin when you tap it, and a small number of long-term owners report the lens dimming or intermittently failing after many months of daily grinding and welding, which is not a failure mode you want inside a shop with no spare hood on the shelf.
The shade 4 dark state also means the light state is not as usable for sighting as the shade 3 on the YESWELDER LYG-L600A, so you will lift the hood a little more often for setup work.
3. TOOLIOM E600A-A Blue Eagle – Best for Overhead TIG Work
TOOLIOM Auto Darkening Solar Powered Welding Helmet for TIG MIG ARC with Light
DIN 3.5 light state, 9-13 weld
1/1/1/1 true color
About 1.14 lb
LED work light
Pros
- Light shell at about 1.14 lb
- True color 1/1/1/1 optics with a 3.64 by 1.67 inch view
- External grind knob plus rechargeable LED light
- Headgear stays put in overhead and inverted positions
Cons
- Cheater lens slot is too small for standard magnifiers
- Rear headband padding can press on the back of the head
- Shade floor is not dark enough for torch cutting
Weight is the deciding spec for overhead work, and this is one of the lightest helmets here that pairs true color optics with a rechargeable work light. At about 1.14 lb it puts noticeably less load on the neck than the heaviest shells in this group, and on a long overhead fit-up that difference shows up by hour two.
The shade range is DIN 3.5 for the light state and 9 to 13 for welding, with 1/1/1/1 clarity in a 3.64 by 1.67 inch viewing area. Arc detection is rated at 1/25000 second and the sensitivity and delay controls sit on the outside of the shell where gloved hands can reach them.
The dual-mode LED light, with spotlight and floodlight settings and adjustable tilt, is genuinely useful rather than decorative. When you are welding inside a duct or a frame with no room to swing a work light into position, having the light source mounted on the helmet removes a real annoyance.
Adjustable headgear that holds position when you are inverted is the other quiet strength. Headgear drift is a common complaint on budget shells after twenty minutes of overhead work, and a drifting helmet is a helmet that is no longer protecting your eyes from the correct angle.
Is a lighter helmet worth paying attention to for TIG?
For TIG specifically, yes, more than for MIG. TIG work is a static, close-focus task performed with your arms up, your head tilted down the torch, and your free hand doing fine motor work. That posture loads the neck continuously, and helmet weight is added to the top of your head the whole time.
A weight difference of a quarter of a pound does not sound meaningful until you have worn both. Over a full shift of stainless sheet work it is the difference between finishing comfortable and finishing with the kind of neck tightness that has you adjusting the harness in the truck.
Where this helmet falls short against the picks above it
The cheater lens slot is slightly too small for standard magnifiers, which is a real problem if you weld thin stainless and need magnification to read the joint. The rear headband padding can also press uncomfortably on the back of the head once it is tightened for a smaller head size.
The DIN 3.5 light state is on the bright side of useful, but the shade 9 weld floor is the limit to know about. If your work includes torch cutting you will need separate eye protection at the cut.
4. TRQWH KTS-JD03 True Color Hood – Best Helmet for Dim Shops
TRQWH Welding Hood Auto Darkening Welding Helmet with Light True Color
DIN 4 light state
1/1/1/2 true color
1/20000s
USB rechargeable LED
Pros
- True color view well suited to fine TIG work
- External sensitivity
- delay and grind controls
- USB rechargeable top LED for low light shops
- Thickened forehead sponge spreads helmet load
Cons
- Head strap loosens during longer sessions
- Plastic shell is brittle and can crack if dropped
- Only a 30 day warranty
The TRQWH is built around a simple idea: keep the helmet down as long as possible. It has an external grind button, external sensitivity and delay knobs, and a USB rechargeable LED mounted on top of the shell, so you rarely need to take the helmet off between operations.
Optical clarity is 1/1/1/2 rather than 1/1/1/1, with the 2 applying to angular dependence, and switching is rated at 1/20000 second. That is slightly behind the fastest lenses in the group on paper and it is not a difference you will notice on a steady TIG arc.
It is rated for DC and AC TIG along with MIG, MMA, plasma and abrasive cutting, and it carries ANSI Z87.1, EN 379 and CSA Z94.3 marks. The shell runs on solar plus a replaceable lithium battery, so it is not tied to a coin cell format that is awkward to source.
Our read on the real-world weaknesses matches what owners report. The head strap loosens over long sessions, so re-tightening mid-shift becomes a habit, and the plastic shell is brittle enough that dropping the helmet onto a concrete floor is a mistake you only make once.
Does the top LED change how you work in a dim shop?
More than most people expect. A shaded shop with overhead fluorescents and a partly blocked bench light leaves you squinting between welds, and the alternative is lifting the helmet to see the joint, which breaks your setup every time.
A helmet-mounted light removes that cycle. The TRQWH light is USB rechargeable rather than cell powered, so you charge it on the same cable as everything else in the shop, and it stays out of the way until you tilt your head down over the joint.
Where this helmet falls short against the picks above it
A 30 day warranty is a short commitment for a helmet you plan to keep for years, and that is worth weighing. The 1/1/1/2 optical class also means it gives up a little in angle dependence compared with the 1/1/1/1 lenses, which shows when you tilt your head to look around a joint.
For low-amp work specifically, note that the light state is DIN 4 rather than DIN 3, so setup sighting is slightly darker than on the YESWELDER LYG-L600A.
5. YESWELDER LYG-M800H Large View Helmet – Best Value for TIG
YESWELDER Auto Darkening Welding Helmet, Large View, LYG-M800H
3.93 by 3.66 inch true color view
4 sensors, 1/30000s
DIN 3 light state
Ratchet closure
Pros
- Exceptionally wide 3.93 by 3.66 inch viewing area
- 1/1/1/1 true color clarity makes bead placement easier
- All shade and mode controls sit on the outside
- Light enough to wear for hours without neck strain
Cons
- Headgear tension knobs and pivot strap feel flimsy
- Thin shell and battery compartment are not robust
- Can appear unresponsive when tested against sunlight rather than an arc
The M800H is the helmet to buy if you work around pipe and tube. Its 3.93 by 3.66 inch viewing area is dramatically wider than the 3.6 by 1.7 inch class most budget helmets fall into, and when you are walking a bead around a 4 inch pipe, that extra width is the difference between seeing your puddle and hunting for it.
The lens is 1/1/1/1 true color, with four arc sensors and 1/30000 second switching. Shade control covers DIN 3 as a light state plus 5 to 9 and 9 to 13 ranges for weld, cut and grind, which is a complete shade ladder from a light setup state to a dark cutting state in one cartridge.
At roughly 1.32 lb it sits in the middle of the weight range here, and the ratchet closure gives you a firmer, more repeatable fit than a strap. Everything you adjust, including shade and mode, is on the outside of the shell so you can set it in gloves.
Owners tell a consistent story here. They talk about the view changing how they weld, and then they talk about the headgear. The tension knobs and pivot strap are the weak points, and the thin shell and battery compartment are not built to survive being dropped or sat on.
Is a much larger viewing area worth it for pipe and tube TIG?
Yes, and the reason is geometric rather than aesthetic. On a round joint, your line of sight to the puddle changes constantly as you move around the circumference. A wide lens lets you make that adjustment with your eyes instead of with your head.
It also reduces how often you fully lift the helmet to reposition. Every lift costs you your setup, and on a production tube job where you are doing dozens of joints, the saved motions add up quickly. Owners frequently describe bead placement getting easier as a direct result of the wider view.
Where this helmet falls short against the picks above it
The rating sits a notch below the leaders, and the difference shows up in component quality rather than optics. The headgear slips, the shell is thin, and owners also report that the lens can appear unresponsive when tested against sunlight instead of an arc, which matters if you work outdoors.
Its 4.4 rating across a very large review base is worth reading as an average of a lot of satisfied buyers and a handful of owners who have replaced headgear or moved on from the shell. We still rate it the best value in the group, but we would not call it the best built.
6. Hobart 770890 PureColor Helmet – Best Shop Helmet for Sensor Dependability
Hobart 770890 Auto-Darkening Welding Helmet, Large, Black
9.3 inch widescreen PureColor lens
4 independent arc sensors
Analog controls
2 year warranty
Pros
- PureColor optics across a 9.3 inch widescreen viewing area
- Four independent sensors give dependable detection on quiet DC arcs
- Simple analog knobs for shade
- sensitivity and delay
- Backed by a 2 year manufacturer warranty
Cons
- Analog controls are less precise than digital interfaces
- No replaceable battery option beyond the supplied CR2 cell
- Heavier feel than ultralight competitors
The Hobart is the helmet here that feels most like shop equipment rather than a consumer purchase. Four independent arc sensors, a 9.3 inch widescreen viewing area with PureColor lens technology, and an auto-on and auto-off power control that wakes at arc strike and shuts down when you stop.
The controls are analog, which is either a feature or a limitation depending on your temperament. Three knobs for shade, sensitivity and delay give a coarse adjustment with a satisfying physical detent, and they cannot be dialled in to the fine increments a digital interface offers.
Weld to grind switching takes one press, and UV and IR protection is continuous rather than only when the filter is dark. That last point is worth noting because it is a common question with auto darkening lenses in general, and it applies to every compliant helmet on this list.
The 2 year warranty is longer than most of the budget tier. Owners describe it as a dependable shop hood that has simply worked, with the trade-offs being the analog interface and a bulkier feel than the ultralight competitors.
Why do four independent sensors matter on DC TIG?
A DC TIG arc is a quieter light source than a MIG arc or an AC arc. The sensors have less to detect, and if the lens is slow to react on a small pool, the first fraction of the arc passes through a filter that has not finished darkening.
Spreading four sensors across the lens means any one of them can pick up the arc even when your head is tilted at an angle that would leave one sensor facing away from the pool. On tube work and on out-of-position joints, that redundancy is what stops the flicker and dropout complaints we hear about cheaper two-sensor lenses.
Where this helmet falls short against the picks above it
Analog controls cannot hold a setting as precisely as a digital interface, and there is no display to confirm which shade or sensitivity you are on when the dial is inside your hood. In low light, or with scratched glasses, a digital readout is genuinely helpful.
The shell is also heavier in the hand than the ultralight options, and the supplied CR2 cell is not a format you can swap for anything else. If you like knowing exactly what your settings are, the digital helmets will suit you better.
7. Miller Classic ClearLight Helmet – Best for Micro-TIG and Thin Metal
Miller Classic Series Welding Helmet, ClearLight™, Shade 8-13, Black
ClearLight optics
Weld 8-13, cut 5-8, grind 3
2 sensors, 1/23000s
3.0 light state
Pros
- ClearLight optics give an accurate view of the puddle at low amperage
- Optimised by the manufacturer for welding at 5 amps or below
- 3.0 light state lets you keep the hood down between welds
- Three year warranty with three years of spare part availability
Cons
- 6 square inch viewing area is small for large-format lenses
- Only 2 arc sensors can be less reliable on low-amp TIG
- Weld shades start at 8
- so very thin material may need a lower setting
The Miller Classic is one of the better finished answers in this group. The lens uses ClearLight technology with high-definition optics, and Miller positions it explicitly for welding at five amps or below, which is the exact corner of the TIG range that defeats most auto darkening helmets.
The light state is 3.0, so you can sight the joint with the hood down, and there are digital controls for shade, delay and sensitivity plus a ratchet headgear. Weld shades run 8 to 13, cut shades 5 to 8, and grind is 3.
Switching is rated at 1/23000 second from two arc sensors, and that is the spec we would change first. Two sensors on a genuinely low-amp DC arc is exactly the configuration most likely to produce a missed trigger or a momentary dropout, and several owners point at it.
The three year warranty and three years of stated spare part availability are both better than most of the shells here. If you keep a helmet for ten years, knowing that headgear and replacement parts exist is worth real money.
Is a shade 8 weld floor a problem for thin-gauge TIG?
Sometimes, and it depends on your amperage rather than on your material. On 304 stainless at 25 to 40 amps, a shade 8 weld setting is bright and the puddle is very legible. On 0.002 inch material at 8 amps, the same setting can be dark enough that you are squinting at the edge of the pool rather than reading it.
The cut shades at 5 to 8 are the useful part of this spec sheet. They give you the low numbers through the same digital interface, which is why the Miller can still handle fine work even though the weld range starts at 8. If your whole practice is micro-TIG, check that the low settings you need are actually in the weld range, not only the cut range.
Where this helmet falls short against the picks above it
The 6 square inch viewing area is compact. Compared with the 12.5 square inch lens on the Lincoln Viking 3350 or the 9.3 inch widescreen on the Hobart, you will move your head more, particularly on pipe work where you need peripheral awareness around the joint.
Two sensors is the other limitation, and combined with the shade 8 weld floor it makes this a better fit for a confident low-amp welder working in good light than for a beginner doing fine work in a dim shop. If that is not your situation, the four-sensor helmets are the safer starting point.
8. Lincoln Electric K4983-1 No Rules No Limits Helmet – Best for Pulsed TIG
Lincoln Electric No Rules No Limits Welding Helmet K4983-1, Auto Darkening, Lightweight Weld Headgear, Shade 7-13, Grind Mode, Use for Stick, TIG, Pulsed TIG, MIG, Pulsed MIG, Flux Core, Gouging
Variable shade 7-13 plus grind
TIG rated from 5 amps
17.5 oz
Solar with battery backup
Pros
- Very light at 17.5 oz with an oversized absorbent sweatband
- Explicitly rated for TIG and pulsed TIG from 5 amps
- Variable shade 7-13 plus a dedicated grind mode
- Hard hat compatible with two spare lenses included
Cons
- Fewer customer reviews than the competing hoods here
- Shade range starts at 7 so very low settings are unavailable
- Nylon shell is lighter duty than premium professional helmets
This Lincoln is built for a specific situation: pulsed TIG. The manufacturer lists stick, TIG, pulsed TIG, MIG, pulsed MIG, flux core and gouging as supported processes and rates it for TIG from 5 amps upward, which is the certification language you want if your machine runs pulse.
Pulse is the harder case for an auto darkening lens because the arc repeatedly brightens and dims. A lens that reacts to the peak rather than the average will seem to flicker, so a wide variable shade range and a well-behaved delay control matter more here than the raw light state brightness.
Variable shade runs 7 to 13 with a separate grind mode, and the hood is solar powered with battery backup, so it will not die mid-job if you are away from the bench power. The viewing area is 4.33 by 3.54 inches, which is a wide format for this weight class.
At 17.5 oz with an oversized absorbent sweatband, it is one of the lighter shells here and the one we would pick for long pulse runs where you keep your head tilted over a torch for an hour at a time. It is also hard hat compatible, which matters for structural and site work.
Can a pulse TIG machine trigger an auto darkening helmet reliably?
Yes, provided the lens is not set to its most sensitive position. Pulse TIG switches between a high and a low current in the space of a fraction of a second, so the sensor sees a rapidly modulating light source rather than a steady arc.
Setting sensitivity a notch or two below maximum gives the lens a stable reading of the peak and eliminates the flicker people report. The same advice applies to any helmet on pulse work, but a variable 7 to 13 shade range with a dedicated grind mode gives you more room to set it than a fixed two-position design.
Where this helmet falls short against the picks above it
The shade range starts at 7, so if your practice includes thin sheet below about 15 amps you will be working at the very bottom of the range with no room to go lighter. That is the opposite of the problem the LYG-L600A solves.
The review base is also the thinnest in this roundup, which means less long-term feedback to lean on. And the nylon shell is lighter duty than the professional helmets, so it suits a light to moderate duty cycle rather than grinding work all day.
9. Jackson Safety Insight HLX Helmet – Best for Tight Spaces and Pipe Welding
Jackson Safety Insight Auto Darkening Welding Helmet, ADF Hood – ANSI Z87.1
6 ounce HLX shell
Shades 9-13 at 1/1/1/1
4 arc sensors
Weld, Torch and Grind modes
Pros
- Very light shell at 6 ounces for tight spaces and inverted work
- 1/1/1/1 true color lens that works with inverter machines
- Digital controls with dedicated Weld
- Torch and Grind modes
- Patented 370 Speed Dial headgear holds position through an up detent
Cons
- Light state is fairly dark and can feel dim in a bright shop
- Sensitivity may be too high and trip on reflected light
- Shade range starts at 9 with no lower weld shades
Six ounces is not a typo. The Jackson Insight uses a flexible HLX shell that weighs a small fraction of what the large professional shells weigh, and that is the entire argument for it. Inside a duct, inside a frame, or on an overhead fit-up where you cannot get your head into a comfortable position, weight is the limiting factor.
Optics are 1/1/1/1 true color across a 3.94 by 2.36 inch viewing area, with four arc sensors and digital controls for sensitivity and delay. Modes are labelled Weld, Torch and Grind, and the Torch mode is aimed at the lower current end of TIG work.
The 370 Speed Dial ratcheting headgear with a Qwik-Fit rear swivel band holds its setting, which matters when you are working in the dark inside something and cannot see the adjustment. Standard 4.5 by 5.25 inch front cover lenses fit, so replacement glass is easy to source, and the shell adapts to a hard hat.
What you give up is shade range. It runs 9 to 13 with no lower weld shades, which is fine for structural and pipe work at normal amperage and a poor choice for thin material at low current.
Is a 6 ounce shell too floppy to use for TIG?
No. The HLX shell is flexible by design, and flexibility is an advantage when you need to reach a torch angle you would not attempt in a rigid shell. Owners report long-term daily service without the shell cracking or the lens shifting.
The flexibility does not affect the lens plane, which is what matters for TIG, because the cartridge is held rigidly inside the shell. The trade is durability against impact, and if your work involves a lot of grinding and dropping the helmet, a rigid shell ages more gracefully.
Where this helmet falls short against the picks above it
The light state is fairly dark, which is a strange thing to complain about in a helmet that is otherwise excellent for pipe work, but it is a real annoyance in a brightly lit shop between welds. The sensitivity can also be set high enough that the lens darkens on reflected light rather than a real arc.
Shades starting at 9 rule out thin-gauge work entirely. If you need one helmet for everything, this is the wrong shape of tool; if you weld pipe in tight spaces, it is close to ideal.
10. Lincoln Electric Viking 3350 4C Lens Helmet – Best Premium Helmet for TIG
Lincoln Electric K3034-4 VIKING 3350 Auto Darkening Welding Helmet with 4C Lens Technology, Matte Black, extra large
4C lens at 1/1/1/1
12.5 square inch lens
X6 headgear
5 year warranty
Pros
- 4C lens technology delivers a notably clear puddle view
- 12.5 square inch extra large lens with an unusually wide field of view
- X6 headgear distributes weight across the whole head
- Works reliably on low-amp TIG without arc flash
Cons
- More expensive than the rest of this group
- Occasional reports of slow reaction when striking an arc
- Internal shade switch must be set correctly because the lens responds brightly
It carries the highest owner rating in this group and is the one owners describe in the most absolute terms. The 4C lens technology delivers 1/1/1/1 clarity across a 12.5 square inch lens, which is a genuinely large format, and the consistent comment in the reviews is that the puddle simply became visible in a way other lenses had not managed.
For TIG that is the whole pitch. At low amperage the pool is faint, and a lens that transmits more of the scene while still filtering ultraviolet and infrared gives you an earlier read on where the toes of the puddle are before they disappear into an oversize pool.
The X6 headgear distributes weight across the head rather than concentrating it on the crown, and a ratchet knob sets the tightness. It fits hat sizes 6.5 to 8, it uses standard inexpensive cover lenses rather than proprietary glass, and the box includes five outside and two inside cover lenses plus a helmet bag.
The warranty is five years with five years of stated spare part availability, which is the longest commitment listed here. Owners frequently cite reliable low-amp TIG operation without arc flash as the reason the helmet paid for itself.
Is the 4C lens genuinely better than a 1/1/1/1 budget lens?
Both carry 1/1/1/1 optical class ratings, so on paper they sit in the same band. The difference is in how the light is rendered rather than whether it is safe, and it shows up in colour and contrast rather than in brightness.
That matters because TIG work is a colour judgement. Watching the heat tint move from straw to blue to grey tells you where the heat is going, and a lens that desaturates the scene takes information away from you that a more neutral lens preserves. It is the reason welders who move up to this tier rarely go back.
Where this helmet falls short against the picks above it
Cost is the obvious answer, and for a part-time hobbyist welding a few hours a month it is difficult to justify against a budget shell that performs acceptably. We rank it below the LYG-L600A on value and above it on viewing area and low-amp behaviour.
Owners also mention occasional slow reaction on the first strike, and the internal shade switch needs to be set correctly because the lens is bright enough in the light state to surprise someone who has assumed a heavier filter. Set it before you need it, not during.
How to Choose an Auto Darkening Welding Helmet for TIG
Choose on the lowest shade the lens will reach, then everything else follows. Here are the six specs that decide whether a helmet suits TIG work, in the order that actually matters.
1. Shade floor and the light state
For TIG, the lowest shade the lens reaches matters more than the highest. A helmet that darkens to 13 but bottoms out at 9 is comfortable for MIG and painful for TIG, because the small faint pool that TIG produces needs a lighter filter than the big bright pool from a MIG gun.
Look at two numbers, not one. The light state is the shade you see with the arc off, and a shade 2.5 to 4 light state means you can sight the joint and your filler rod with the helmet down. The weld shade floor is the darkest setting available while welding, and shade 5 or lower is the practical threshold for thin work.
2. The rule of 33 and how it maps to shade
The rule of 33 is a shop shortcut for DC TIG amperage: 33 amps is roughly 1/32 inch of material thickness in inches, so 0.125 inch steel needs about 100 amps and 0.035 inch needs about 35 amps. It gives you a starting point before you refine it.
Converted to shade, the pattern is consistent. Around 3 to 10 amps on very thin material you want the lowest shade on the helmet. Between about 15 and 40 amps, the mid shades sit comfortably. Above roughly 60 amps on plate, the darker end of the range takes over. Helmets with a shade 3 or 4 light state handle the bottom of that ladder; helmets that start at 7 or 9 do not.
3. Optical class rating
The EN 379 four digit rating reads optical class, then luminous transmittance, then angle dependence, then resolution. Look for a helmet rated 1/1/1/1 or 1/1/1/2. Anything containing a 2 in the first position is a second class lens and we would not put one on a TIG bench.
The final digit matters more than people expect for TIG. Resolution determines whether you can separate the edge of the puddle from the edge of the joint, which is exactly the judgement TIG asks you to make repeatedly on thin material.
4. Arc sensing: sensor count and sensing type
Optical-only sensing reacts to the light from the arc. Electromagnetic or X-mode sensing reacts to the electrical field as well, which makes it far less likely to be fooled by bright shop lighting and more likely to trigger on a quiet DC arc.
Sensor count matters in practice because it reduces blind spots. When your head is tilted to look around a joint or down inside a pipe, a single sensor may be facing away from the pool. Four sensors spread across the cartridge give you redundancy, and we prefer four optical sensors over two on any TIG-dominant work.
5. Switching speed
Speeds in this group run from 1/20000 to 1/30000 of a second, and the differences are smaller than the marketing implies. Any lens in that range is fast enough for MIG and stick.
What actually matters is consistency. Lenses that report slow first-strike reaction in owner reviews tend to do it consistently, and a lens that lags on ignition is more annoying than one that lags on re-darkening during a restrike.
6. Viewing area, headgear and weight
Viewing area is the spec people underrate. Anything at 3.6 by 1.7 inches is workable for flat sheet; pipe and tube work wants a wide format, and 9 square inches or more changes how you move around a joint.
Weight decides whether you can wear the helmet all day. Under a pound is comfortable for long sessions, and headgear quality decides whether it stays where you put it. Ratchet systems hold better than straps, and a good sweatband matters more in a hot shop than any other comfort feature.
If you are still building out a home setup, our guides to the best auto darkening welding helmets for hobbyists and the best welding helmets with auto darkening lenses cover the budget and full-size options in more depth.
Helmet Care and Cover Lens Costs
Look after the cartridge and the cover lenses and any auto darkening helmet should last years. Most owners who report problems had a scratched or clouded outer lens long before the electronics gave up.
Clean the inside of the outer cover lens with a soft cloth and a little mild detergent, never with the abrasive side of a sponge. Scratches on the inside surface scatter light directly into your eyes at exactly the moment the arc is brightest, which is the worst possible condition for a TIG welder judging puddle detail.
Replace outer lenses on appearance rather than on a schedule. Once a lens is visibly hazed, contrast on the puddle drops and welders compensate by guessing. Inner lenses sit closer to the cartridge and usually last considerably longer than the outer ones on the same helmet.
If your shell is solar powered, wipe the solar panel with a cloth as part of the same routine. A dirty panel will not fail the helmet, but it can reduce battery life between charges, and the cells are usually tucked where spatter settles.
Keep spare cover lenses in the right size. Most of the shells here take standard front lenses, which is one reason the Lincoln Viking 3350 is easier to own than premium helmets with proprietary glass.
Troubleshooting Low-Amperage TIG Helmet Problems
Almost every TIG complaint about auto darkening helmets comes down to one of four problems. Each has a cause you can test and a fix you can apply without opening the helmet.
If the lens does not darken at all, the sensitivity control is the first thing to check. Turn it up one notch at a time until it triggers, then back off one notch from that point. A secondary cause is ambient light. Bright sunlight floods the sensors and can keep a lens in a state where it never registers the arc as a change, which is why some pipe welders still prefer a passive lens outdoors.
If the lens flickers or dims partway through a weld, the usual cause is that the arc is partly blocked, for example inside a pipe or around an obstruction, so the sensors lose enough light to drop back toward the light state. Turning sensitivity down slightly fixes most of this, and setting the delay control to a longer release time helps the lens hold shade through the gap.
If the lens darkens when there is no arc, reflected light from a stainless table or a bright window is tripping it. Again, sensitivity down. Do not leave the sensitivity wide open on a shop floor with polished surfaces, because that is the setting that produces the most complaints about these helmets in general.
If the image looks hazy or yellowed after months of use, that is the inner cover lens, not the cartridge. Pull it out, and if it is scratched or clouded replace it rather than trying to clean it back to clear.
On a forum thread in r/Welding, one aerospace welder described exactly this progression: coming off fixed shade 11 pipe work onto 0.006 and 0.0024 inch material at 11 to 12 amps and struggling to see the puddle toes on pulse. The fix was not a better helmet so much as a lens with a low enough light state to sight the joint, which is the argument for the shade 3 models we rate highest here.
Frequently Asked Questions
What is the best welding helmet for TIG welding?
For most TIG work the best auto darkening welding helmet is one whose lens reaches a shade 3 light state and offers weld shades down to 5 or 7, because TIG on thin material produces a faint pool that a shade 9 filter hides. In our testing the YESWELDER LYG-L600A led the group on that combination, with the Lincoln Viking 3350 as the premium option for a large 4C viewing area.
What is the best auto dark lens shade for TIG welding?
The best auto dark lens shade for TIG depends on amperage, not on material alone. Around 3 to 10 amps on very thin stock you want the lightest shade available, roughly 5 to 7. Between 15 and 40 amps, mid shades in the 7 to 10 range are comfortable. Above 60 amps on plate, move toward 11 to 13.
What is the rule of 33 in TIG welding?
The rule of 33 is a DC TIG starting point for amperage: multiply the thickness of the material in thousandths of an inch by 33. So 0.035 inch mild steel is about 105 amps and 0.062 inch is about 135 amps. Treat it as the opening setting, then adjust down for thin material and your electrode diameter.
What is the best helmet setting for TIG welding?
Start at the lowest shade the lens offers, raise it one step at a time until the puddle and the joint edges are both legible, then leave it there. Set sensitivity near the middle rather than maximum, raise it only if the lens fails to trigger on quiet DC arcs, and use delay to stop the lens snapping back to clear during restrikes. On pulse TIG, back sensitivity off one or two notches.
Can I use a MIG helmet for TIG welding?
Yes, most MIG helmets work for TIG, because TIG arc is within the filter range. The catch is the shade floor. If your MIG helmet bottoms out at shade 9 you will struggle on thin material and low amperage, and if it only has two arc sensors it may flicker on a small DC arc. A TIG-capable lens reaches shade 5 or lower and usually carries four sensors.
Why is my welding helmet not darkening during TIG?
The three usual causes are sensitivity set too low, ambient light washing out the sensors, and a lens that is too small to light for the arc position. Turn sensitivity up until it triggers reliably, then step back one notch. Outdoors in bright sun, optical-only sensors can struggle and an electromagnetic sensing helmet or a passive lens is the reliable answer.
How many arc sensors do I need for TIG welding?
Four arc sensors are the sensible target for TIG. The sensors sit at different points on the cartridge, so tilting your head to look around a joint or down inside a pipe will not leave every sensor facing away from the pool. Two sensors are adequate for flat sheet MIG work but are the most common cause of flicker reports on small DC TIG arcs.
Final Verdict
The best auto darkening welding helmets for TIG are the ones that go light. Our pick, the YESWELDER LYG-L600A, combines a shade 3 light state with 1/1/1/1 true color optics and the largest body of owner feedback among the ten, which is why we would put it on the bench first. If your work is pipe and tube, take the YESWELDER LYG-M800H for its viewing area instead.
If you are buying once and welding TIG as paid work for the next decade, the Lincoln Viking 3350 is the helmet to own, with the highest owner rating in the group, a 12.5 square inch lens and a five year warranty. Whichever you choose, set the shade floor for your lowest amperage rather than your highest, and start October 2026 with sensitivity at mid-range.
We keep this list updated as new models land and as owner feedback accumulates. If you also need machines to drive these helmets, our picks for the best MIG welders for auto body work are tested on the same coupons.
