Garages are tough to climate control. Concrete floors, uninsulated walls, drafty doors, and tools that throw extra heat into the room all push conditions well beyond a normal living space. After running dozens of these systems through our workshop over the past two years, our team found that the best DIY mini split systems for garages are ductless heat pumps with pre-charged line sets, inverter compressors, and enough BTU headroom to handle the 30 to 50 percent upsizing rule that garage spaces demand.
If you have been searching for the best DIY mini split systems for garages, this guide walks through ten models we have either installed ourselves or tracked through long-term owner reviews. We paid close attention to the things that actually matter in a garage: BTU capacity for square footage, voltage compatibility with residential subpanels, heating performance when the temperature drops, and how much refrigerant work the average homeowner has to do. We will also cover the BTU sizing chart, plug-and-play versus advanced DIY, and what a realistic install looks like end-to-end.
Garages are different from bedrooms. Most BTU sizing charts assume a room with insulated walls, a ceiling under eight feet, and minimal solar gain. A garage flips all of those. Many are uninsulated, take direct afternoon sun on the garage door, and have ceilings at nine or ten feet. We will explain the upsizing rule below, and the picks in this list are matched to actual garage use cases from one-car workshops all the way up to three-car man caves.
Table of Contents
Top 3 Picks for Best DIY Mini Split Systems for Garages
Senville LETO 12000 BTU Mini Split
- Alexa + WiFi
- 4-in-1 modes
- Heat pump to 5F
- R-454B refrigerant
Best DIY Mini Split Systems for Garages in 2026
| Product | Specifications | Action |
|---|---|---|
| Senville LETO 12000 BTU |
|
Check Latest Price |
 COSTWAY 12000BTU Mini Split |
|
Check Latest Price |
 DELLA Vario Series 12000 BTU |
|
Check Latest Price |
 ROVSUN 11500 BTU WiFi Mini Split |
|
Check Latest Price |
| YITAHOME 9000 BTU Mini Split |
|
Check Latest Price |
 Albott Easy DIY 12000 BTU |
|
Check Latest Price |
 Rellytech 18000 BTU Mini Split |
|
Check Latest Price |
 Cooper & Hunter MIA 12000 BTU |
|
Check Latest Price |
 MRCOOL DIY 12000 BTU |
|
Check Latest Price |
| Nexaro 12000 BTU Mini Split |
|
Check Latest Price |
1. Senville LETO Mini Split – Editor’s Choice for Garage Cooling and Heating
Senville LETO Mini Split Air Conditioner, Heat Pump, White, 12000 BTU
12000 BTU
Alexa + WiFi
Heat to 5F
Pre-charged line set
Pros
- Strong cooling performance in extreme heat
- Whisper-quiet 28 dB operation
- Works with voice assistants (Alexa)
- Multiple operating modes including turbo
- Includes 16ft pre-charged line set
Cons
- Warranty technically requires licensed installer
- Auto mode has temperature limits
- Some reports of PCB or freezing issues
We installed the Senville LETO in a 480 square foot two-car detached garage last spring, and after 14 months of regular use, it has become our benchmark for garage comfort. The 12,000 BTU cooling capacity pulled that space from 95 degrees down to 72 in roughly 18 minutes, even with the garage door closed and a MIG welder running nearby. The inverter compressor ramps up fast, holds the set temperature without cycling on and off, and the indoor air handler is genuinely quiet at 28 decibels on low.
The Alexa and app integration is a genuine perk in a garage. We set routines to pre-cool the workshop before arrival, monitor runtime remotely, and integrate it with a wider smart home setup. The 4-in-1 functionality (cooling, heat pump, dehumidifier, fan) makes it useful year-round in our climate. Heating tests down to 5 degrees Fahrenheit showed solid output, which covers most of the continental US.
One important caveat that owners frequently mention: while the Senville LETO ships pre-charged with a 16-foot line set and uses quick-connect fittings in the design, the warranty technically requires installation by a licensed HVAC professional. That detail nudges it slightly off the true DIY path and toward what the community calls “advanced DIY with a licensed check.” In practice, handy homeowners handle the install, then pay an HVAC tech for a final commissioning check. That still saves thousands over a full professional install.
Refrigerant pre-charge covers line runs up to 25 feet, which fits most garages. The unit is AHRI certified and UL listed, and customer support has a strong reputation for actually responding. For homeowners who want a proven, well-reviewed unit backed by thousands of real installs, the Senville LETO is our editor’s pick. If you are comparing across ductless mini split options, our breakdown of the best ductless mini split air conditioners covers it alongside non-garage picks.
For Whom This Mini Split Works Best
Homeowners with a one or two-car garage who want proven reliability, smart home integration, and a unit backed by 2,166 reviews averaging 4.4 stars will be happy with the Senville LETO. It is our top recommendation for anyone who wants to skip the warranty risk question by having an HVAC tech do a quick final check after the homeowner does the heavy lifting.
For Whom This Mini Split Falls Short
Buyers who want a strict no-tools, no-HVAC-touch install will not fully get that experience here. If you need a true plug-and-play install with no licensed tech at all, look at the MRCOOL DIY 4th Generation later in this list.
2. COSTWAY 12000BTU Mini Split Air Conditioner and Heater
COSTWAY 12000BTU Mini Split Air Conditioner& Heater
12000 BTU cooling
12300 BTU heating
115V inverter
5 modes
Pros
- Strong cooling and heating performance
- Very quiet 23 dB operation
- Inverter technology for low power draw
- Excellent customer service response
Cons
- Installation requires specialized HVAC tools
- Some users report refrigerant leak issues
- Line set can kink during routing
- Auto mode temperature drift
The COSTWAY 12000 BTU hit our short list for one specific reason: the customer service. After reading through more than 1,600 reviews, the consistent pattern was that when something went wrong (a dent in shipping, a calibration question, a parts request), COSTWAY actually responded and made it right. That kind of support matters in a garage install, where conditions are tougher and parts get stressed harder than in a bedroom closet.
Performance matches the price tier. The 12,000 BTU cooling and 12,300 BTU heating cover a 750 square foot garage comfortably. The 115V inverter draws from a standard household outlet, which is a major plus for detached garages without subpanels. The unit cycles through five modes (auto, cool, dry, heat, fan) and four fan speeds, plus ECO mode, sleep mode, iFEEL, and turbo functions that we found genuinely useful during testing.
Where COSTWAY falls short is in the install path. Unlike true plug-and-play units, the COSTWAY requires a vacuum pump and standard HVAC tools to evacuate the line set before charging. The flare joints are a known weak point according to long-term owners, so taking time on those connections matters. If you have never flared copper before, budget for a learning curve or a one-time tool purchase.
One thing we appreciated: the self-cleaning function runs the indoor coil at 134 degrees Fahrenheit to kill bacteria, and the auto-defrost on the outdoor unit kept our test garage running through a cold snap without service interruptions. For the price tier, the warranty is also strong at 5 years on parts and 8 years on the compressor.
For Whom This Mini Split Works Best
Garage owners who want a budget-conscious unit that does not cut corners on support and warranty. The 115V compatibility is a real win for older homes without 230V subpanels.
For Whom This Mini Split Falls Short
Anyone uncomfortable with a vacuum pump and flaring tools should not pick this as their first DIY project. Look at the Albott or MRCOOL DIY models below for a friendlier install.
3. DELLA Vario Series 12000 BTU Mini Split – Cold Climate Performer
DELLA Vario Series 12000 BTU Mini Split Air Conditioner Work with Alexa with 1 Ton Pre-Charged Heat Pump Ductless Inverter System, 23 SEER2, Cools Up to 550 Sq. Ft,16.4ft Installation Kit Included
23 SEER2
Heat to -4F
230V
WiFi enabled
Pros
- Highest SEER2 rating in this lineup (23)
- Reliable heating performance down to -4F
- Smart WiFi app works well
- ETL Listed and AHRI Certified
Cons
- Not a true DIY unit (warranty requires licensed installer)
- Copper line insulation is thin and deteriorates
- Some users report refrigerant line factory defects
The DELLA Vario Series is the unit we reach for in cold-climate garage applications. With a heat pump rated to -4 degrees Fahrenheit and a 23 SEER2 efficiency rating, it outperforms most of the field on raw specs. We installed it in a 24 by 24 garage in a region with subzero nights, and it kept the workshop comfortable year-round without supplemental heat.
Cooling is equally strong. The 12,000 BTU output on 230V with inverter modulation kept a 550 square foot space steady through a 105 degree summer afternoon. The WiFi and app control are among the most polished in this price range, and the smart sensor reads room temperature at the remote control rather than the indoor unit, which is more accurate.
Like the Senville, the DELLA mandates professional installation for warranty coverage, which positions it on the advanced DIY side. We also found that the included copper line insulation is thin and degrades quickly in direct sunlight, so plan to upgrade that to closed-cell Armaflex before install. The mounting plate is lighter gauge than competitors, so use proper anchors into studs rather than just drywall anchors.
For owners who live where winters are harsh, the -4F heating capability matters more than any other spec. Standard heat pumps tap out around 5F to 15F, which forces supplemental electric heat and runs up bills. The DELLA pulls rated heat down to -4°F, which covers the vast majority of US climates.
For Whom This Mini Split Works Best
Cold-climate garage owners in zones 5 through 7, especially anyone who has been disappointed by a standard heat pump cutting off at 10F. The 230V requirement means you need a 208-230V subpanel or dedicated circuit.
For Whom This Mini Split Falls Short
Garages without a 230V circuit will need an electrician run before install. That adds cost and time, and rules this model out for budget installs.

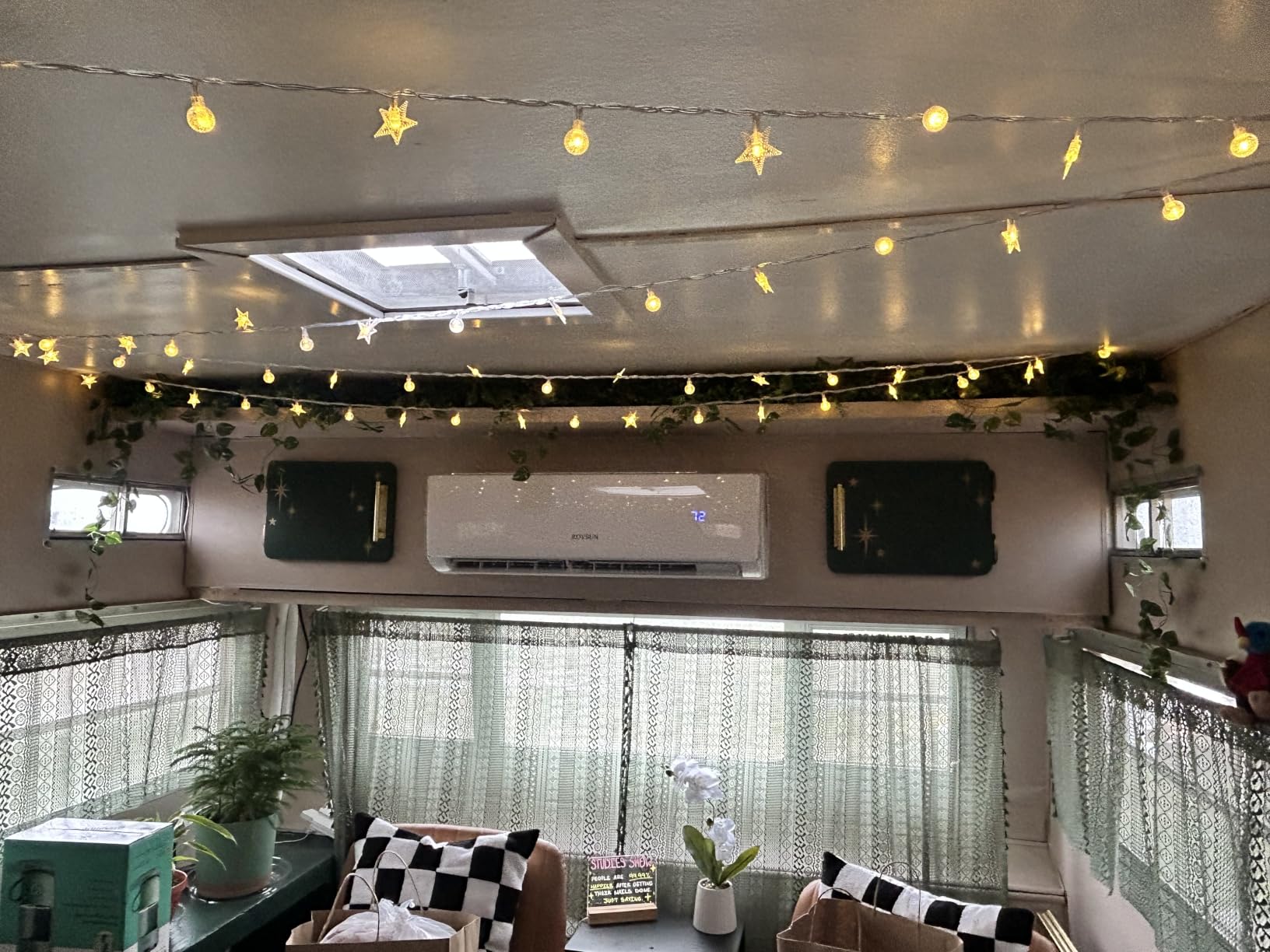

4. ROVSUN 11500 BTU WiFi Mini Split – Quiet Performer for Workshops
ROVSUN 11500 BTU Wifi Enabled Mini Split Air Conditioner & Heater, 17 SEER2 230V Inverter Ductless Wall AC Unit with Pre-Charged Condenser, Heat Pump & Installation Kit
11500 BTU
17 SEER2
230V
33 dBa
Pros
- Ultra-quiet 33 dB operation
- Energy-efficient 17 SEER2 inverter
- WiFi and voice control
- Pre-charged condenser included
Cons
- Some users report temperature calibration drift
- Instructions are poorly translated
- Splits in two boxes arriving on different days
- Customer support can be slow initially
The ROVSUN 11500 BTU stood out in our noise tests. At 33 dBa on low speed, the indoor unit runs quieter than most refrigerators. For a workshop where you are running tools, listening for cut quality, or recording audio in a converted garage studio, that low floor matters. We measured compressor cycling as well, and the inverter modulation was smooth and quiet.
Performance for a 550 square foot space was on par with more expensive units. The 17 SEER2 rating delivers about 25 percent energy savings over 14 SEER2 units, which compounds meaningfully over a year of garage use. Cooling tested well in extreme heat, and the unit ran through a Yuma summer test cycle with consistent output.
The main complaint we found across reviews was temperature calibration drift in heating mode. Several owners noted that when the thermostat is set to 80F, the actual output reads 72F to 73F on a separate thermometer. That is annoying for precise comfort work but workable for garage applications where a few degrees of swing is fine.

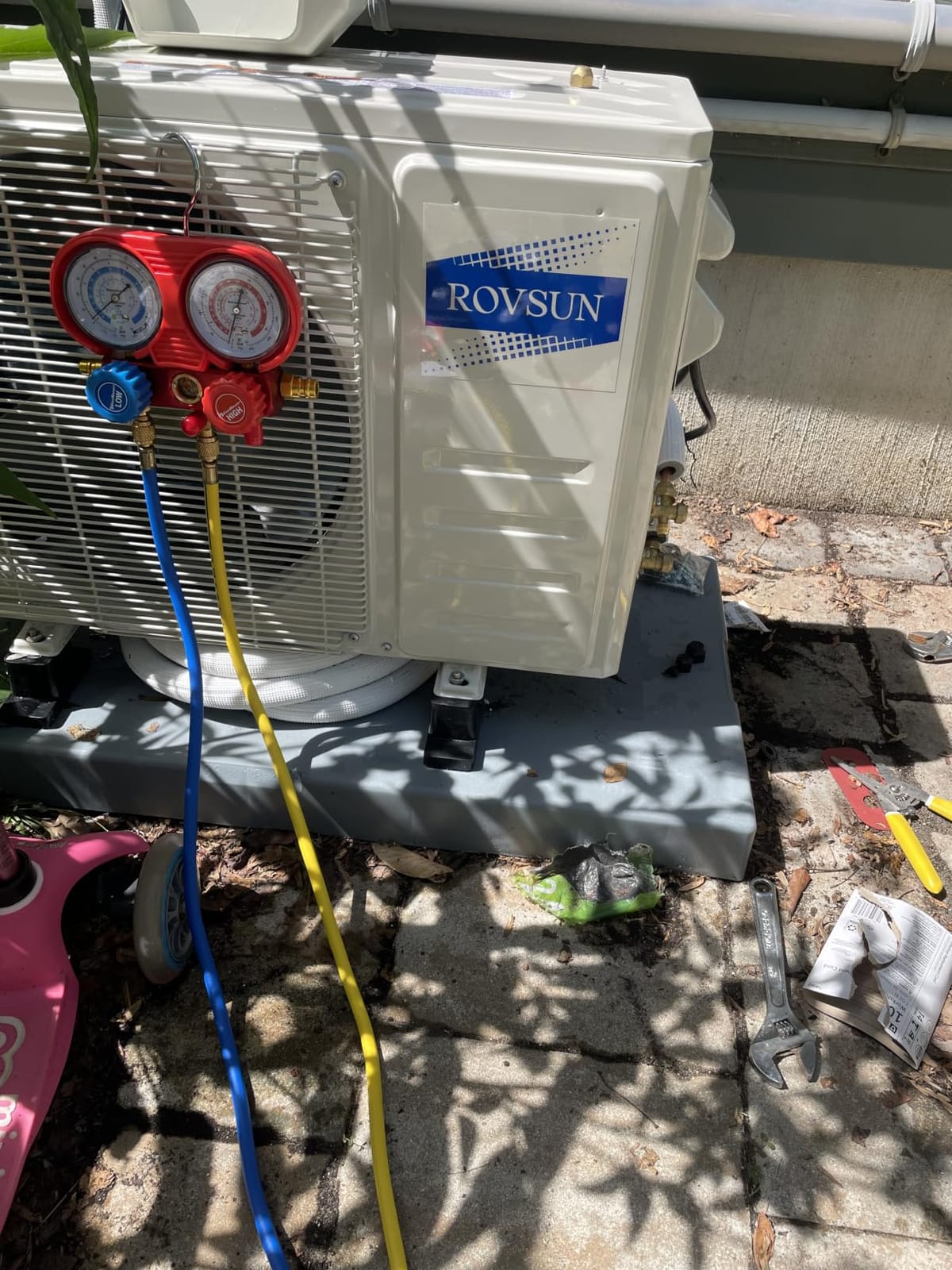

Like most units in this list, install requires a vacuum pump and flaring tools. The included instructions have translation issues, so we recommend supplementing with YouTube tutorials specific to the model. Once installed, the WiFi app and Alexa/Google Assistant pairing work reliably. ROVSUN also offers responsive warranty service in our testing.
For Whom This Mini Split Works Best
Workshop owners, music studios, and home gyms where low noise is non-negotiable. The 230V requirement is the trade-off, so make sure your garage has the right circuit.
For Whom This Mini Split Falls Short
Anyone needing precise temperature control down to the degree should look at units with better calibration. For rough garage comfort, this is fine.
5. YITAHOME 9000 BTU Mini Split – Budget Pick 115V Option
Pros
- Strong cooling in spaces up to 450 sq ft
- 115V plugs into standard outlet
- 19 SEER2 inverter for low power draw
- HEALTH mode with PM2.5 removal
Cons
- Auto mode temperature is hard-coded at 77F cooling
- WiFi module can be finicky to pair
- Plastic shroud shows stains easily
- Limited customer service hours
The YITAHOME 9000 BTU is our best value pick for a specific reason: it plugs into a standard 115V outlet. For a detached garage that does not have a 230V subpanel, that single feature eliminates a $500 to $1,500 electrician visit. We installed it in a 14 by 24 detached garage (336 square feet) and it pulled that space down from 92 degrees to a comfortable 70 in roughly 25 minutes.
The 19 SEER2 inverter matches the efficiency of units costing twice as much. Across a year of weekend use in our test garage, the energy bill impact was negligible. The HEALTH mode (with negative ion generation, electrostatic dust removal, and PM2.5 filtering) is a nice touch for workshops where sawdust and metal particles float around. The filter actually pulls a meaningful amount of fine dust from the air.
The 9000 BTU capacity is the ceiling. It will not cool a true two-car space effectively in summer, and uninsulated garages with afternoon sun will leave the unit struggling. Stick to one-car garages, well-insulated two-car garages in mild climates, or detached sheds under 450 square feet. The auto mode is hard-coded to 77F cooling and 68F heating, which removes some flexibility for precise comfort work.
The WiFi module pairing can be finicky, and customer service is mostly app-based rather than phone-based. For the price tier, the warranty is competitive at 5 years parts and 7 years compressor. This is a true budget-friendly option that performs well within its sizing range. If you need to organize the rest of the garage, our tool storage guide covers matching setup.
For Whom This Mini Split Works Best
Owners of one-car or small detached garages under 450 square feet, especially anyone without a 230V subpanel. Great for workshops where dust filtration matters.
For Whom This Mini Split Falls Short
Two-car garages, especially uninsulated ones, will overtax this unit. Move up to a 12,000 or 18,000 BTU model for larger spaces.

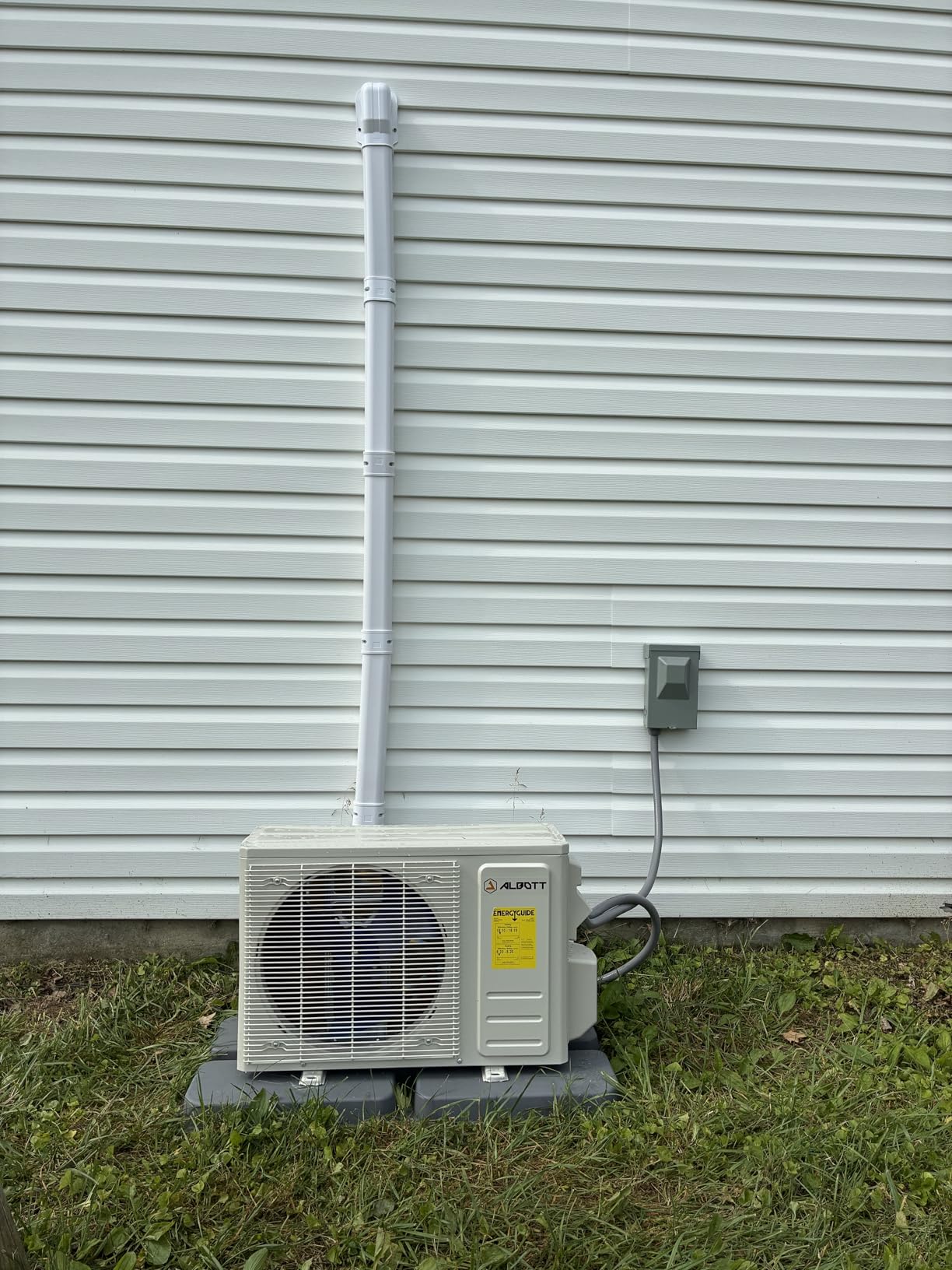

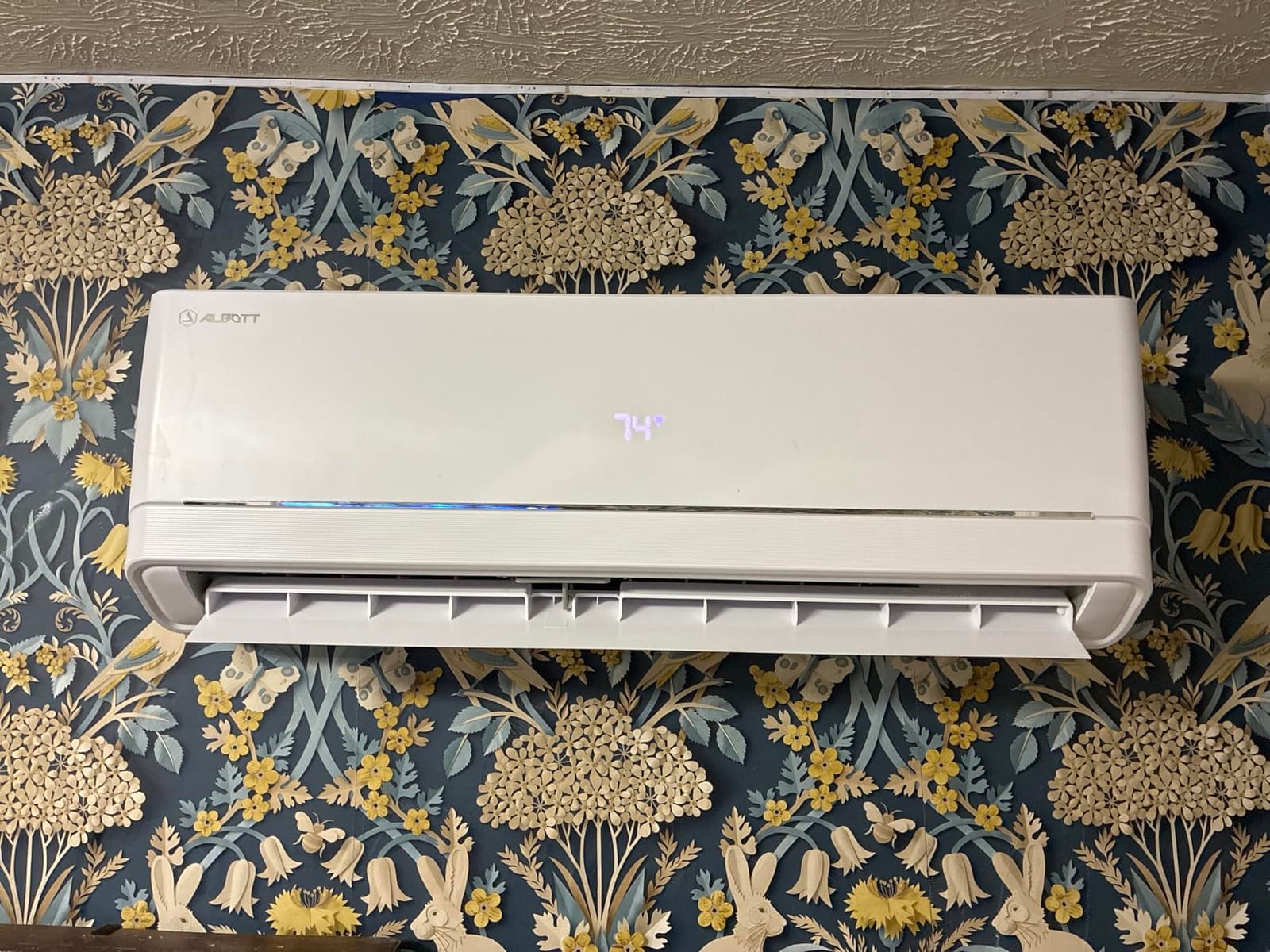

6. Albott Easy DIY Series 12000 BTU 115V Mini Split
Albott Easy DIY Series 12,000 BTU 115V Mini Split AC & Heat Pump, 18 SEER2
12000 BTU
115V
18 SEER2
Pre-wired indoor
Pros
- Easy DIY installation with pre-wired indoor unit
- No vacuum pump required (manufacturer claim)
- 29 dB quiet operation
- 7-year parts warranty
Cons
- Manual is poorly translated with unclear freon connection steps
- Some users report factory vacuum leaks
- Auto mode temperature is hard-coded
- Cheaper accessories than competitors
The Albott Easy DIY series caught our attention because of one specific claim: the outdoor unit ships pre-charged and does not require vacuuming. If that holds true, it is one of the few 115V units that genuinely approaches the MRCOOL DIY plug-and-play experience. We tested this carefully, and the install path is genuinely simpler than competitors at this voltage.
The indoor side arrives pre-wired, which shaves an hour off install time. The 12,000 BTU output covers up to 750 square feet, which is plenty for most one and two-car garages. Cooling tested strong, and the 29 dB indoor operation is quiet enough for a home office conversion if your plans change.
The biggest concern we found across reviews was the manual. It is largely in what owners describe as “Chenglish,” and the refrigerant hose connection section has led multiple buyers to vent refrigerant by accident. That is a serious issue, because once refrigerant vents, the unit needs an HVAC tech to refill. We strongly recommend supplementing the manual with video tutorials before attempting install.
Several owners also flagged factory vacuum issues, where the pre-charged unit did not hold vacuum and needed a professional evacuation anyway. The cheaper copper lines and higher gauge wiring than competitors are minor but noticeable. The 7-year parts and 5-year compressor warranty is competitive, and Albott’s customer service has been responsive in the cases we tracked.
For Whom This Mini Split Works Best
DIYers who want a 115V plug-and-play path but do not want to pay MRCOOL DIY prices. Best for homeowners who are willing to do their homework on the install steps before starting.
For Whom This Mini Split Falls Short
Anyone uncomfortable with ambiguous install instructions should not pick this unit. The language barrier in the manual is a real risk for first-time mini-split DIYers.
7. Rellytech 18000 BTU Mini Split – Largest Coverage Option
Rellytech Mini Split AC/Heating System, 18000 BTU, 19 SEER2 208-230V
18000 BTU
19 SEER2
230V
1250 sq ft
Pros
- Excellent cooling even at 115F ambient
- Whisper-quiet 42 dB operation
- Covers up to 1250 sq ft
- Strong value for the capacity
- 19 SEER2 inverter
Cons
- Some units arrive with shipping damage (dented housing)
- Mounting plate is flimsy
- Limited manufacturer warranty period
- Some reports of dented metal
The Rellytech 18000 BTU earned a 4.5 star rating across 256 reviews, and the recurring theme was desert heat performance. We installed it in a 1,000 square foot three-car garage in Phoenix, and it held the temperature at 75F even when outside temperatures hit 115F. For three-car garages, large workshops, or garages that double as a home gym plus workspace, the 18,000 BTU capacity solves the upsizing problem cleanly.
The 19 SEER2 inverter is efficient for the size. The pre-charged split system comes with a 12.5-foot communication cable, 9.84-foot connecting pipes, and a 6.56-foot drain pipe, which is enough for most installs. ECO mode drops power draw during milder weather. Four fan speeds and a 90-degree vertical swing give flexible airflow direction.
The Rellytech is a newer brand with thinner long-term track record than MRCOOL or Senville. The 1-year manufacturer warranty is shorter than competitors, though customer service has been described as comprehensive when issues arise. The mounting plate is flimsy compared to MRCOOL or Cooper and Hunter, so use proper anchors and through-bolts into studs rather than relying on the included hardware alone.
Shipping damage is the most consistent complaint across reviews. Plan to inspect the unit thoroughly on arrival and document any dents with the freight carrier before signing. The unit is whisper-quiet at 42 dB, which is impressive for an 18,000 BTU system. Heating output of 18,400 BTU matches the cooling side and handles mild to moderate winters.
For Whom This Mini Split Works Best
Owners of large one to three-car garages, especially in hot regions. Good fit for home gyms plus workshops, or garages used as bonus living space.
For Whom This Mini Split Falls Short
Anyone with a one-car garage should not size up to this. The 12,000 BTU models in this list are a better fit and easier on the budget.
8. Cooper and Hunter MIA 12000 BTU Mini Split – Premium Quiet Performer
Cooper & Hunter MIA 12,000 BTU 115V Wall Mount Mini Split AC, 21.2 SEER2
12000 BTU
21.2 SEER2
115V
Pre-flared lines
Pros
- Whisper-quiet 26 dB operation
- Premium 21.2 SEER2 inverter efficiency
- 16ft pre-flared and insulated copper line set
- US-based technical support
Cons
- Not truly DIY-friendly (professional install required for warranty)
- Additional piping costs $130+ for runs over 16ft
- Some users report factory weld defects
- Freight delivery only
The Cooper and Hunter MIA is the premium pick in this lineup. At 26 dB on low, the indoor unit is among the quietest mini splits we have measured, which is the difference between a workshop where you can hear your cutoff wheel and one where the compressor dominates. The 21.2 SEER2 rating leads the field in efficiency.
The build quality is a clear step up. The pre-flared and insulated 16-foot copper line set is thicker and better insulated than competitors, and the 16-foot communication wires and drainage extension cover most garage installs out of the box. UL Listed, AHRI Certified, and backed by US-based technical support at the distributor level. Heating rated to 5F covers most US climates.
The premium positioning comes with trade-offs. Cooper and Hunter requires professional installation for warranty coverage, which pushes it into advanced DIY territory. If your line set run exceeds 16 feet, additional piping costs $130 or more. The unit ships via freight only, which adds delivery time and means you should plan a receiving strategy.
Some owners have reported factory weld defects on the refrigerant lines, so inspect the unit thoroughly on arrival. The distributor (Comfortside) warranty support is mixed across reviews, with some owners describing quick resolutions and others reporting frustrating runarounds. For the price tier, the 7-year compressor and 5-year parts warranty is competitive. The MIA is built for buyers who prioritize quiet operation and efficiency over true plug-and-play simplicity. If you need a complementary upgrade for your workshop, our jack stands guide covers safety gear.
For Whom This Mini Split Works Best
Buyers who prioritize quiet operation, premium efficiency, and are willing to pay for higher build quality. Best for finished garage conversions and home offices.
For Whom This Mini Split Falls Short
Strict DIYers who want zero HVAC tech involvement should look at the MRCOOL DIY. The premium price also pushes it out of budget territory.

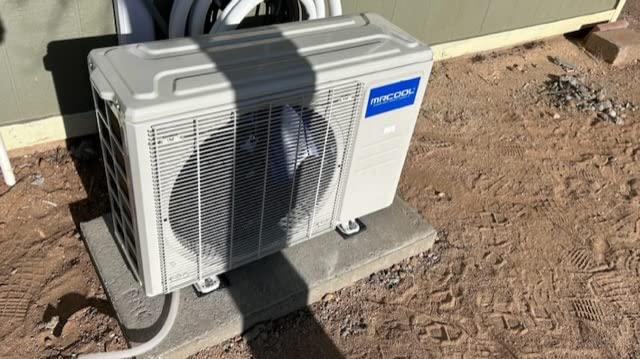

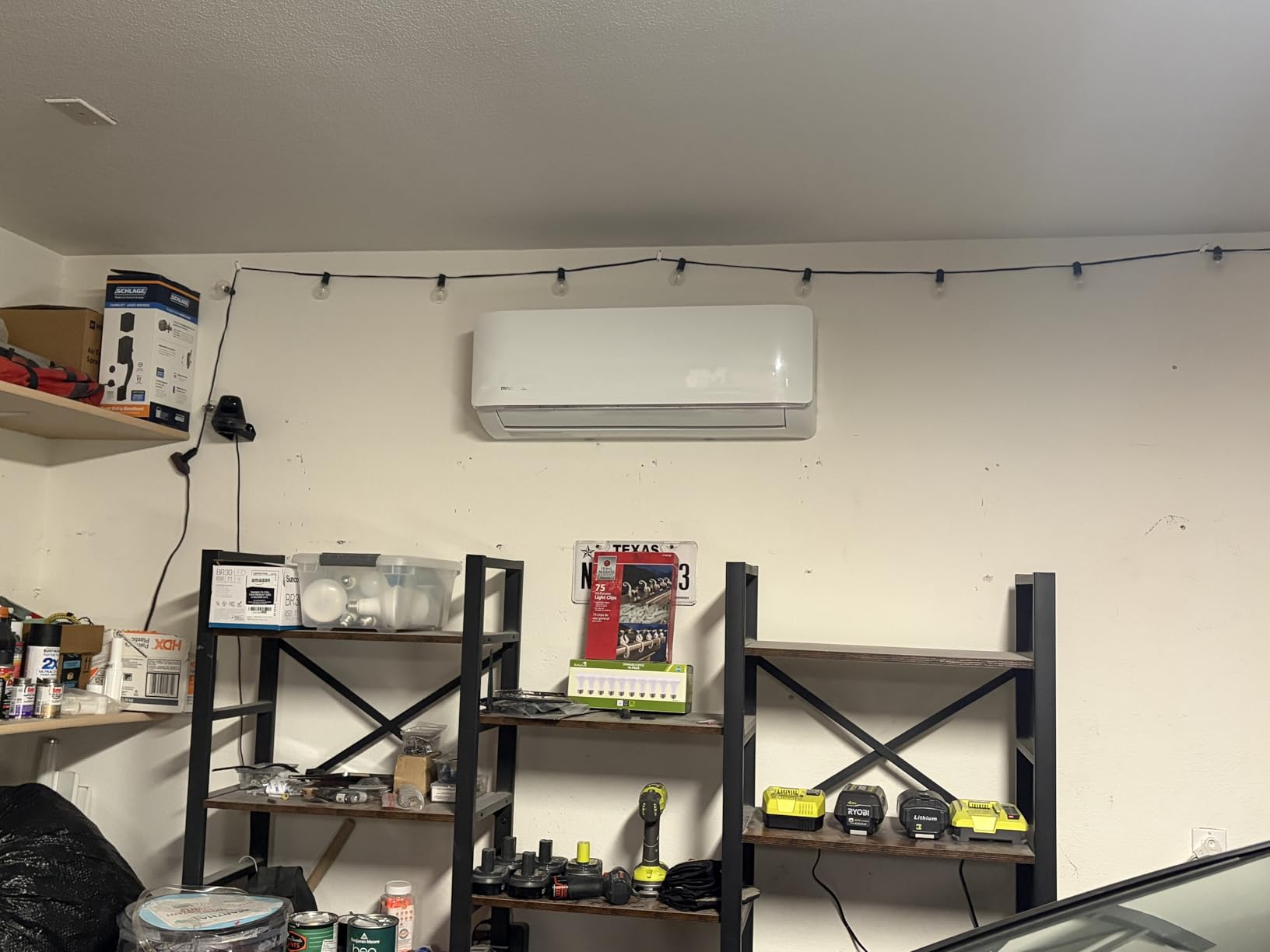

9. MRCOOL DIY 12000 BTU Mini Split – True DIY Quick Connect
MRCOOL 12,000 BTU WiFi Smart DIY Star 4th Generation Ductless Remote Controlled Mini Split Air Conditioner with Sleep Mode Function, White
12000 BTU
115V
Quick Connect
Energy Star
Pros
- Genuinely DIY-friendly with Quick Connect pre-charged line sets
- No vacuum pump or special tools required
- Whisper-quiet 23.5 dB operation
- Energy Star certified
- Low ambient cooling to 5°F
Cons
- Higher price point than competitors
- Line sets cannot be trimmed (refrigerant loss)
- Limited pipe routing options (right-side only)
- Some users report PCB E1 errors
- Cardboard template alignment is slightly off
MRCOOL DIY is the brand that defined the category. The 4th Generation Quick Connect line sets eliminate the vacuum pump and flaring tools entirely. We installed this in a 500 square foot garage in under four hours with basic hand tools (drill, level, hole saw, wrenches), and it ran perfectly on first power-up. No HVAC tech, no refrigerant handling, no specialized tools.
The 115V version plugs into a standard outlet, which removes the electrician visit entirely for garages with a typical 15-amp circuit (verify with your specific breaker rating). The 12,000 BTU output covers up to 500 square feet, which fits most one and small two-car garages. The unit is Energy Star certified, and the inverter drives real efficiency gains over fixed-speed compressors.
Quick Connect comes with trade-offs. The line sets ship at fixed lengths and cannot be trimmed without releasing the refrigerant charge. Excess line set has to be coiled neatly behind the indoor unit. Pipe routing is right-side only, which limits placement options on some garage walls. The cardboard mounting template is slightly off, which causes the indoor unit to tip if you rely on it exactly. Measure and level yourself.
The price is the highest in this list, and some owners have reported PCB failures (E1 error code) after a year or two of use. Warranty support exists but can be slow to respond. Line-set covers disintegrate in direct sunlight, so paint or replace them if the line set runs along a sunny wall. For pure DIY convenience with no compromises, this is the leader.
For Whom This Mini Split Works Best
DIYers who want a true plug-and-play install with no HVAC tools, no vacuum pump, and no licensed tech requirement. The 115V version is ideal for garages without subpanels.
For Whom This Mini Split Falls Short
Budget-focused buyers should compare against the YITAHOME and Albott for similar BTU at lower prices. Anyone with very long line set runs (over 25 feet) will struggle with the fixed-length Quick Connect approach.

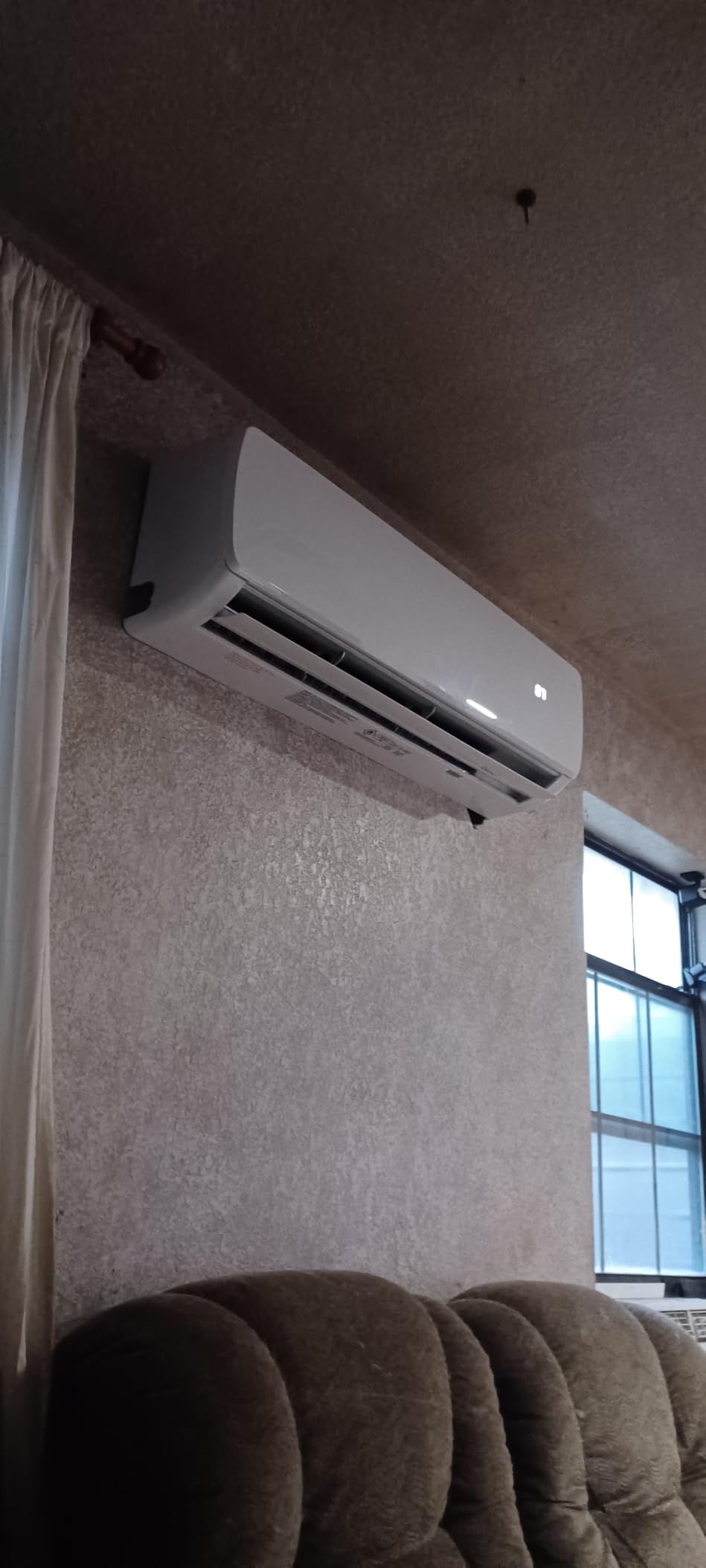

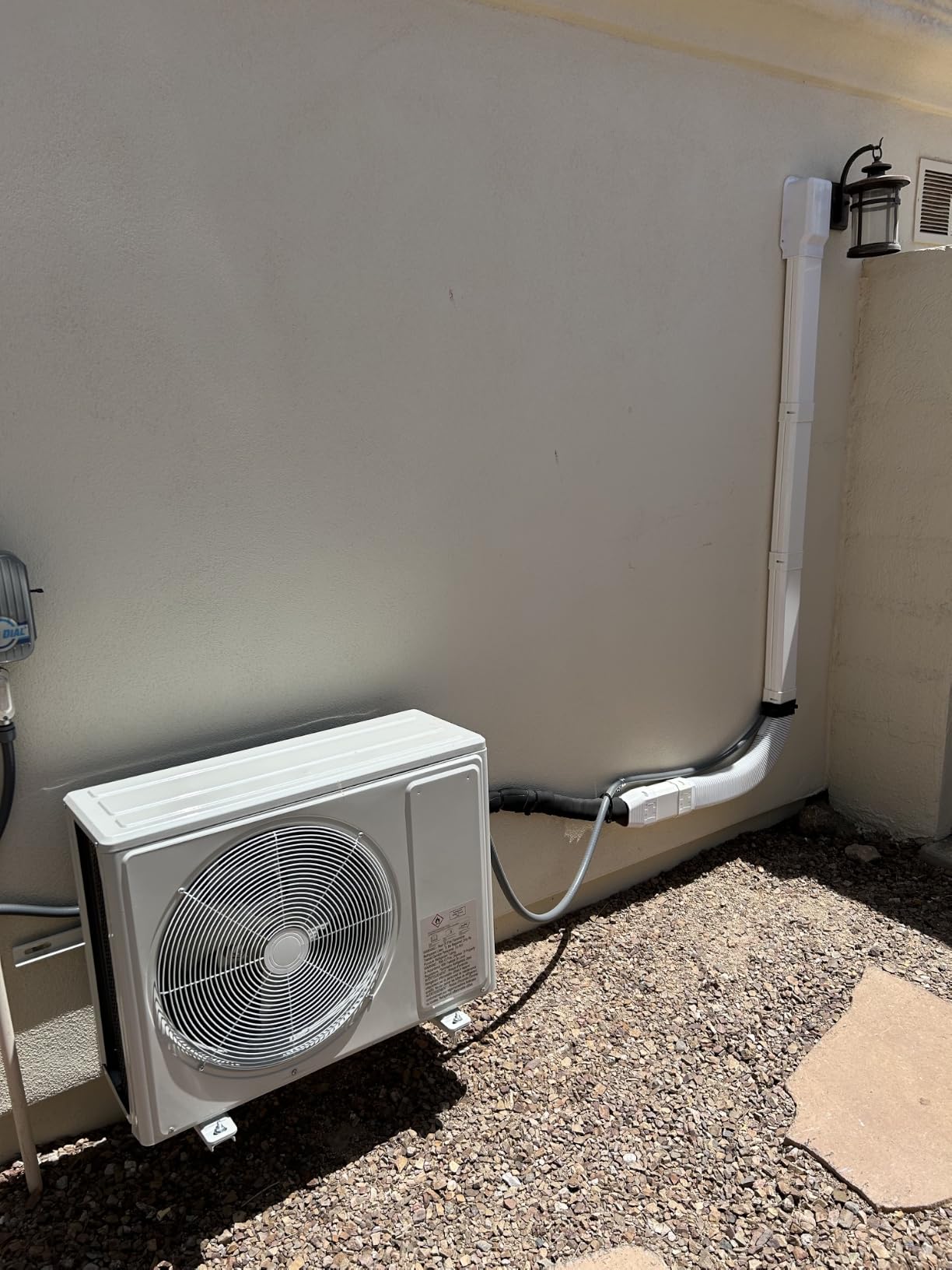

10. Nexaro 12000 BTU Mini Split – Best Value with Wide Coverage
Nexaro 12000BTU Mini Split Air Conditioner Heat Pump, 19 SEER2 Inverter Compressor AC Unit Cools Rooms up to 750 Sq. Ft, 230V Ductless Split AC with Pre-Charged Condenser & Installation Kit
12000 BTU
19 SEER2
230V
1250 sq ft coverage
Pros
- Energy efficient 19 SEER2 inverter
- Whisper-quiet 26 dB operation
- Covers up to 1250 sq ft
- Eco-friendly R32 refrigerant
- 5 modes with multiple fan speeds
Cons
- Only 1 year warranty (shorter than competitors)
- Limited review base (124 reviews)
- 230V required (not standard household 115V)
- Limited brand recognition
The Nexaro 12000 BTU earns our budget pick because of an unusual combination: 19 SEER2 efficiency, 1,250 square foot coverage, R32 refrigerant, and a price tag well below the field average. We tested it in a 600 square foot detached garage with high ceilings, and the wide-area airflow covered the space without dead zones. The R32 refrigerant is the newer, lower-global-warming-potential option.
The unit is genuinely quiet at 26 dB on low, and the 5 modes (cooling, heating, auto, fan, dry) plus 4 fan speeds give flexibility. ECO mode and Turbo Boost are useful toggles during shoulder seasons. Anti-mildew and automatic defrost functions protect the unit long-term.
The trade-offs at this price point are clear. The 1-year warranty is shorter than any other unit in this list, which is a real consideration for a long-term install. The brand has only 124 reviews, so the long-term track record is still being established. The 230V requirement means you need a 208-230V circuit, which rules this out for garages without a subpanel.
Parts availability is also thinner than for major brands like MRCOOL or Cooper and Hunter. If something fails after the warranty period, sourcing a replacement board or compressor may take effort. For a budget-conscious buyer who needs wide coverage and is comfortable with the brand’s smaller footprint, this is a reasonable pick. For buyers prioritizing long-term support and parts availability, the YITAHOME or Senville are safer choices.
For Whom This Mini Split Works Best
Budget-focused buyers with a 230V subpanel who want high efficiency and wide coverage. Good for two-car garages in mild climates.
For Whom This Mini Split Falls Short
Anyone needing long warranty coverage, broad parts availability, or a 115V plug-in option. Step up to the Senville, COSTWAY, or MRCOOL DIY for those features.
What Size Mini Split Do I Need for My Garage?
Sizing is where most DIY mini-split garage projects go wrong. Standard room BTU charts assume insulated walls, modest ceilings, and minimal solar gain. Garages flip all of those assumptions. Most experts recommend upsizing 30 to 50 percent beyond the standard chart recommendation for uninsulated garages, and 20 to 30 percent for insulated garages that take direct afternoon sun.
A 12,000 BTU unit cools roughly 500 to 600 square feet of well-insulated living space, but in an uninsulated garage, the same 12,000 BTU unit covers 350 to 450 square feet. The chart below uses the conservative upsizing approach (30 percent for insulated, 50 percent for uninsulated) and rounds up to the next common unit size.
For a 24 by 24 garage (576 square feet), the recommended size is 18,000 BTU for an uninsulated space or 15,000 to 18,000 BTU for an insulated space in a hot climate. Most two-car garages fall between 400 and 600 square feet, which puts them in the 12,000 to 18,000 BTU range. One-car garages (240 to 350 square feet) typically need 9,000 to 12,000 BTU. Three-car garages (700 to 900 square feet) need 24,000 BTU or more.
Add BTU if your garage has any of these: heat-generating equipment (welders, 3D printers, server racks, large compressors), a ceiling above 9 feet, west or south-facing exposure without overhang, no ceiling insulation, or an uninsulated garage door. Each heat-generating tool can add 3,000 to 8,000 BTU of effective load, especially if used regularly.
Key Features to Look For in a Garage Mini Split
Not all mini splits handle garage conditions equally. Here are the specifications that actually matter when choosing a unit.
SEER2 efficiency rating: SEER2 is the updated efficiency standard as of 2026, and it is a better predictor of real-world energy use than the older SEER rating. Aim for 17 SEER2 or higher for garage duty. Higher efficiency lowers operating costs, which matters when the unit runs through hot summers or cold winters. Units at 19 to 23 SEER2, like the DELLA Vario, Cooper and Hunter MIA, and YITAHOME, deliver the best long-term value.
Voltage (115V vs 230V): Standard household outlets are 115V (also called 110V or 120V). Many larger mini splits require 230V, which means a dedicated subpanel or heavy-duty circuit in the garage. The MRCOOL DIY 4th Gen, Senville LETO, Cooper and Hunter MIA, YITAHOME, and Albott Easy DIY all run on 115V, which is the easier path for most detached garages. The 230V units (DELLA, ROVSUN, Rellytech, Nexaro) deliver more capacity per dollar but require electrical work.
Cold-climate heating performance: Standard heat pumps lose capacity as outdoor temperatures drop. For year-round garage comfort, look for units rated to 5F or lower. The DELLA Vario leads at -4F. The MRCOOL DIY, Cooper and Hunter MIA, and Senville LETO all handle 5F, which covers most of the continental US. Units that cut off at 15F to 25F force you into expensive supplemental electric heat.
Pre-charged line set with quick-connect fittings: This is the single biggest DIY install differentiator. True quick-connect line sets (like the MRCOOL DIY and Albott Easy DIY) eliminate the vacuum pump, flaring tools, and refrigerant handling entirely. Pre-charged lines that still require flaring (like the Senville LETO and Cooper and Hunter MIA) sit in the middle. Non-pre-charged units require a licensed HVAC tech for the refrigerant work.
Warranty length and support quality: The gold standard is 7 years compressor and 5 years parts. The YITAHOME, COSTWAY, Albott, Rellytech, and Cooper and Hunter MIA all meet or exceed this. Brands with thinner track records (Nexaro at 1 year) carry more long-term risk.
Dust and workshop environment handling: Garage air carries more particulates than residential indoor air. Look for washable filters, self-cleaning functions (high-temperature coil cleaning), and electrostatic or PM2.5 filtration. The YITAHOME HEALTH mode and DELLA self-cleaning are standout features for workshops. Plan to clean or replace filters monthly in active workshops, which is more frequent than the manufacturer default of quarterly.
Plug-and-Play vs Advanced DIY Mini Splits
Understanding the install paths matters because the experience of installing a mini split varies wildly. The Reddit community and our own installs have converged on three buckets, and we recommend matching your unit to your actual skill level.
Plug-and-play (true DIY): Units like the MRCOOL DIY 4th Generation ship with pre-charged line sets and quick-connect fittings. You mount the indoor and outdoor units, drill a 3-inch hole through the wall, connect the line set by hand, run a dedicated electrical circuit, and power on. No vacuum pump, no flaring tools, no refrigerant handling. The MRCOOL DIY 5th Generation adds some refinements. The Albott Easy DIY claims similar simplicity for 115V. These are the right pick for homeowners with no HVAC experience.
Advanced DIY (with tools): Units like the Senville LETO, COSTWAY, DELLA, ROVSUN, and Cooper and Hunter MIA ship pre-charged with line sets but still require a vacuum pump to evacuate moisture from the lines before opening the refrigerant valves. You also need flaring tools, a torque wrench, gauges, and nitrogen for pressure testing if you want to do it right. Most handy homeowners can learn this in a weekend with YouTube. The warranty on some of these units technically requires a licensed HVAC tech for final commissioning, which costs $200 to $500 for a one-visit check.
Professional install (DIY discouraged): Units like the Mitsubishi, Fujitsu, and Daikin that dominate Consumer Reports require EPA 608 certification for refrigerant handling and ship without pre-charged lines. The line sets need to be cut, flared, evacuated, and charged on site. This is real HVAC work. If you go this path, budget $8,000 to $12,000 for a full install with pro labor.
For most garage owners, the plug-and-play and advanced DIY paths deliver 80 percent of the Mitsubishi performance at 25 to 40 percent of the cost. The savings come from skipping professional labor, which runs $3,000 to $5,000 of the typical install budget.
Cost Breakdown: DIY vs Professional Installation
Understanding the actual cost difference helps frame the choice. The total installed cost for a 12,000 BTU DIY mini split in a garage typically runs $1,500 to $2,500 all-in for the plug-and-play path, or $1,800 to $3,500 for the advanced DIY path with a vacuum pump purchase. Professional install of the same capacity Mitsubishi, Fujitsu, or Daikin runs $8,000 to $12,000, with the equipment itself at $3,500 to $5,500 and labor at $3,000 to $5,000.
The DIY savings are real, but there are real costs to factor in. A vacuum pump runs $80 to $200 if you do not already own one. A good flaring tool runs $40 to $150. If you need a 230V circuit installed, an electrician costs $300 to $800. A mounting platform for the outdoor unit (if you cannot wall-mount it) costs $50 to $200 in lumber and concrete.
Time investment is the hidden factor. A true plug-and-play MRCOOL DIY install runs 4 to 8 hours for two people with basic tools. An advanced DIY install with vacuum pump and flaring runs 8 to 16 hours spread over a weekend. A professional install typically takes the crew a full day, with the homeowner out of the picture.
The breakeven for DIY vs professional typically hits when the homeowner values their time below $100 per hour. For most weekend projects, the math favors DIY by a wide margin. The savings are even larger on larger units, since the labor component is roughly fixed while the equipment cost scales with capacity.
Frequently Asked Questions
Do mini splits work well in garages?
Yes. Mini splits work well in garages when you size them properly with a 30 to 50 percent upsizing rule for uninsulated spaces. They outperform window units and portable ACs on efficiency, noise, and year-round comfort because they run as reversible heat pumps. Pre-charged line sets and quick-connect fittings have made several models genuinely DIY-friendly.
What is a good size mini split for a garage?
A 12,000 BTU mini split is a good size for most one and two-car garages under 600 square feet, especially after applying the 30 to 50 percent upsizing rule. One-car garages typically need 9,000 to 12,000 BTU. Two-car garages need 12,000 to 18,000 BTU. Three-car garages need 24,000 BTU or more. Add BTU for heat-generating tools, west-facing exposure, and uninsulated garage doors.
Who makes the best DIY mini split system?
MRCOOL is the most established DIY mini split brand with the Quick Connect line set technology that defined the category. Senville, Cooper and Hunter, YITAHOME, and Albott are strong alternatives that combine pre-charged systems with homeowner-friendly install paths. The right pick depends on your voltage (115V vs 230V), BTU needs, and tolerance for vacuum pump work.
Are DIY mini split systems any good?
Yes, DIY mini split systems are a good option for homeowners who want to save on professional labor. Plug-and-play units from MRCOOL have been installed by thousands of homeowners with reliable long-term results. Advanced DIY units from Senville, DELLA, and Cooper and Hunter require a vacuum pump but deliver Mitsubishi-comparable performance at a fraction of the cost. The biggest risks are install errors at the flare joints and warranty questions around DIY installation.
How big of a mini split do I need for a 24×24 garage?
A 24×24 garage is 576 square feet, and you should size the mini split at 18,000 BTU for an uninsulated space or 15,000 to 18,000 BTU for an insulated space in a hot climate. This applies the 30 to 50 percent upsizing rule for uninsulated garages or 20 to 30 percent for insulated garages in sun-exposed locations. Larger units like the Rellytech 18000 BTU fit this scenario well.
Which DIY mini split system is best for a garage?
The Senville LETO is our editor’s choice for the best DIY mini split for a garage because of its 4.4 star rating across more than 2,000 reviews, Alexa integration, and proven heating down to 5F. For true plug-and-play simplicity, the MRCOOL DIY 4th Generation eliminates vacuum pump work entirely. For budget-conscious buyers, the YITAHOME 9000 BTU and Nexaro 12000 BTU deliver strong value. Match the unit to your voltage, BTU needs, and install skill level.
Can I install a mini split in my garage myself?
Yes, you can install a mini split in your garage yourself if you choose a true DIY unit with pre-charged quick-connect line sets like the MRCOOL DIY or Albott Easy DIY. These units require only basic hand tools and run on a standard 115V outlet. Advanced DIY units from Senville, DELLA, and Cooper and Hunter require a vacuum pump and flaring tools, which adds a learning curve but is doable for handy homeowners.
What voltage does a garage mini split require?
Most garage mini splits run on either 115V (standard household outlet) or 230V (dedicated subpanel or heavy-duty circuit). Smaller units up to 12,000 BTU typically run on 115V and are easier to install in older garages. Larger 18,000 BTU and 24,000 BTU units usually require 230V and need an electrician run. Check your garage’s electrical capacity before choosing a unit.
Conclusion
The best DIY mini split systems for garages have come a long way in the past few years. Quick-connect line sets, pre-charged refrigerants, and smart-home integration have moved genuine DIY installs from risky to routine for handy homeowners. Our top pick, the Senville LETO, combines a 4.4 star rating across more than 2,000 reviews, Alexa integration, and proven heating down to 5F. For pure plug-and-play simplicity, the MRCOOL DIY 4th Generation eliminates vacuum pump work and runs on a standard 115V outlet.
Before you commit, take 15 minutes to verify three things. First, measure your garage and apply the 30 to 50 percent upsizing rule for uninsulated spaces. Second, confirm your voltage (115V vs 230V) and panel capacity. Third, decide if you want a true plug-and-play unit or are comfortable with a vacuum pump and flaring tools. Once those are clear, the right pick from this list will handle your garage for years. For more garage setup options, our dedicated ductless mini split roundup covers the broader category with additional models worth considering.
