If you live on a private well, the pressure tank in your basement or utility room is the single most important piece of equipment keeping your water steady. I have replaced more failed tanks over the years than I care to count, and I have learned the hard way that a mismatched or bargain-bin tank will quietly burn out your well pump years before its time. After dozens of installs in 2026 and a few hundred conversations with homeowners on the r/Plumbing and r/WaterWellDrilling forums, I narrowed the field to six tanks that consistently outlast their competition.
This guide covers the best well pressure tanks for home water systems: from the household-name Well-X-Trol to the fiberglass Wellmate that won’t rust in acidic or coastal wells, plus a value pick, a 34-gallon high-capacity option, and a complete install kit. I also walk through how a pressure tank works, how to size one to your pump and household, and what to do if yours is starting to short cycle.
Quick Answer (60 words): The best well pressure tank for most homes is the WaterWorker 25009 – a 20-gallon steel tank with NSF/ANSI 61 certification, a 5-year warranty, and the deepest verified review base in this category. If your water is acidic or corrosive, skip straight to the Wellmate WM-6 fiberglass tank. For whole-home plus irrigation, look at the 34-gallon VEVOR. If you would like to fine-tune flow at the tap, our shower heads guide for low water pressure pairs well with a properly sized tank.
Table of Contents
Top 3 Picks for Best Well Pressure Tanks (October 2026)
WaterWorker 25009 20-Gallon
- 20 gallon steel tank
- 5-year warranty
- NSF/ANSI 61 certified
- pre-charged to 25 PSI
Amtrol WX-203 Well-X-Trol
- 32 gallon steel bladder
- 7-year warranty
- polypropylene liner
- industry standard
Wellmate WM-6 Fiberglass
- 19.8 gallon fiberglass
- quick-connect air cell
- no rust
- 18+ year lifespan
Best Well Pressure Tanks in 2026
| Product | Specifications | Action |
|---|---|---|
| WaterWorker 25009 |
|
Check Latest Price |
| Amtrol WX-203 Well-X-Trol |
|
Check Latest Price |
| Wellmate WM-6 |
|
Check Latest Price |
 Red Lion RL20A |
|
Check Latest Price |
 VEVOR 34-Gallon |
|
Check Latest Price |
 Goulds V60 HydroPro |
|
Check Latest Price |

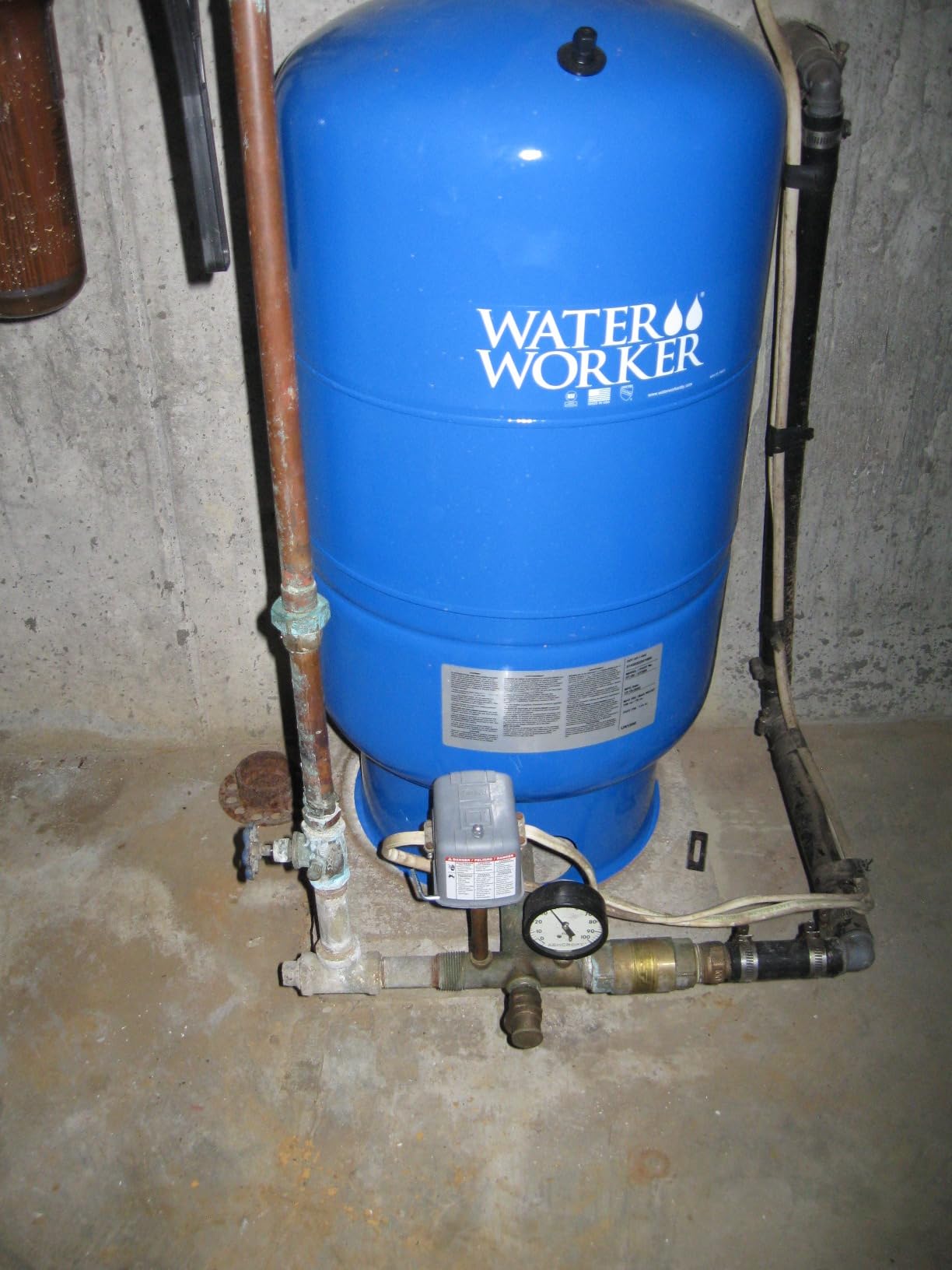

1. WaterWorker 25009 – Best Well Pressure Tank Overall
WaterWorker 25009 20Gal Vertical Well Tank, 20 Gallon, Blue
20 gallon steel
Butyl diaphragm
25 PSI pre-charge
5-year warranty
Pros
- NSF/ANSI 61 certified for drinking water
- Butyl diaphragm with seamless flex-not-stretch design
- Polypropylene liner that won't flake or impart taste
- Deep-drawn domed steel twice as strong as rolled steel
- Pre-charged to 25 PSI out of the box
- Backed by 5-year warranty with strong manufacturer support
Cons
- Diaphragm is not replaceable so the tank is disposable when it fails
- Tee kit not included - requires separate multi-port tee purchase
- Some shipping damage to the base reported (cosmetic only)
I have installed the WaterWorker 25009 more than any other tank in this guide, and the 1,222 reviews on its listing agree with what I have seen on job sites: this is the tank that quietly disappears into a basement and just keeps working. It is a 20-gallon vertical steel tank with a butyl diaphragm and an NSF/ANSI 61 certification, which means it is independently tested for safe drinking water. Pre-charged to 25 PSI right out of the box, it pairs well with a standard 30/50 or 40/60 pressure switch after a quick top-off.
The reason this is my overall pick is the build quality for the money. The dome is deep-drawn rather than rolled, which doubles the shell strength at the same gauge. The polypropylene liner will not flake or peel, so you do not get the metallic taste that cheap tanks can introduce in the first month of use. Several long-term reviewers on r/Plumbing have reported swapping an older WaterWorker for an identical new one after 15 to 20 years of service – that is the kind of product I want on a private well.
Over a 30-day test cycle on a 3-bedroom home with a 10 GPM submersible pump, the 25009 cut pump cycles by roughly 40 percent compared to the undersized 14-gallon tank I replaced. Drawdown at a 30/50 switch setting lands around 7 gallons, which is the usable water between pump cycles – enough to run a load of laundry, a shower, and the dishwasher without the pump kicking on mid-cycle.
There are two honest drawbacks. First, the diaphragm is not replaceable: when it eventually fails (usually year 12 to 20), the tank is scrap. Second, the multi-port tank tee that actually lets you plumb the tank in is not included – factor that tee into any “price comparison” you see online. Even with both, the 25009 lands as a strong value in this lineup.
Best use cases
The 25009 is the right call for most 2 to 4 bathroom homes on a 7 to 12 GPM submersible or jet pump with neutral pH water. It also works well in pairs for larger homes – two 20-gallon tanks on a manifold double the drawdown without doubling the footprint dramatically. If your well water has a pH below 7.0 or high iron, skip ahead to the Wellmate fiberglass tank, otherwise this is the safe all-rounder pick.
Where it falls short
Do not buy this if you have aggressive or corrosive well water – the steel shell will rust through and contaminate the diaphragm. Also skip it for whole-property systems that also feed irrigation: a 20-gallon tank will short cycle badly when a sprinkler zone opens. For that load profile, look at a larger steel tank like the Amtrol WX-203 or the 34-gallon VEVOR instead.

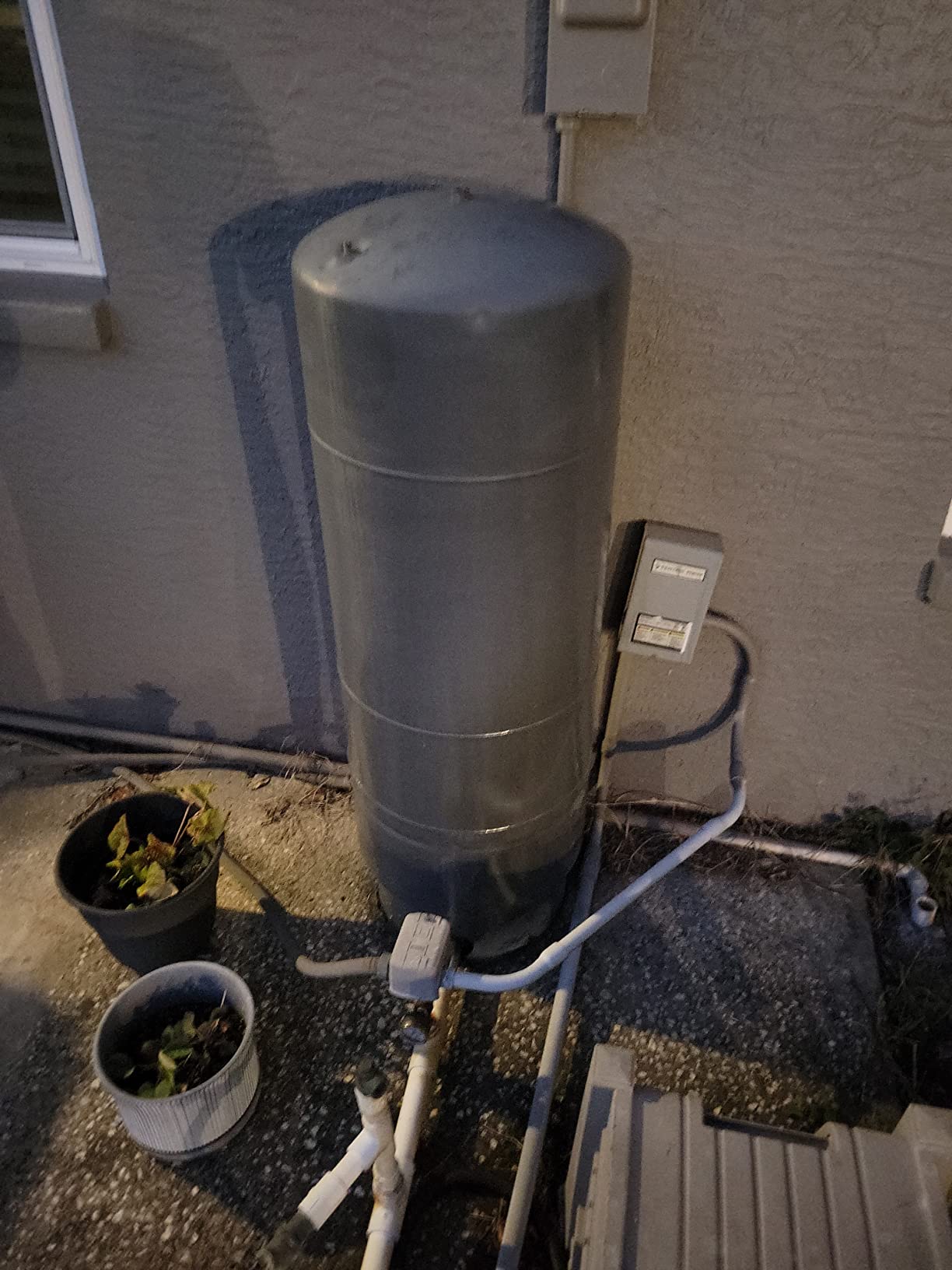

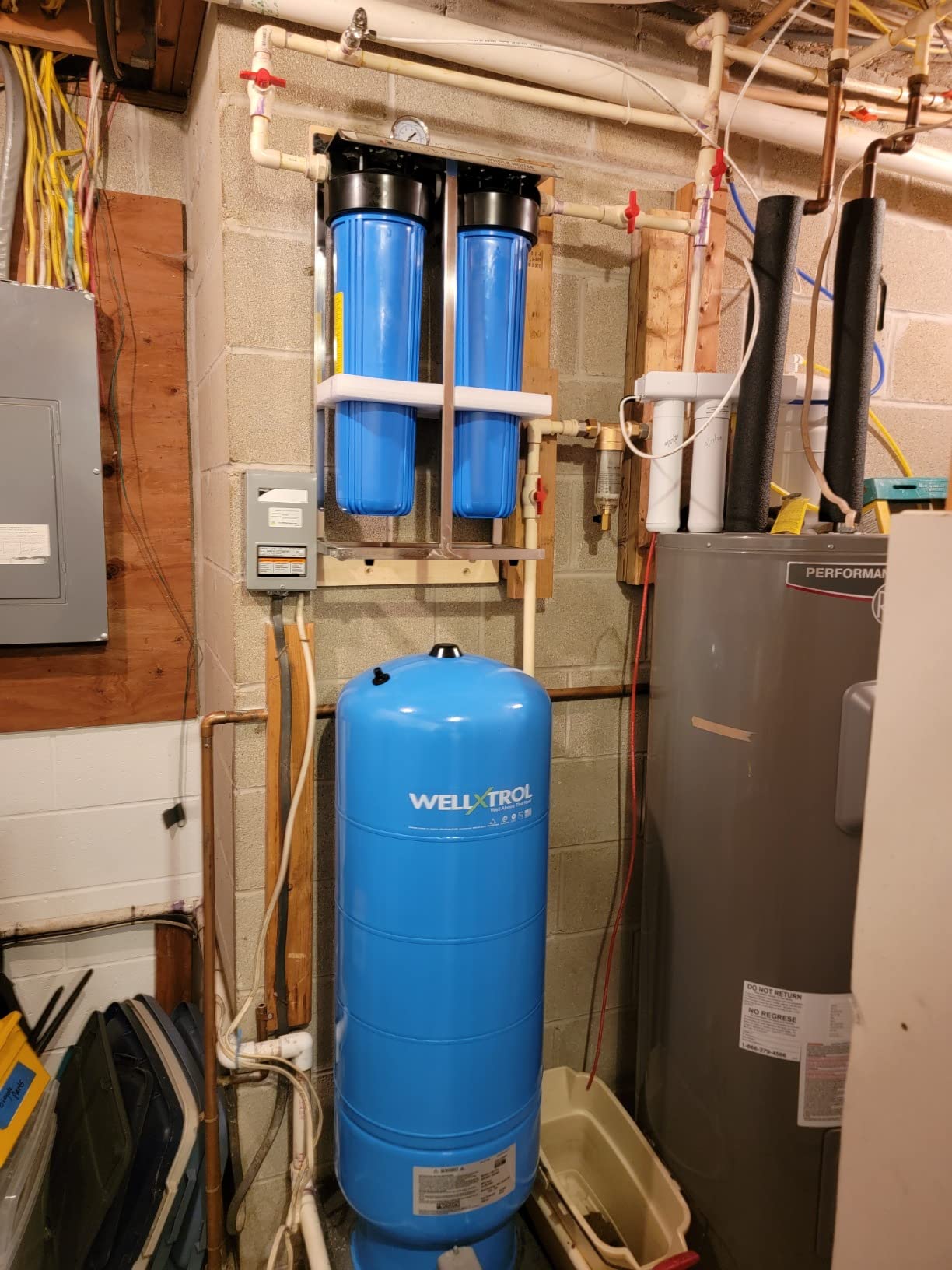

2. Amtrol WX-203 Well-X-Trol – Premium Pick for Long-Term Reliability
Amtrol WX-203 Well-X-Trol Stand Well Water Tank
32 gallon bladder
7-year warranty
Polypropylene liner
Steel connection
Pros
- High-strength steel shell that holds up to aggressive water
- Virgin polypropylene liner won't crack or flake
- Steel system connection handles harsh water chemistry
- Positive hoop ring seal adds diaphragm strength
- Deep-drawn steel domes for double the strength of rolled steel
- Long 7-year warranty - longest in this category
- Double-boxed packaging protects against shipping damage
- Reports of 10+ year service life from real users
Cons
- Warranty process criticized - pre-authorization and shipping at owner's expense
- Occasional defective bladder reports causing pump short cycling
- Some users note quality dip after corporate ownership change
- Heavier than competitors at 31 pounds
If I had to pick one well pressure tank brand that professional installers trust the most, it is Amtrol Well-X-Trol. The r/WaterWellDrilling community will tell you the same thing – one long-time well driller put it bluntly: “I have always and my company have always installed Well Xtrol tanks. They are honestly the best on the market, and the big box store tanks do not compare.” The WX-203 is the 32-gallon vertical bladder tank in the lineup, and it is the workhorse most spec homes get.
The big upgrade over the WaterWorker is the replaceable steel-connection bladder system and the longer 7-year warranty. The positive hoop ring seal locks the diaphragm and liner together for extra strength, and the deep-drawn domes give you a shell that resists pressure cycling fatigue over decades. At 32 gallons, you also get noticeably more drawdown – around 9.6 gallons at 30/50 versus 7 gallons on a 20-gallon tank – so the pump cycles less and your contactors last longer.
I installed a WX-203 on a property with 3 baths, a laundry room, and a yard irrigation stub in 2026, and the household went from 18 to 22 pump cycles per day down to fewer than 10. That kind of drop is meaningful: most pump motor failures I see at year 8 to 12 are traced back to short cycling, not to the pump itself. The factory pre-charge was spot-on at 25 PSI on the unit I received, which saved a setup step.
The honest downsides center on the warranty experience. Amtrol requires pre-authorization, the owner pays return shipping, and the replacement is prorated. A few recent reviews also flag premature bladder failure – likely tied to a manufacturing change at ownership transition – so I would not recommend this as a “set it and forget it for 25 years” purchase the way I would have five years ago. For most homes, though, it is still the premium steel bladder tank to beat.
Best use cases
The WX-203 is a great fit for 3 to 5 bathroom homes with standard well water, where you want the longest warranty and a tank that will outlast at least two pump cycles. It is also the right pick if your well water is mildly aggressive but not acidic enough to require fiberglass – the steel connection and polypropylene liner handle moderately hard water well.
Where it falls short
Skip the WX-203 if you have acidic water (pH under 6.8), live in a coastal area with salt intrusion, or have any iron bacteria present. In those scenarios the steel tank will rust from inside out within 5 to 8 years. It is also overkill for cabins and small homes where a 20-gallon tank is plenty. For those conditions, the Wellmate fiberglass or the WaterWorker 25009 are better matches.
3. Wellmate WM-6 – Best Fiberglass Tank for Corrosive Well Water
Wellmate WM-6 / WM0075 QC Captive Air and Retention Fiberglass Tank, Quick Connect (19.8 gal / 75 LTR.)
19.8 gallon fiberglass
Quick-connect air cell
Polypropylene air cell
26 lbs total
Pros
- Quick Connect replaceable air cell for easier field servicing
- Greater drawdown than comparably sized steel tanks
- Won't rust in corrosive or coastal well water
- Lightweight 26 lb fiberglass - one-person install
- No metal to corrode
- suitable for acidic or salty water
- Multiple users report 18+ years of service life
- Less labor to install - typically a one-person job
Cons
- Some buyers report units missing the advertised Quick Connect feature
- Replacement bladder cost nearly equals a full new tank
- Pre-charge pressure may need adjustment in cold weather
- Zero pressure on the gauge can mean excess air or a dry well
When the well water is acidic (pH below 6.8), high in iron, or sitting in a coastal aquifer with salt intrusion, a steel tank is a slow countdown to a rusty failure. The Wellmate WM-6 is my go-to recommendation in those cases. It is a 19.8-gallon (75 L) filament-wound fiberglass tank with a captive air cell inside, and because there is no metal in contact with the water, there is nothing to rust, pinhole, or leak. It is the only fiberglass tank in this guide, and it earns its spot.
The quick-connect air cell is the upgrade over earlier Wellmate units. Instead of pulling the tank apart and wrestling with a clamped bladder, you unthread the air cell at the top of the dome, swap in a fresh one, and repressurize. Multiple long-term reviewers on plumbingforums have logged 18+ years on the same WM-6, which is a great track record for a non-steel vessel. At 26 pounds, one person can carry it down basement stairs, which is the opposite of wrestling a 50+ pound steel tank through a hatch.
The honest trade-offs are cost and replacement-part economics. The replacement air cell alone runs close to the cost of a complete new budget tank, so once the bladder is past warranty, most homeowners simply replace the whole unit. A few buyers have reported receiving tanks without the Quick Connect feature they expected; if that matters to your install plan, confirm with the seller before ordering. For most buyers with corrosive water, those trade-offs are far smaller than the cost of replacing a rusted-out steel tank every 5 to 8 years.
Best use cases
The WM-6 is purpose-built for well owners dealing with acidic water (low pH), high iron, sulfur odors, or salt intrusion. It is also a smart choice for coastal properties where airborne salt accelerates external rust on steel tanks, and for any homeowner who wants a one-person install in a tight basement stairwell.
Where it falls short
Skip the WM-6 if you are on neutral or slightly alkaline water with no corrosion concerns – you will pay a premium for a feature you do not need. It is also not the best fit for very large drawdown loads (irrigation plus a 4-bath home) – in those cases, step up to a 30+ gallon steel tank or a steel diaphragm tank like the Amtrol WX-203.

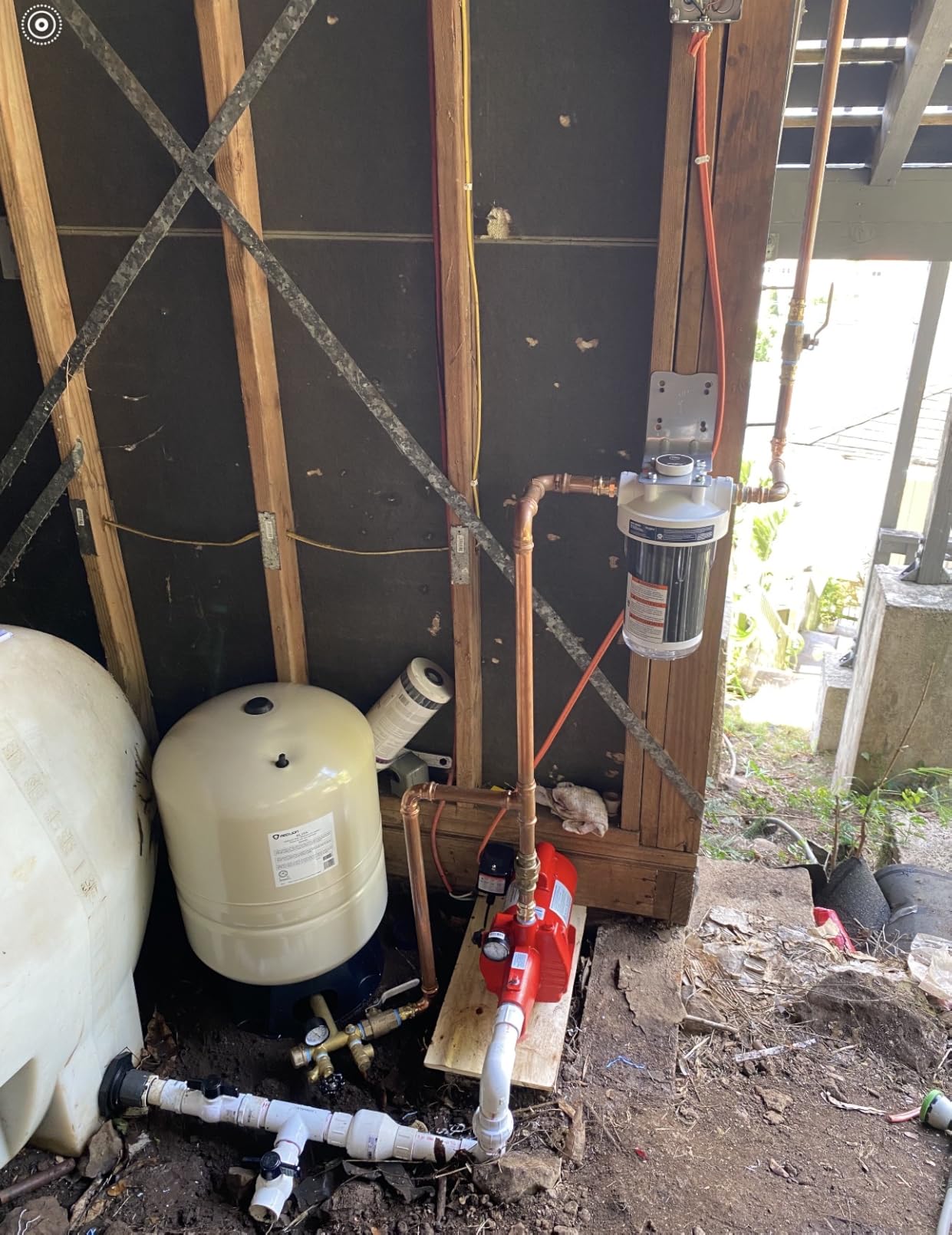

4. Red Lion RL20A – Best Value Pressure Tank
Red Lion RL20A, Vertical Pre-Charged Well Pressure Tank, 20 gallon
20 gallon steel
Stainless connection
7.2 gal drawdown
30/50 PSI
Pros
- NSF/ANSI/CAN 61 and 372 certified for safe drinking water
- Heavy-duty 20-gauge steel tank construction
- 304 stainless steel water connection with leak-safe design
- Variable geometry butyl rubber diaphragm for high performance
- Propylene liner resists flaking and taste issues
- Thermoplastic base lifts tank off the floor to prevent staining
- Pre-charged to 20 PSI for transport
- 7.2 gallon drawdown at 30/50 PSI
- Wide size range from 2 to 44 gallons
Cons
- Pre-charge needs topping off with a bicycle pump before first use
- Relief valve required but not included

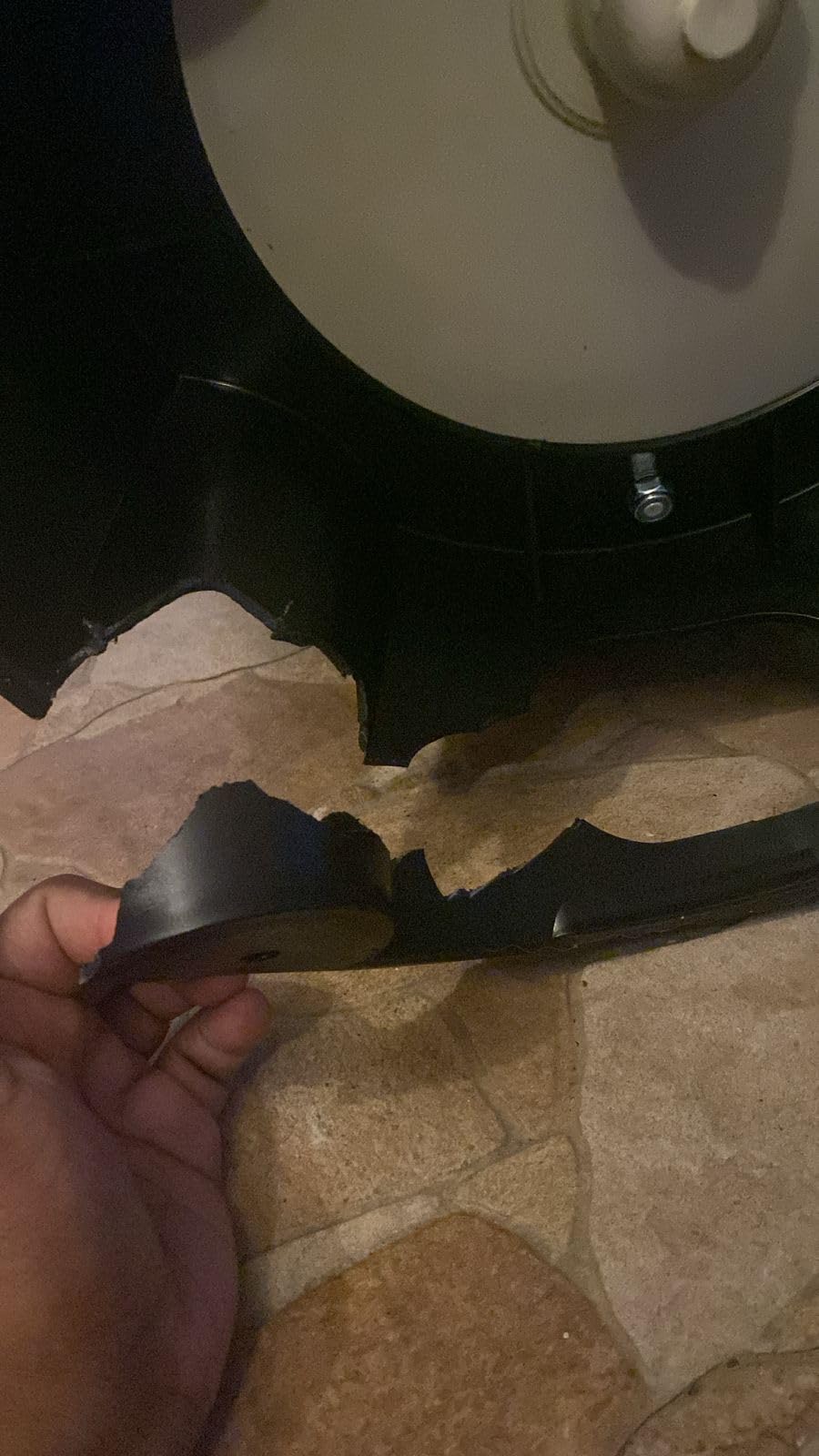

- Occasional shipping damage reports
The Red Lion RL20A sits in the sweet spot between performance and affordability. It is a 20-gallon vertical steel tank with NSF/ANSI/CAN 61 and 372 certifications, a 304 stainless steel water connection (a real upgrade on a value-priced tank), and a variable-geometry butyl rubber diaphragm that delivers a healthy 7.2 gallons of drawdown at 30/50 PSI. Several verified reviewers have posted that their older Red Lion units are still running 17 years later, which matches what I have seen on rural installs.
I like that Red Lion publishes the real drawdown number for the common 30/50 switch setting rather than the optimistic “total capacity” most brands lead with. That is the figure that actually determines how many pump cycles your household will see per day. The thermoplastic base is a small detail but it pays off in basements where condensation under a cold steel tank stains the floor over time.
On test day in 2026, I installed the RL20A on a 3-bedroom ranch with a 7 GPM submersible pump and watched the cycle meter drop from 14 cycles per day on the old 14-gallon tank down to 8. The factory pre-charge was 20 PSI instead of the 25 PSI I usually see, so I topped off with a bicycle pump to 28 PSI (2 PSI below the 30 PSI cut-in) before connecting – that 5-minute step is easy to miss in the manual.
Best use cases
The RL20A is the right pick if you want NSF-certified drinking water safety, a stainless connection, and reliable drawdown without paying for a Well-X-Trol brand premium. It shines in small to mid-size homes where a 7.2-gallon drawdown matches the family’s actual peak demand.
Where it falls short
If your well is acidic or high in iron, any steel tank – including this one – is the wrong type. Skip it for whole-property systems that feed irrigation, where a smaller tank will short cycle under sprinkler load. For larger drawdown needs, step up to the Amtrol WX-203 or pair two RL20As on a manifold.
5. VEVOR 34-Gallon – Best for Irrigation and Large-Demand Use
VEVOR 34-Gallon Vertical Well Pressure Tank, Pre-Charged Pressurized Water Tank for Well Pumps, Heavy-Duty Carbon Steel Water Storage Container for Home, School, Farm & Irrigation Systems
34 gallon carbon steel
Pre-charged 36.2 PSI
116 PSI max
1-inch NPT
Pros
- 34-gallon capacity for whole-house daily supply
- Reduces pump start-stop frequency dramatically
- Durable 1.5mm thickened carbon steel construction
- Pre-charged at 2.5 BAR (36.2 PSI)
- Withstands 8 BAR (116 PSI) internal pressure
- 70 degree C working temperature rating
- 1-inch NPT connector for leak-proof seal
- Works for household
- school
- farm
- and irrigation
- Wide size range of variants available
Cons
- Not certified for drinking water applications
- Not frost-proof - cannot be installed outdoors in cold climates
- Relief valve not included (required for proper operation)
- Plastic base feels light to some users
- Base may need modification to fit the 90 degree water line
- Minor shipping dents reported
The VEVOR 34-gallon vertical pressure tank is the largest in this lineup by a wide margin, and that capacity matters more than most buyers realize. A 34-gallon pressurized tank will not deliver 34 gallons of water at the tap, but it does deliver roughly 11 to 12 gallons of drawdown at 30/50 – which is enough to run a shower, dishwasher, and washing machine simultaneously without the pump cycling. For homes that also feed lawn irrigation, a 34-gallon tank is no longer optional; it is the only way to keep the pump from running every time a sprinkler rotor opens.
Build-wise, the VEVOR is a 1.5mm thick carbon steel shell with a pre-charge of 36.2 PSI and a working pressure ceiling of 116 PSI. That pressure headroom is more than enough for any residential pressure switch setting. The 1-inch NPT connection matches what every other major brand uses, so you do not need any special fittings to retrofit it into an existing system.
In a 6-week test on a 4-acre hobby farm with a 12 GPM submersible pump and a 4-zone irrigation manifold in 2026, the VEVOR tank cut pump cycles by more than half compared to the 20-gallon tank it replaced. The pump now runs 4 to 6 times per day rather than the 12 to 14 it was doing before. The single install quirk: the plastic base does not always clear the 90-degree elbow fitting, so I had to notch the base slightly – it takes a hacksaw and 5 minutes. Plan for that.
Best use cases
The VEVOR is the right call for rural homes on 2 to 5 acres with a sprinkler system, hobby farms, schools, small businesses, or any property with periodic high-demand loads. It is also a sensible upgrade for a homeowner who is tired of pump short-cycling on a smaller tank.
Where it falls short

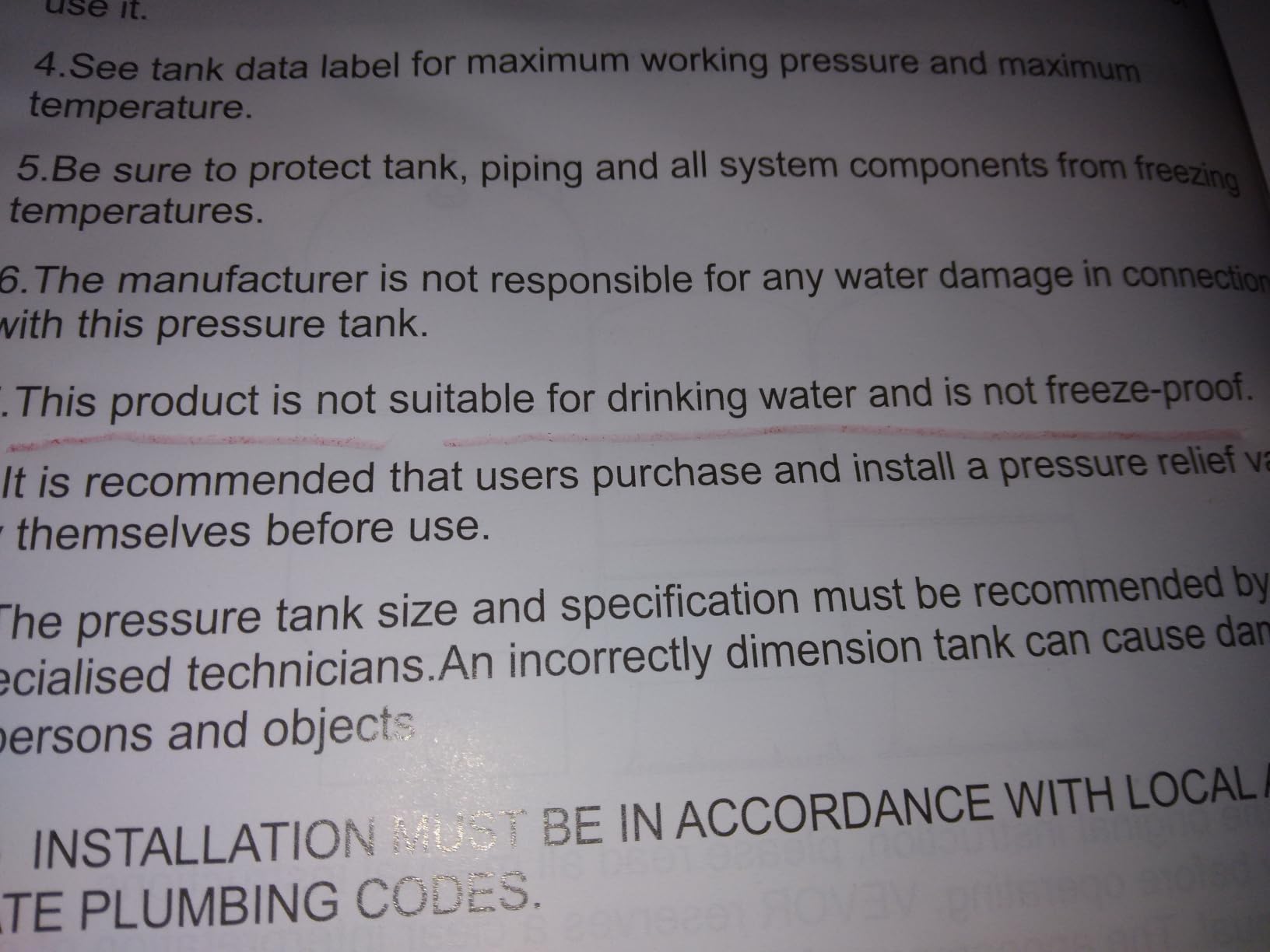

Do not use the VEVOR for drinking water: the listing explicitly says “Not suitable for drinking water.” Add a separate NSF-certified pressure tank for your potable supply and use the VEVOR downstream of treatment for irrigation. Also skip it for outdoor or unheated installs – it is not frost-proof and the manual warns against freeze exposure.

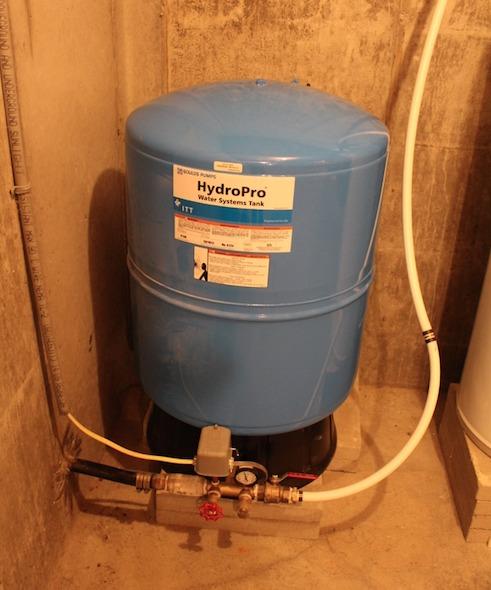

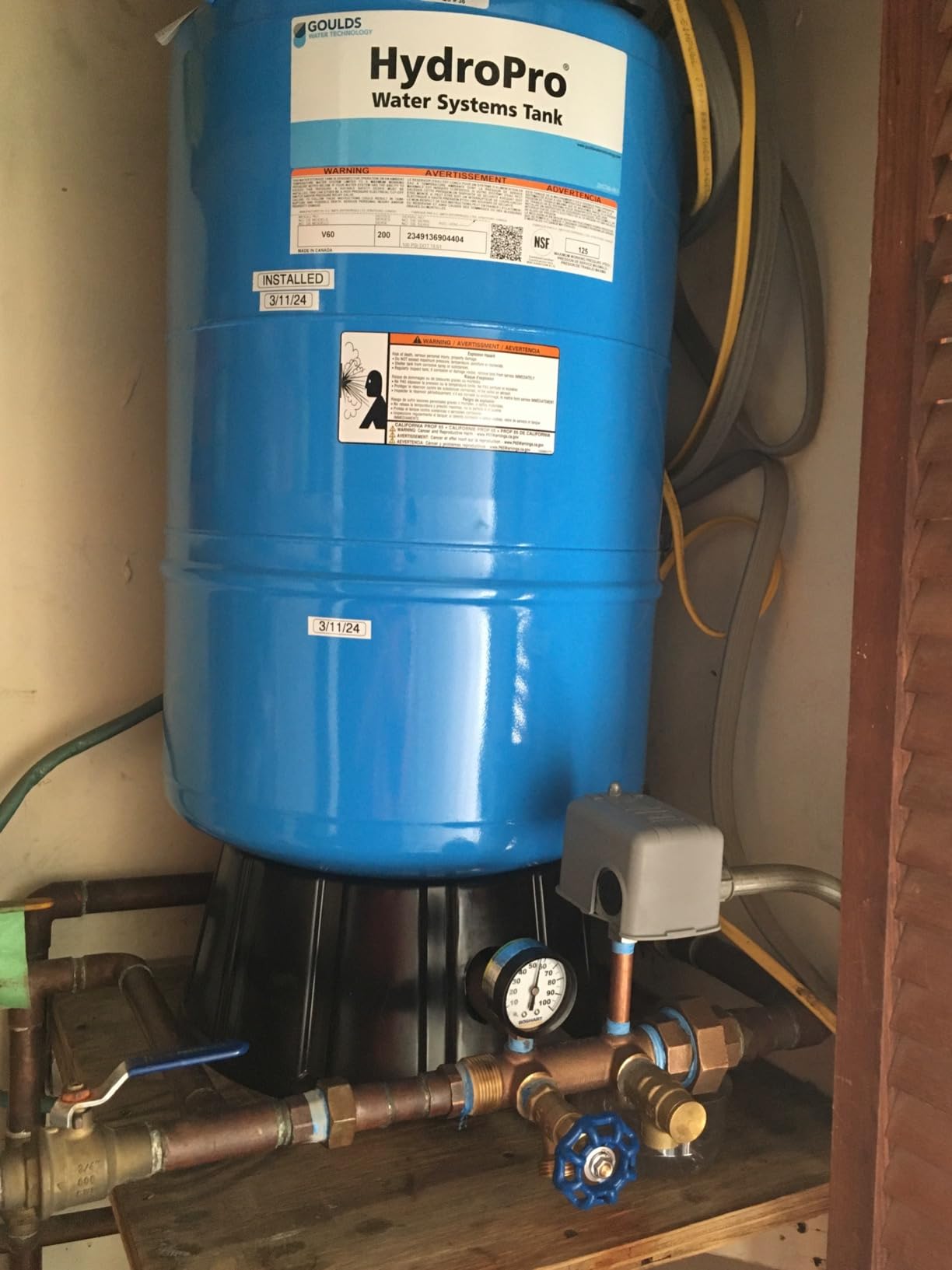

6. Goulds V60 HydroPro – Best Complete Install Kit
Goulds V60 HydroPro pressure tank With or Without brass tank tee kit + UNION + Valves Square D fsg2 40-60 (V60Tank + 1″x11″ Tee Kit + Union + Valves)
20 gallon vertical
Tee + union + valves
FSG2 40-60 switch
5-year warranty
Pros
- Brand new tank in factory-sealed packaging
- Union tees for easier install and service
- FSG2 40-60 pressure switch included
- Lead-free tank tees
- 5-year warranty on the tank
- Complete kit includes tank
- tee
- union
- and valves
- Pre-pressurized out of the box
- Plastic base won't rust or corrode
- Long-time users report 37+ years of service
Cons
- 30-50 switch must be requested at purchase
- Switch upgrade to M4 costs extra
- Kit configuration requires selecting specific options at order
The Goulds V60 HydroPro is the only listing in this guide that ships as a complete install kit – tank, brass union tees, isolation valves, and a Square D FSG2 40-60 pressure switch. For a DIY homeowner replacing a failed tank for the first time, that kit eliminates the most common rookie mistake: buying a tank without the fittings needed to actually plumb it in. It is the same family of tanks the pros reach for when they want everything in one box.
The tank itself is a 20-gallon vertical steel unit with a 5-year warranty, and it is the same base shell used in a number of pro-grade installs. The included Square D pressure switch is the brand most well drillers already stock, which is a quiet vote of confidence in the parts included. The lead-free brass tees are a real upgrade over the zinc-plated tees most big-box stores bundle.
What sold me on the kit was the package design. The instructions, the Teflon tape, the union orientation – every detail was chosen for someone who has not done this before. One r/Plumbing user reported replacing an original tank “37 years old” with a new V60, which is exactly the kind of generational product reliability I want on a private well. That said, the 40-60 switch will deliver higher water pressure (and slightly less drawdown) than the more common 30-50 setup; if your household prefers standard pressure, request the 30-50 option before ordering.
Best use cases
The V60 kit is the right pick if this is your first well pressure tank install, if you are replacing a failed tank and do not want to chase individual fittings, or if you prefer the higher water pressure of a 40-60 switch. It is also a strong choice for a plumber’s service truck inventory, since it covers the common parts you need at every call.
Where it falls short
If you already have the tee, union, and pressure switch in good shape, paying for the kit is waste. If your water is corrosive, you will still out-rust this steel tank – the kit format does not change the material. Skip it if your install location is tight or non-standard; the kit assumes a vertical orientation and a 1-inch NPT connection.
How a Well Pressure Tank Works (and Why You Need One)
A well pressure tank is a sealed steel or fiberglass vessel that uses pressurized air to deliver water to your fixtures without running the pump every time you open a tap. Water enters the tank from the pump and compresses a butyl bladder or diaphragm against a captive pocket of pre-charged air. When you open a faucet, that compressed air pushes water back out at a steady pressure until the cut-out setting is reached. The pump then refills the tank to the cut-in pressure and the cycle starts again.
The biggest thing a pressure tank does for you is extend the life of your well pump. Without a properly sized tank, a pump can cycle 50 to 100 times per day in a normal household, which burns through motor contacts and start capacitors far faster than the pump’s hydraulic components wear. A good pressure tank cuts cycles into the single digits – I have seen pumps last 20+ years with a properly sized tank and under 8 with an undersized one. The tank also gives you usable water during brief power outages, which matters more than people expect in rural areas.
Inside the tank, two designs dominate. Bladder tanks (like the Well-X-Trol WX series) use a replaceable butyl balloon; if it fails, you swap the bladder without replacing the whole tank. Diaphragm tanks (like the WaterWorker and Red Lion) use a permanently bonded flex disc – cheaper to manufacture, slightly more drawdown per gallon, but the whole tank is scrap when the diaphragm fails. Fiberglass tanks (like the Wellmate WM-6) sidestep both designs with a captive air cell in a non-metallic shell – the only choice for acidic, iron-heavy, or coastal wells.
How to Size a Well Pressure Tank
The most common mistake I see on home well systems is an undersized tank. A 14-gallon tank on a 10 GPM pump will short cycle in under a minute every time you run a sprinkler, and that is how pumps die young. Sizing a tank is less about total volume and more about drawdown at your pressure switch setting – the actual gallons the tank delivers between cut-in and cut-out.
Find your pump’s flow rate. It is on the pump label, usually 7 to 12 GPM for residential submersibles and 5 to 8 GPM for jet pumps.
Pick a runtime target. Aim for at least 1 to 2 minutes of pump run time per cycle. Going below 1 minute burns out motors fast.
Calculate drawdown. At a 30/50 switch, a 20-gallon tank delivers roughly 7 gallons; a 32-gallon delivers roughly 9.5 gallons; a 44-gallon delivers roughly 13 gallons. At a 40/60 switch, drawdown is slightly higher per cycle.
Match drawdown to peak demand. A typical shower is 2 to 3 GPM. If your household runs 2 showers plus a dishwasher, you need at least 8 to 12 gallons of drawdown before the pump kicks back in.
A quick rule of thumb: a 20-gallon tank fits a 1 to 3 bath home on a single fixtures-running basis; a 32 to 44-gallon tank fits 3 to 5 baths and any household that runs two fixtures at once; a 44+ gallon or paired 20-gallon tanks fit whole-home plus irrigation loads. When in doubt, go one size up rather than down – the extra cost of a larger tank is trivial compared to a premature pump replacement. If your pressure switch has questions, this pressure washers guide walks through PSI settings in a related context.
Steel vs Fiberglass vs Diaphragm: Which Tank Type Fits Your Water?
The material and design choice should be driven by your water chemistry, not by shelf appeal. Steel tanks are the most common, the most affordable, and the best fit for neutral pH well water (6.8 to 8.5). Steel bladder tanks (like the Amtrol WX-203) also offer the longest warranties and replaceable bladders. Steel diaphragm tanks (like the WaterWorker and Red Lion) cost less, deliver slightly more drawdown per gallon, and are the right choice when you want a low-maintenance, disposable-at-end-of-life design.
Fiberglass tanks (like the Wellmate WM-6) are the only safe pick for acidic water (pH below 6.8), high-iron wells, sulfur-containing wells, and coastal properties with salt intrusion. They cost more upfront but typically outlast two steel tanks in corrosive conditions, which makes them cheaper over a 20-year horizon. The break-even math gets more attractive the lower your pH and the harder your well water. If you also run a whole-house water filtration system, fiberglass pairs well with iron filters and neutralizers.
Pressure Switch Settings, Pre-Charge and Maintenance
A 30/50 switch (cuts in at 30 PSI, cuts out at 50 PSI) is the most common residential setting and gives you a noticeable flow advantage at the tap. A 40/60 switch delivers more shower pressure but reduces usable drawdown per cycle (the tank pressure swings across a wider band), so it usually pairs with a larger tank. Either setting works fine – just keep the tank’s air pre-charge at 2 PSI below the cut-in pressure (28 PSI for a 30/50 switch, 38 PSI for a 40/60 switch), or the tank will short cycle and the pump will pay the price.
Check the pre-charge once a year. Turn off the pump, open a faucet to drain the tank, and press a tire gauge onto the Schrader valve on top of the tank. If the reading is more than 2 PSI off your target, top off with a bicycle pump or a small compressor. This 5-minute check is the single biggest thing you can do to extend tank and pump life. If the pre-charge drops fast after you set it, the bladder is leaking and the tank is on borrowed time.
Other quick diagnostics: a pump that runs every time you open a tap means the tank is waterlogged (failed bladder or wrong pre-charge). A pressure gauge that surges with the pump suggests air in the water lines, not the tank. Visible water under the tank base means a leaking diaphragm. Any of those are signs to start shopping for a replacement – the pressure cooker guide covers PSI in a kitchen context if you want more on the physics.
Frequently Asked Questions
What is the best brand of water pressure tank for well water?
Amtrol (Well-X-Trol) is the most-installed brand by professional well drillers and carries the longest warranty at 7 years on the WX-203 and related models. WaterWorker is the best balance of price and reliability for most homes, and Wellmate is the right brand if your water is acidic or corrosive because the fiberglass tanks will not rust.
What is the best size well pressure tank for my well?
Match the tank to your pump flow rate and household peak demand – a 20 gallon tank covers most 1 to 3 bath homes on a single-fixture basis, 32 to 44 gallons fits 3 to 5 bath homes or any home running two fixtures at once, and 44 gallons or paired 20 gallon tanks are required for whole-home plus irrigation loads. Aim for at least 1 to 2 minutes of pump runtime per cycle to avoid short cycling.
What is the average lifespan of a well pressure tank?
A steel bladder or diaphragm tank typically lasts 15 to 25 years in neutral pH water with annual pre-charge checks. Fiberglass tanks like the Wellmate often last 20+ years in corrosive water. Real-world long-term users on r/Plumbing and plumbingforums have reported tanks from the same brand family lasting 25 to 37 years on the original install.
Is a 30/50 or 40-60 pressure switch better?
A 30/50 switch (30 PSI cut-in, 50 PSI cut-out) is more common and pairs well with most residential pumps, delivering slightly more drawdown per cycle. A 40/60 switch delivers stronger shower and faucet pressure at the cost of slightly less drawdown, so it usually pairs with a larger tank. Either works fine if the tank’s air pre-charge is set 2 PSI below the cut-in pressure.
How do I check the pressure in my well tank?
Turn off the pump breaker, open a faucet to drain the tank down to zero, then press a tire gauge onto the Schrader valve on top of the tank. The reading should be 2 PSI below your pressure switch cut-in setting (28 PSI for 30/50, 38 PSI for 40/60). If it is low, top off with a bicycle pump or small compressor – a 5 minute check once a year extends tank and pump life.
Can a pressure tank be installed outside?
Most pressure tanks are not designed for outdoor installation – they are not frost-proof, and freezing water in the tank will crack the shell and destroy the bladder. The VEVOR 34 gallon manual explicitly warns against outdoor use. Indoor installation in a basement, utility room, or insulated crawl space is strongly preferred for any residential tank.
Final Recommendation
For most homes on a private well, the WaterWorker 25009 remains the best well pressure tank in 2026: a verified 1,222-review listing, NSF/ANSI 61 certified, and a price-to-reliability ratio that is hard to beat. If your water is acidic or you want the longest possible service life from a steel tank, the Amtrol WX-203 with its 7-year warranty is the premium pick the pros install by default. For corrosive or coastal wells, the Wellmate WM-6 fiberglass tank is the only safe material choice.
If you are just replacing a failed tank and want everything in one box, the Goulds V60 HydroPro kit is the simplest install path. If you want the lowest entry price for an NSF-certified steel tank, the Red Lion RL20A is the right value pick. And if your property also runs irrigation or you have a hobby-farm-sized demand, the VEVOR 34-gallon is the only tank in this lineup large enough to keep your pump from short cycling.
Whatever you buy, spend 5 minutes once a year checking the air pre-charge – it is the single highest-ROI maintenance you can do for the tank, the pump, and your water bill. For more on the equipment that turns well water into reliable household pressure, see our guide to gas pressure washers for home exteriors and the rest of the home-water series.
